Symptom Table

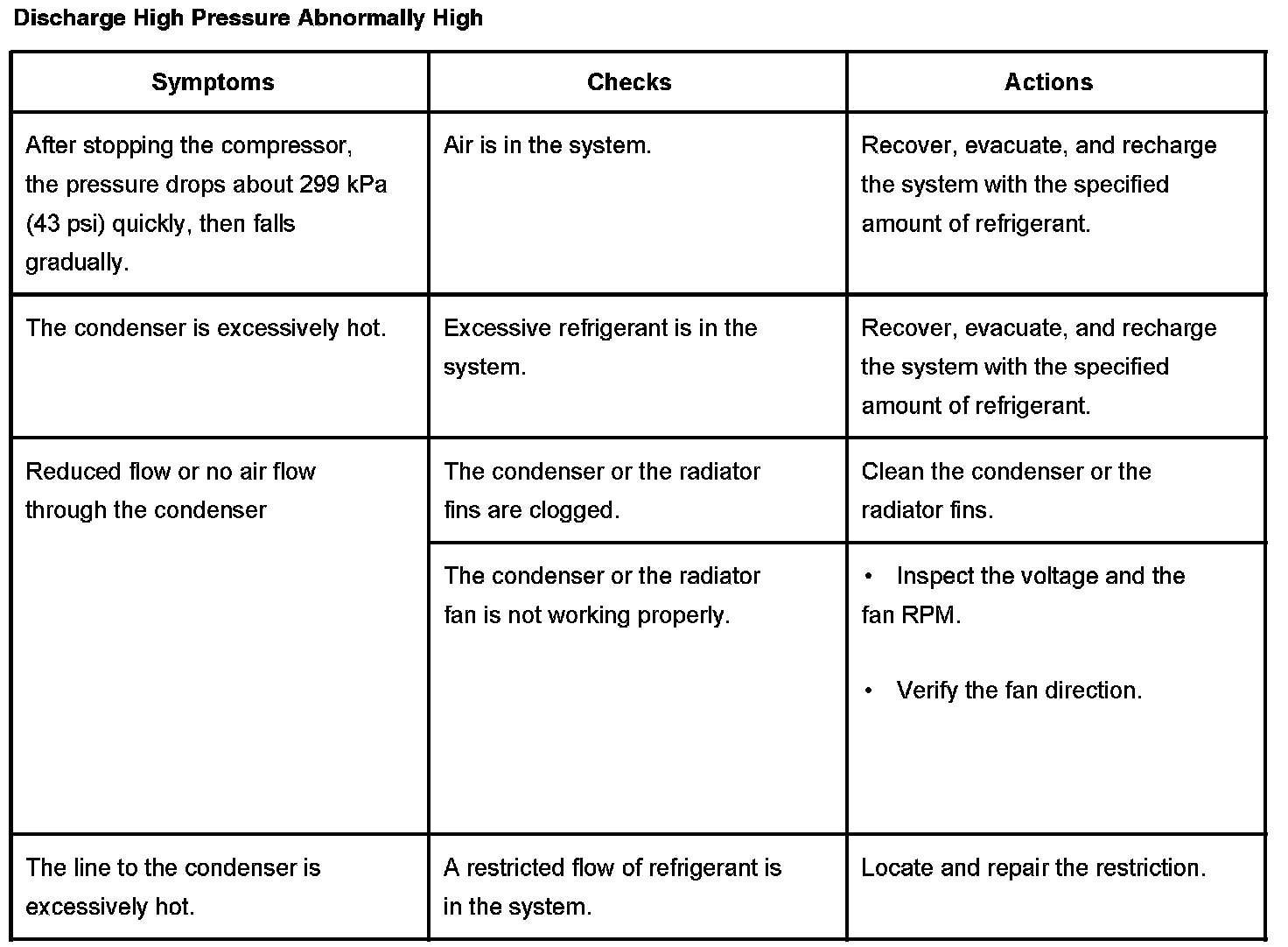

Discharge High Pressure Abnormally High:
Discharge Pressure Abnormally Low:

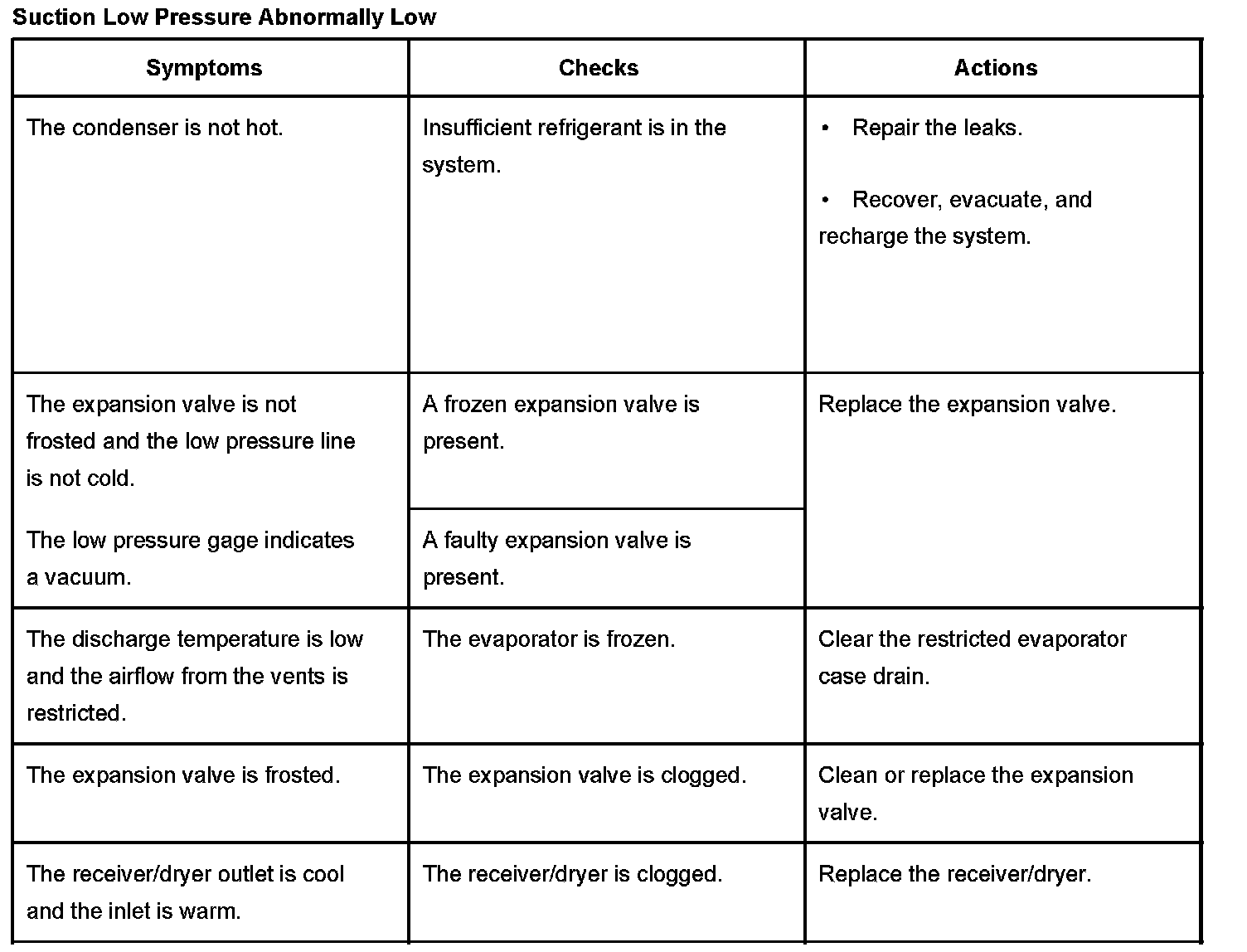

Suction Low Pressure Abnormally Low:
Suction Pressure Abnormally High:
Suction And Discharge Pressure Abnormally High Charge:
Suction And Discharge Pressure Abnormally Low:
Refrigerant Leaks:

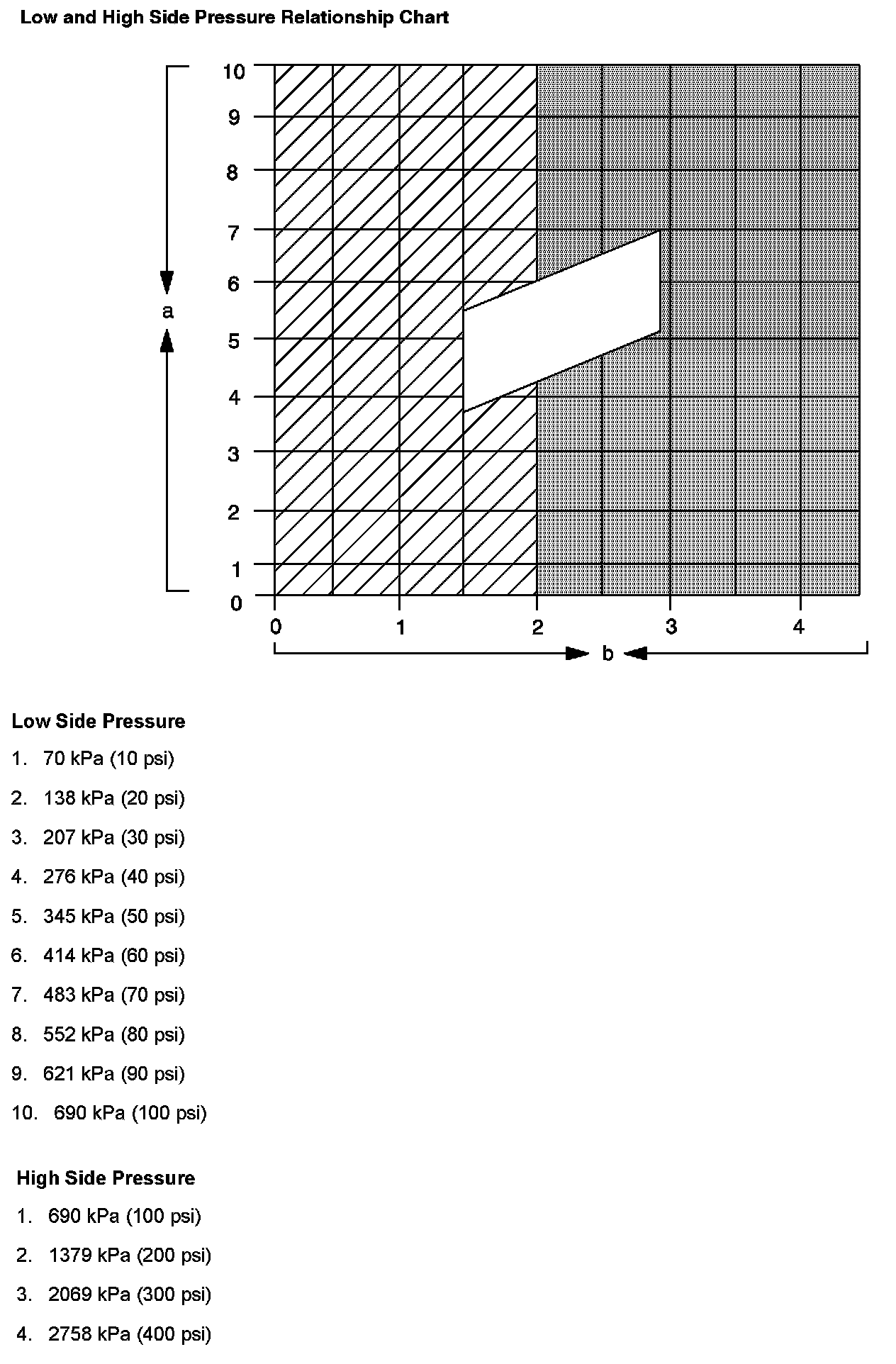

Low And High Pressure Relationship Chart:
