Vehicle Lifting: Service and Repair

LIFTING AND JACKING THE VEHICLE

CAUTION: Refer to Vehicle Lifting Caution in Service Precautions.

NOTE:
- To raise the vehicle, place the lifting equipment only at the points indicated. Failure to use these precise positions may result in permanent vehicle body deformation. Many dealer service facilities and service stations are equipped with automotive hoists that bear upon some parts of the frame in order to lift the vehicle. If any other hoist method is used, use special care to avoid damaging the fuel tank, the filter neck, the exhaust system, or the underbody.
- When you are jacking or lifting a vehicle at the frame side rails or other prescribed lift points, be certain that the lift pads do not contact the catalytic converter, the brake pipes or the fuel lines. If such contact occurs, vehicle damage or unsatisfactory vehicle performance may result.

Front Lift:

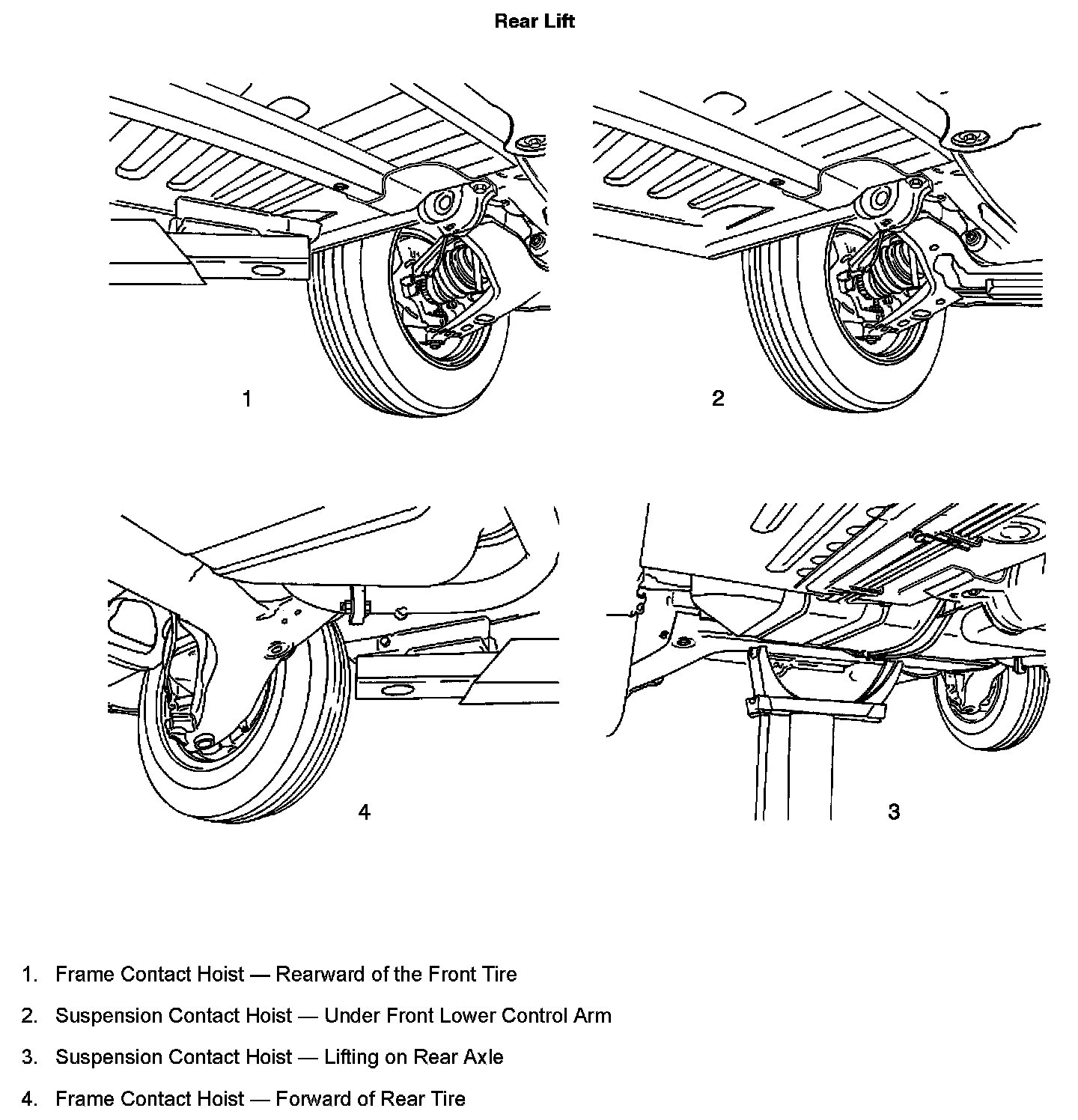

Rear Lift:

Vehicle Lifting Points
