Automatic Transmission Components

Automatic Transmission Components

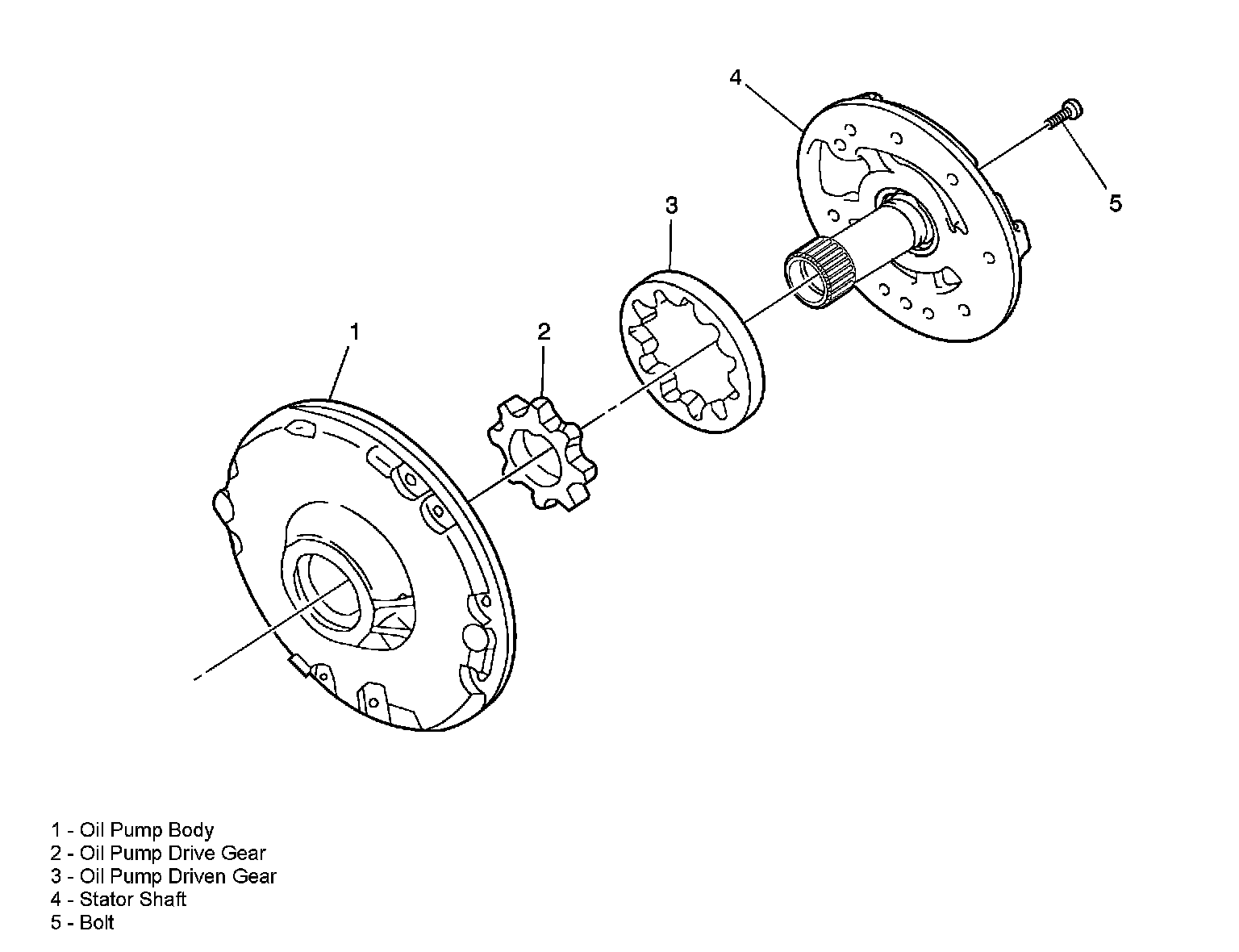

Oil Pump





Direct Clutch

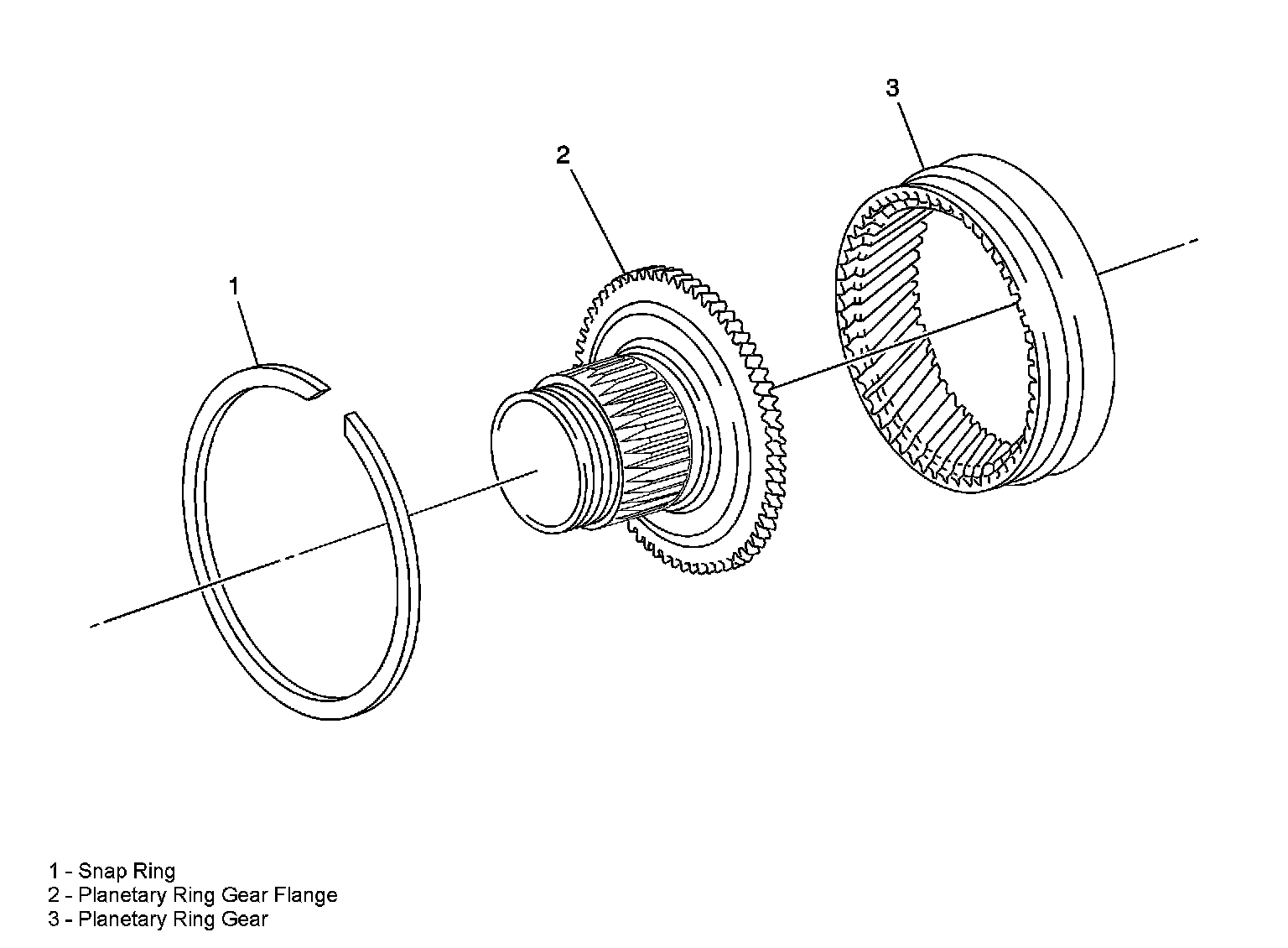

Planetary Ring Gear

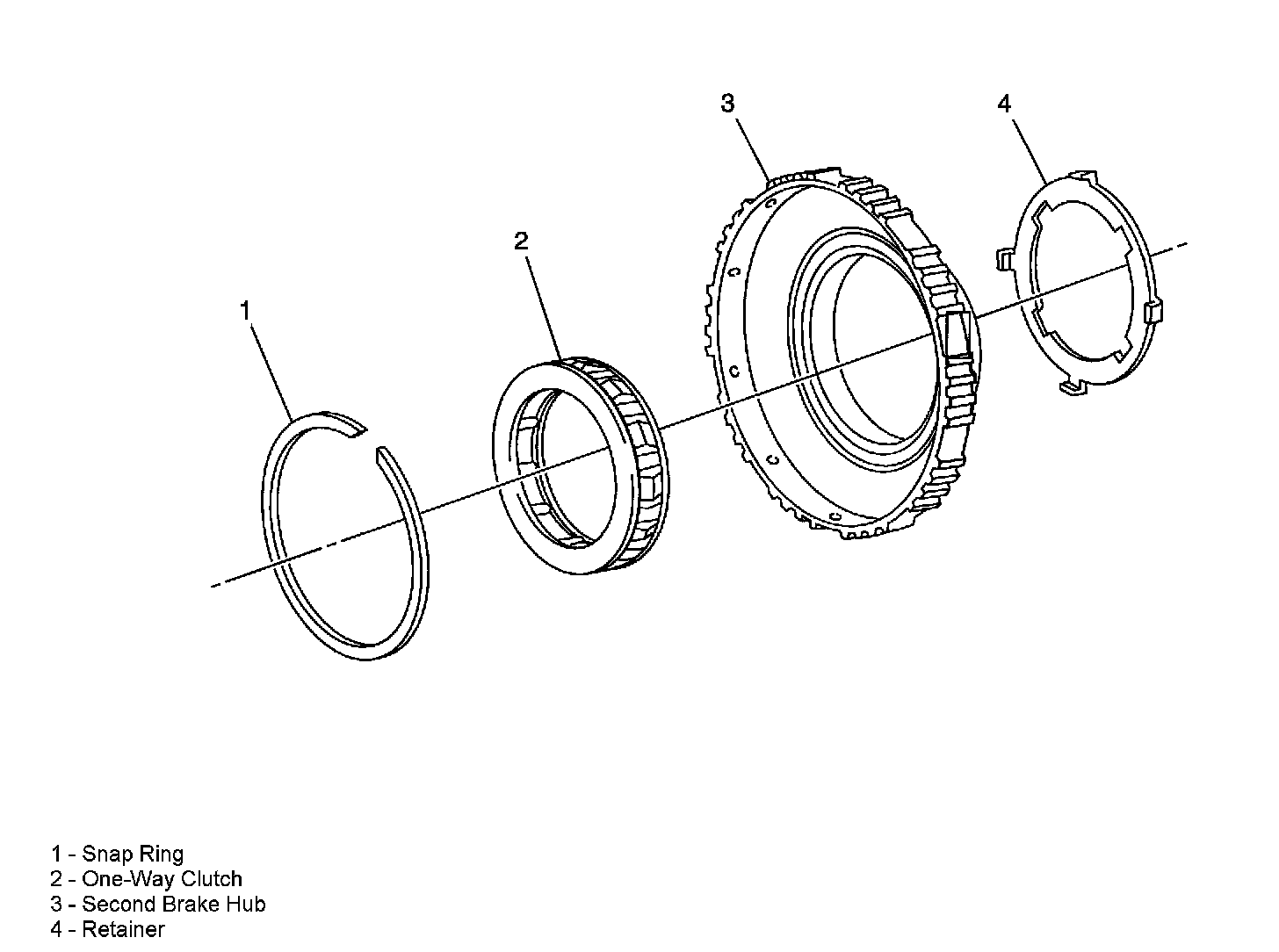

One-Way Clutch

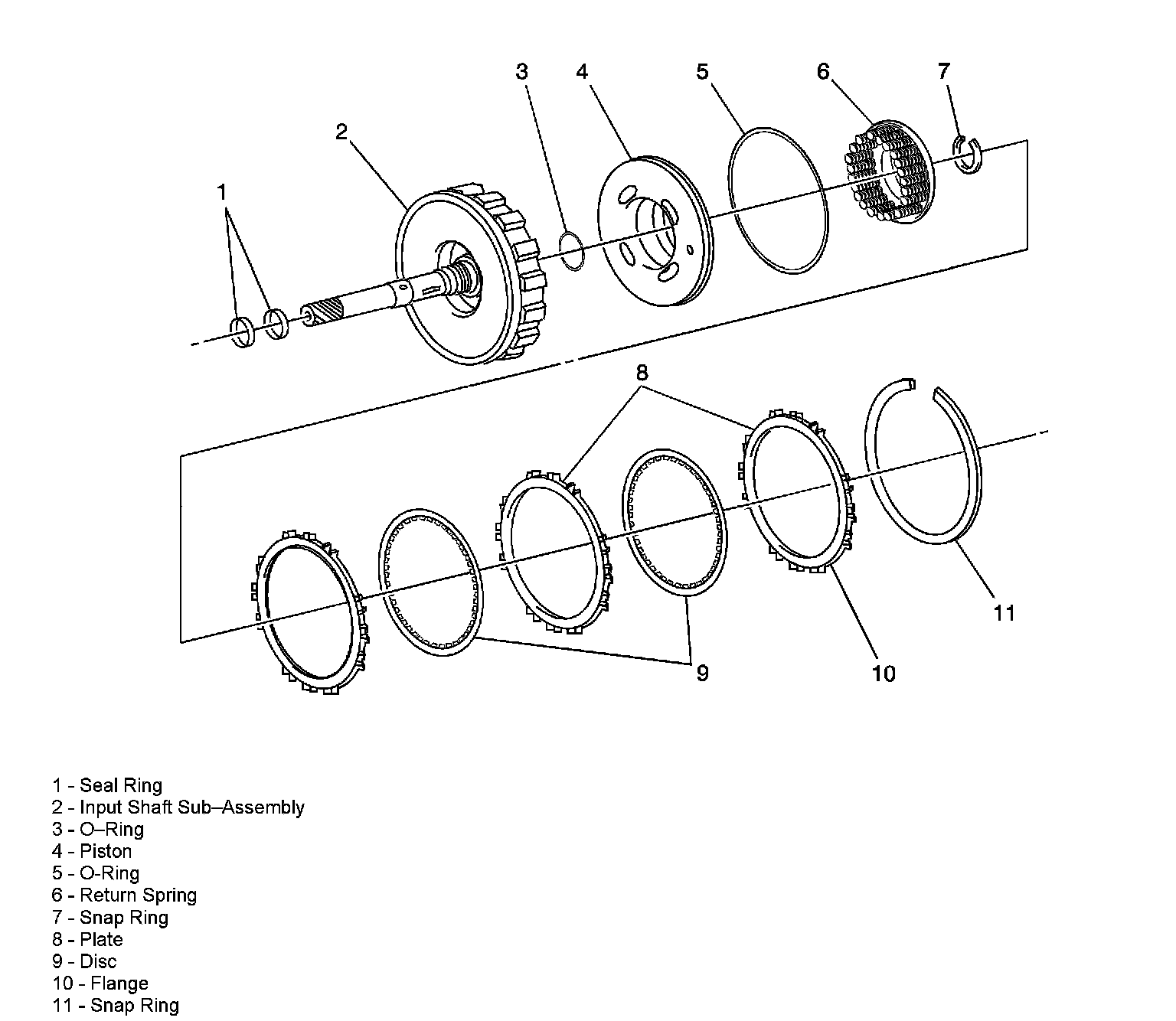

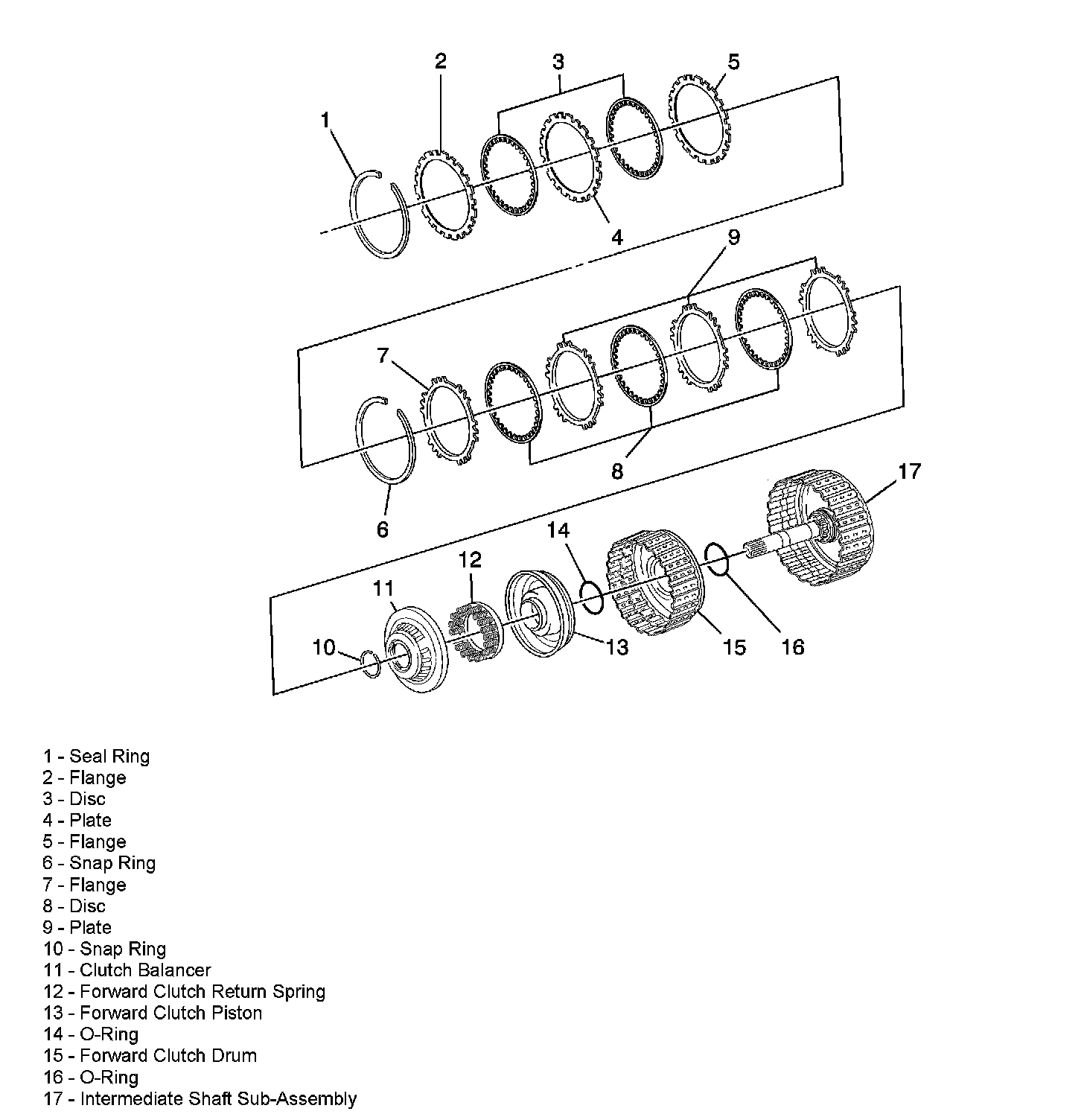

Forward and Reverse Clutch

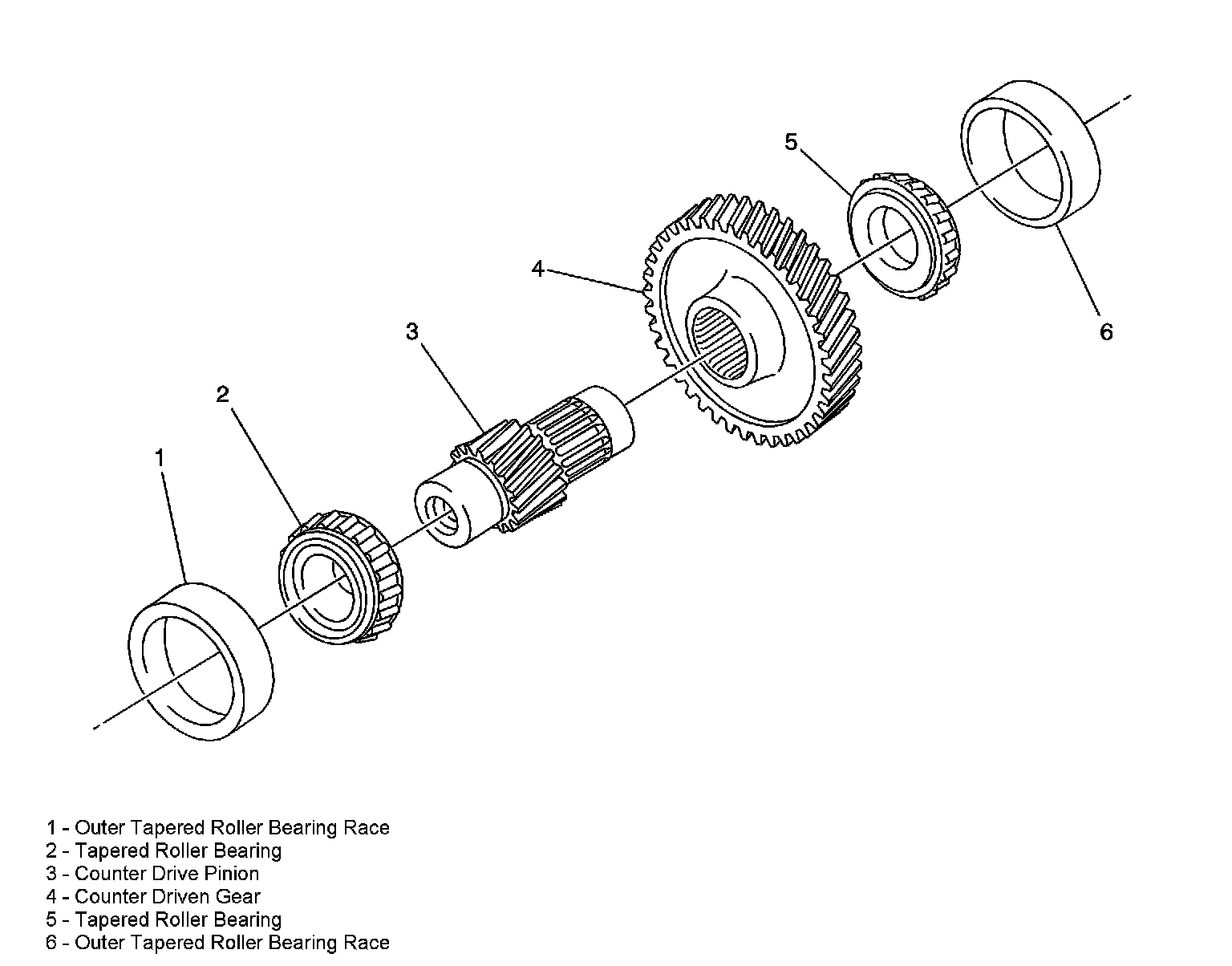

Counter Driven Gear

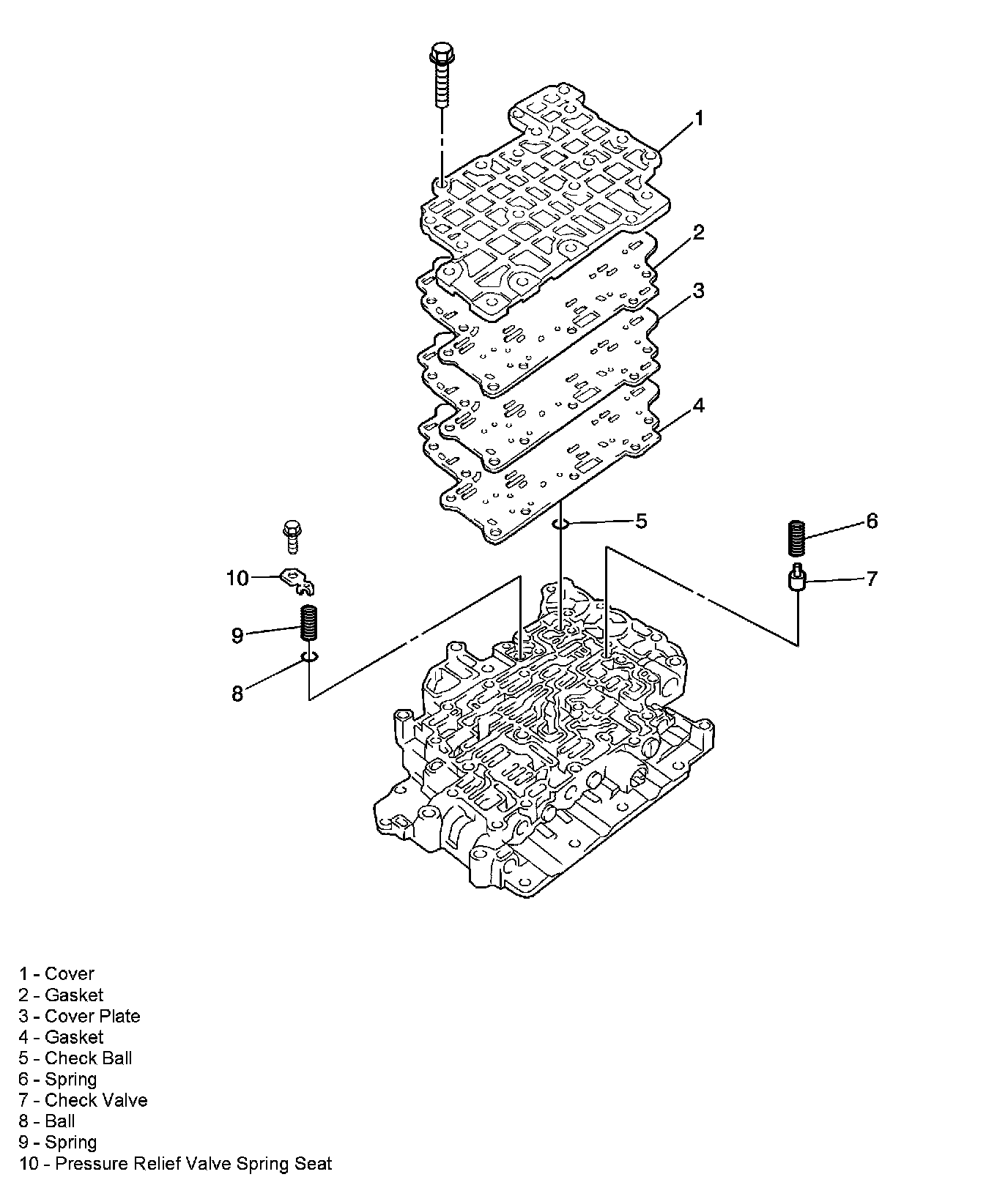

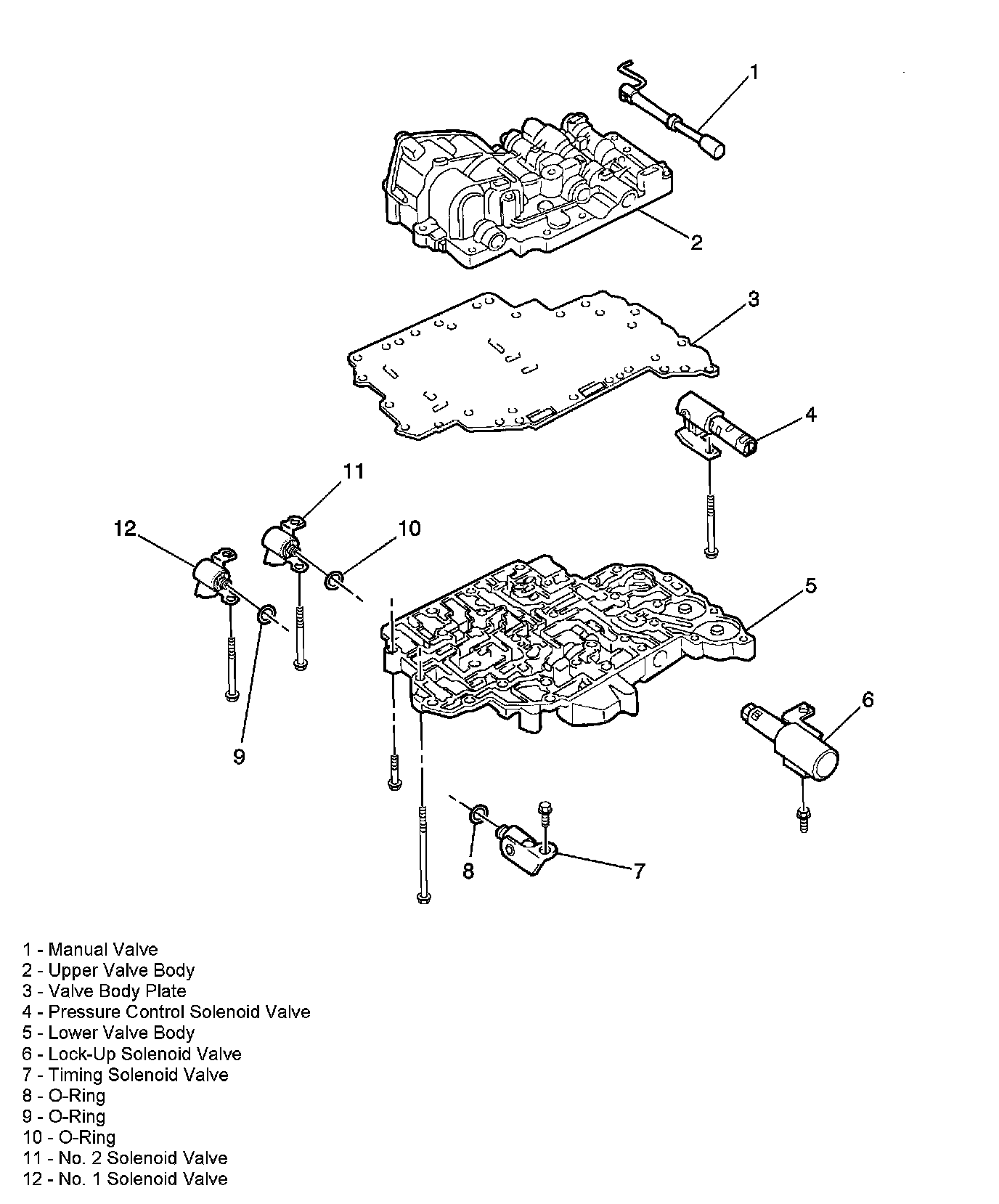

Valve Body

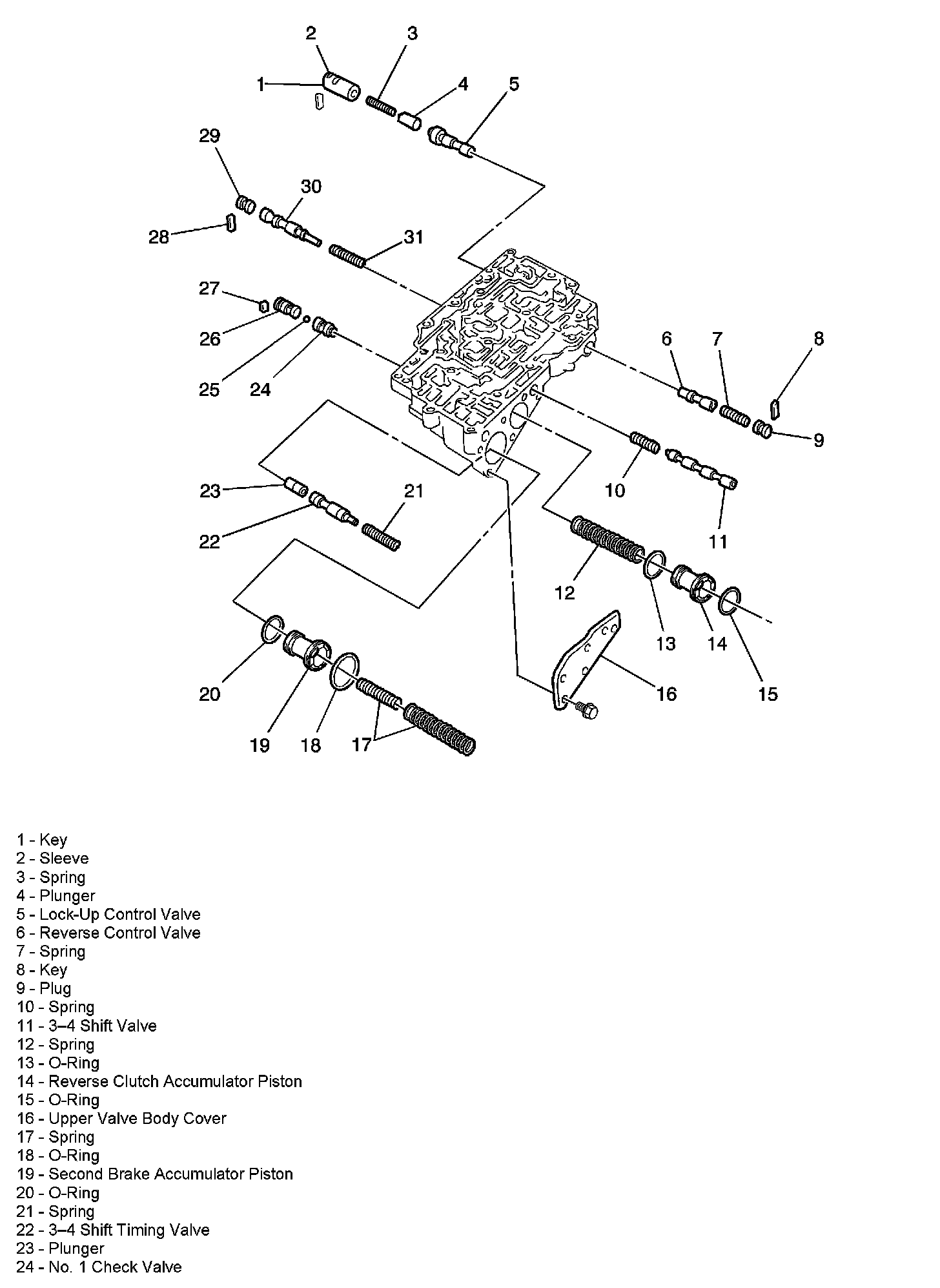

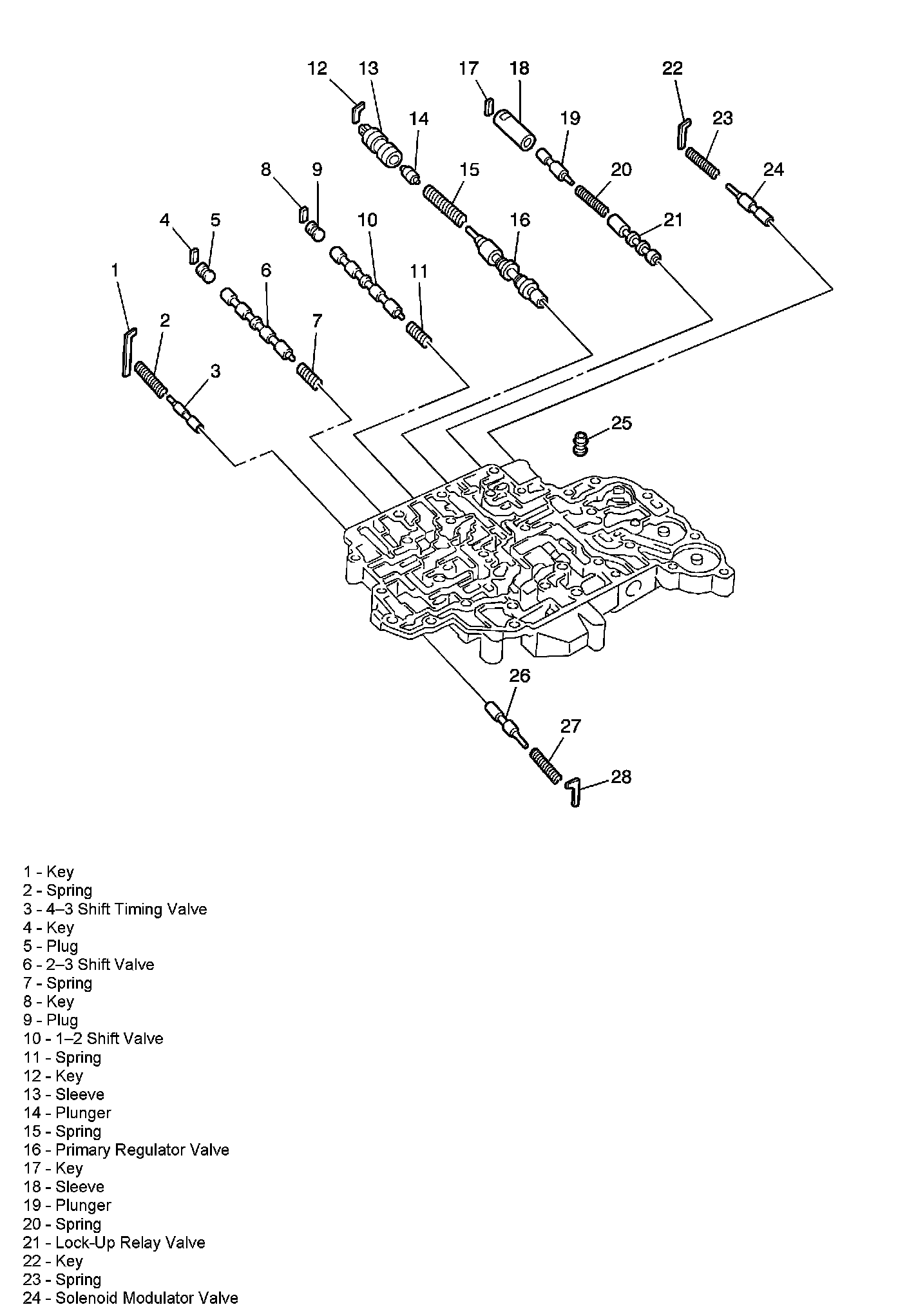

Upper Valve Body

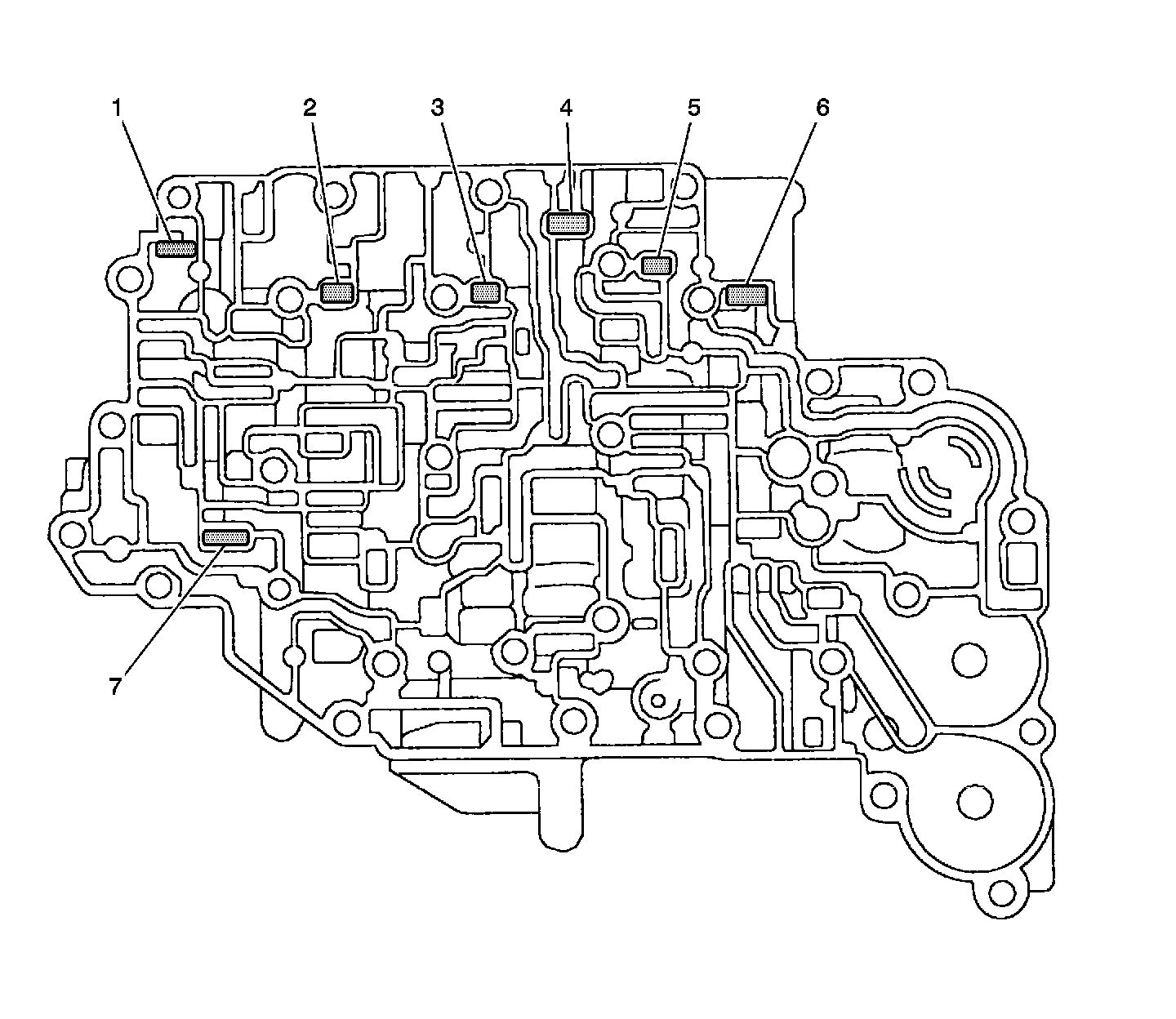

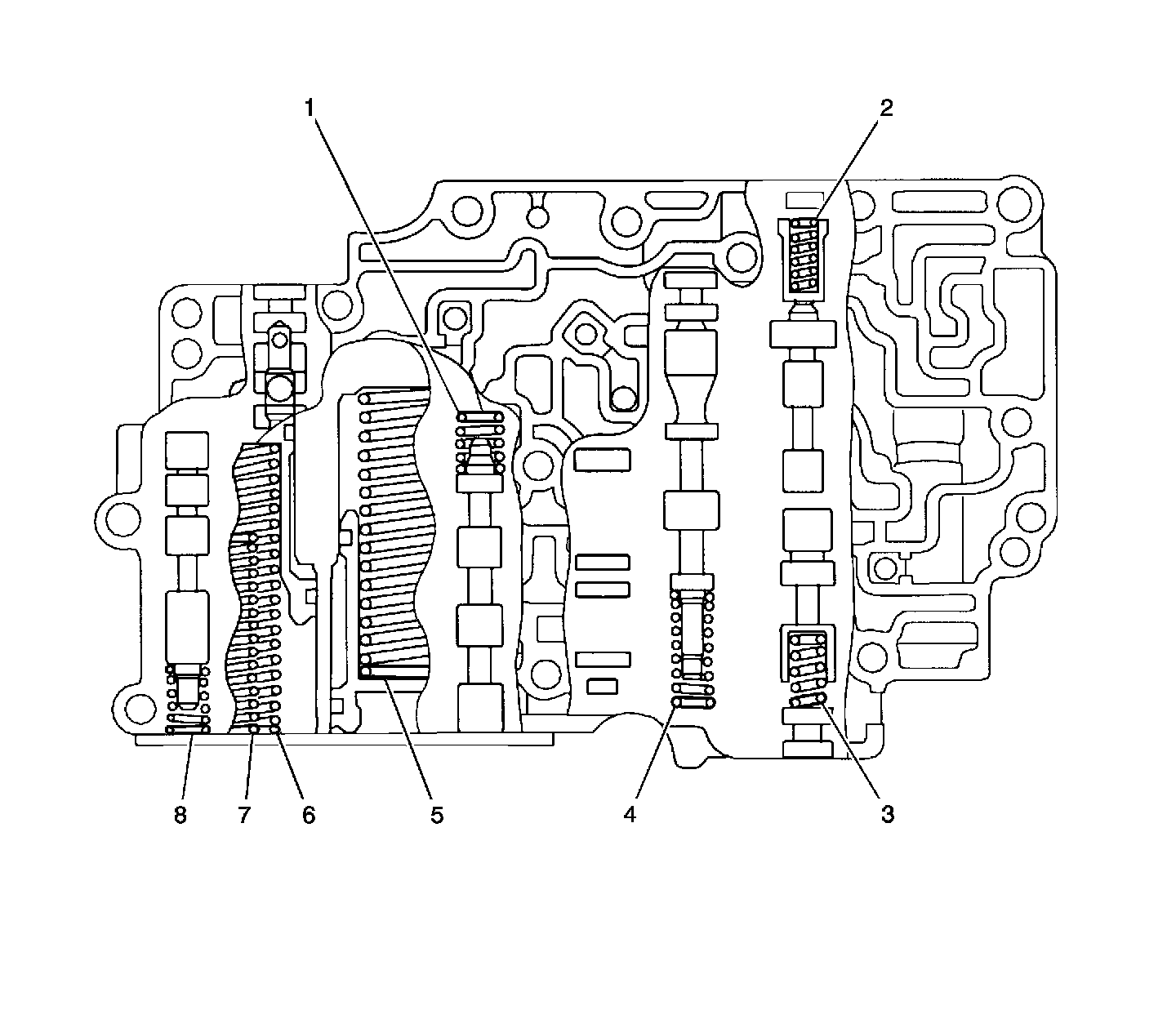

During reassembly, please refer to the spring specifications below to help you to discriminate between the different springs.

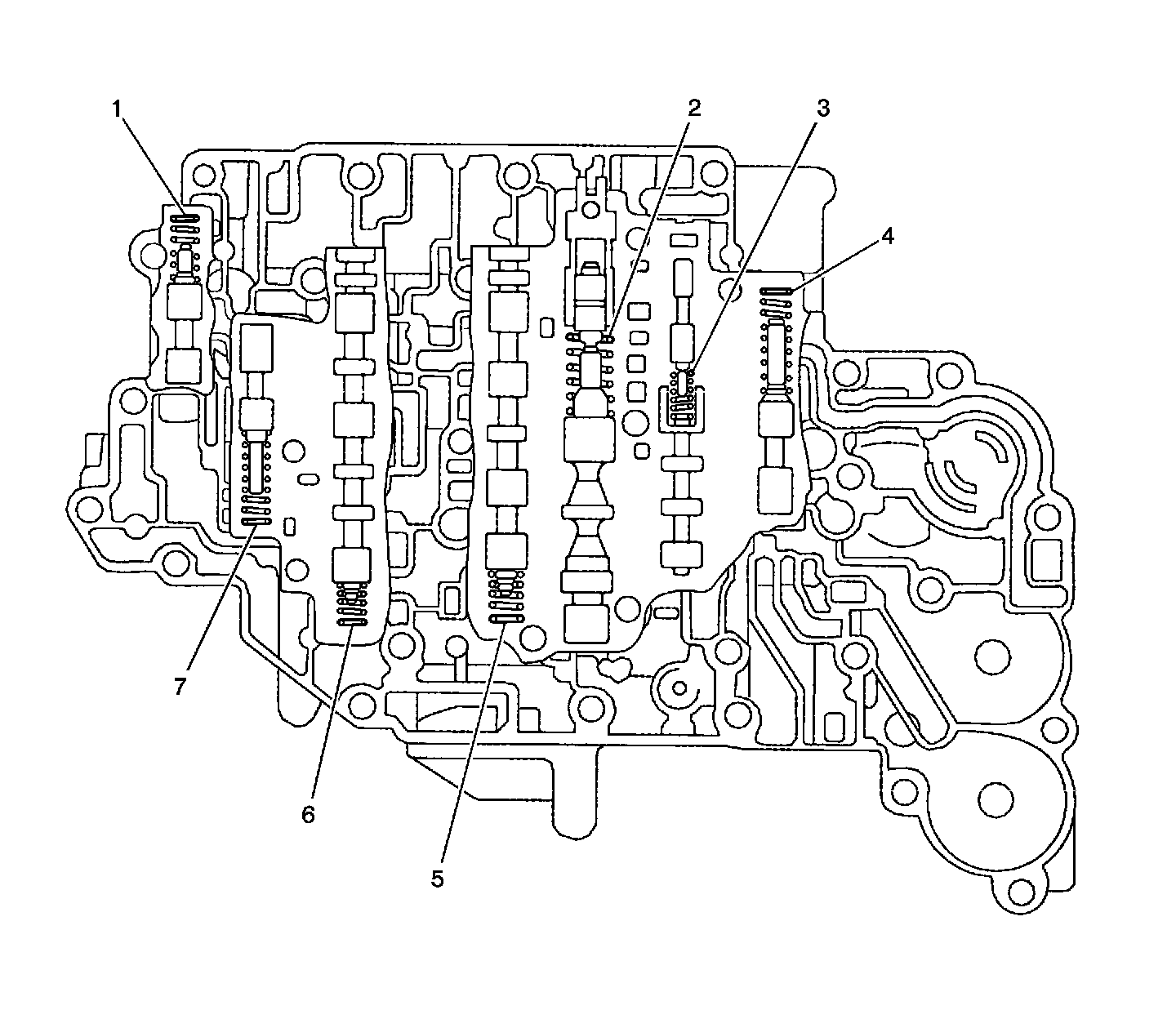

Upper Valve Body Spring








Upper Valve Body Key

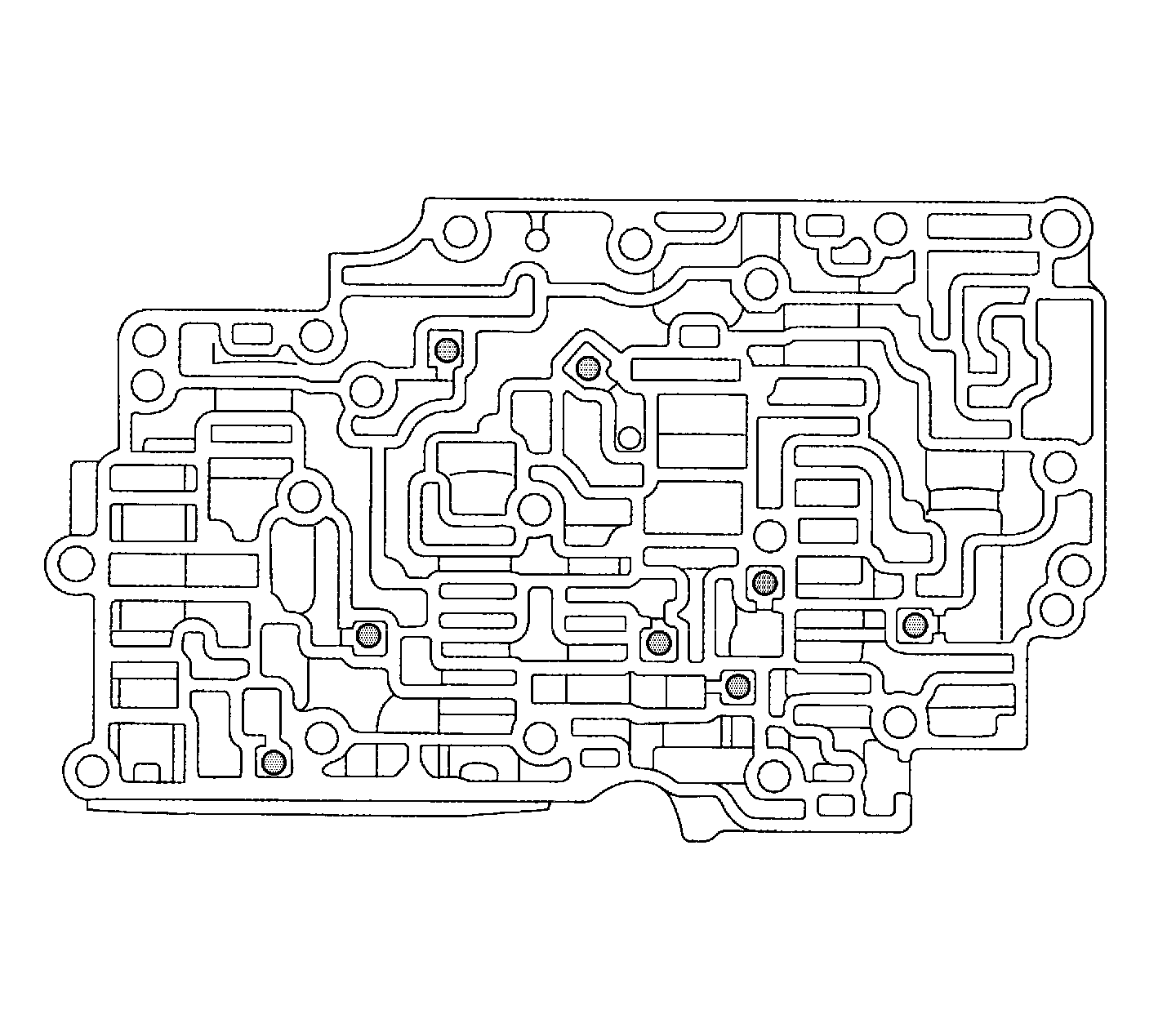

Upper Valve Body Check Ball











Lower Valve Body





Lower Valve Body Spring

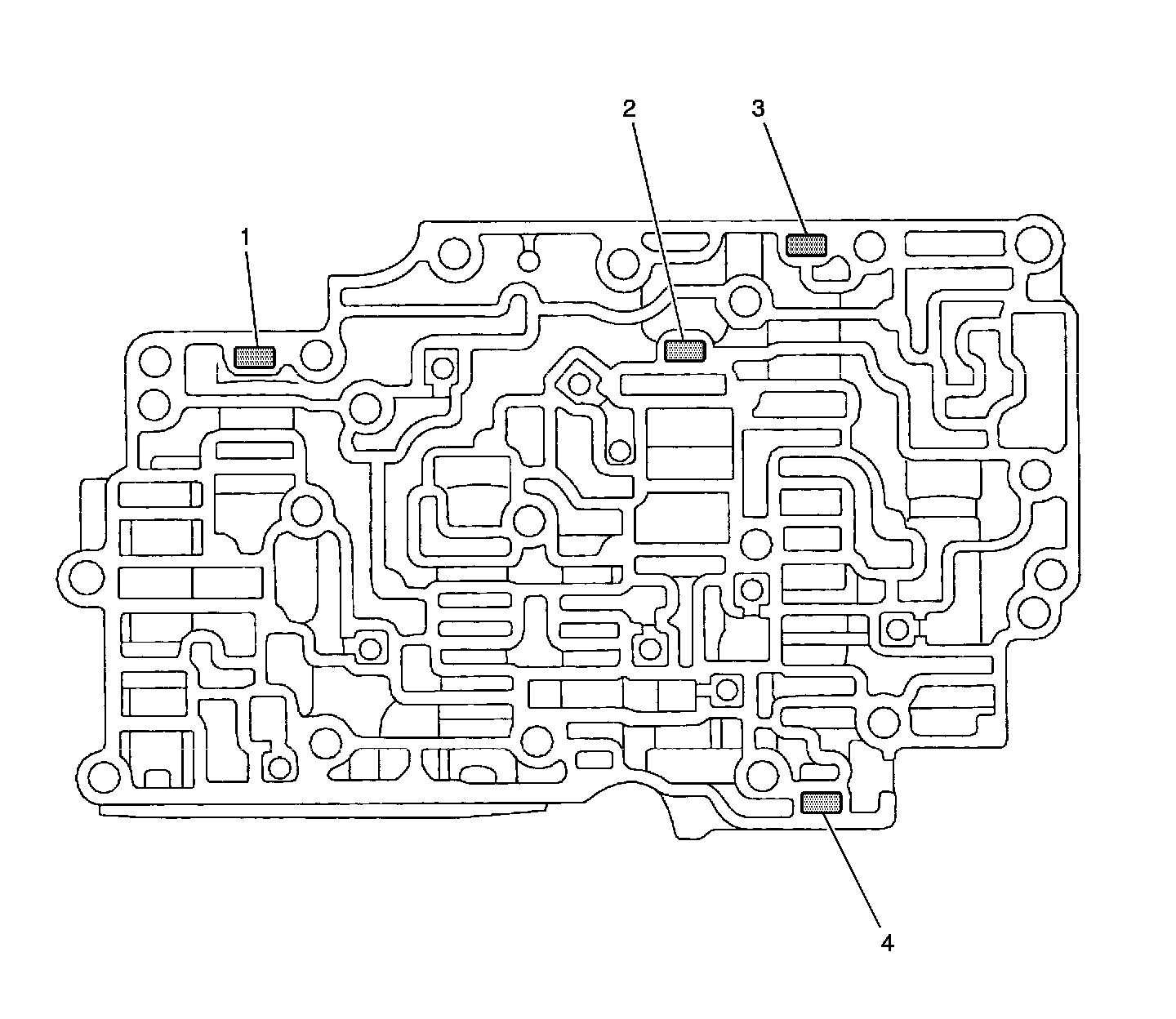

Lower Valve Body Key

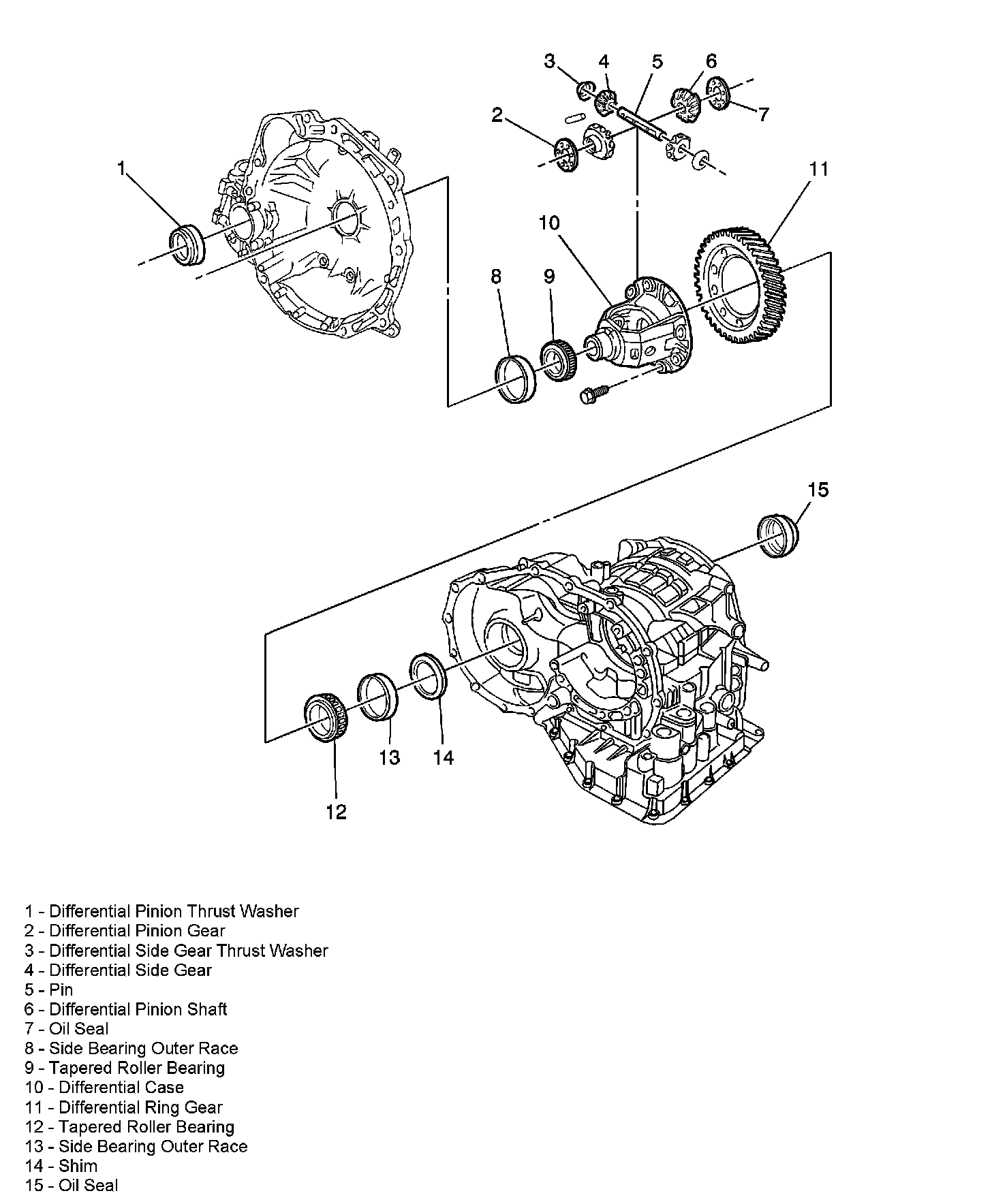

Differential Case
