Radiator Hose Replacement - Outlet (4.3L)

^ Tools Required
- J 38185 Hose Clamp Pliers

Removal Procedure





1. Drain the cooling system.
2. Using the J 38185 reposition the radiator outlet hose clamp from the radiator.

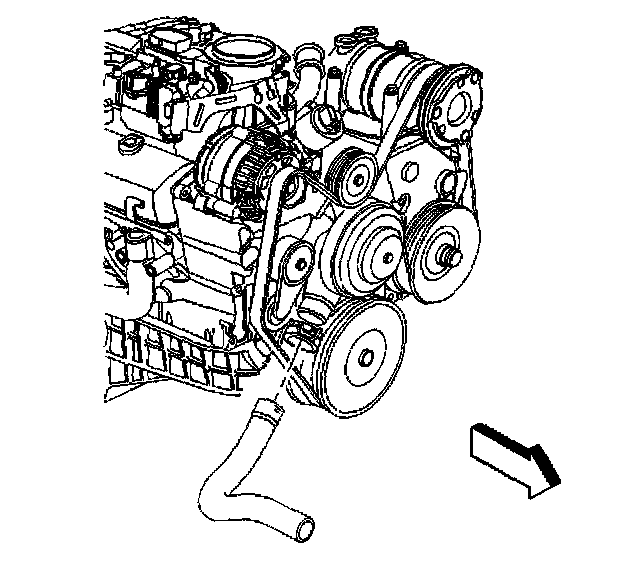

3. Using the J 38185 reposition the radiator outlet hose clamp from the water pump.
4. Remove the radiator outlet hose.

Installation Procedure





1. Install the radiator outlet hose.

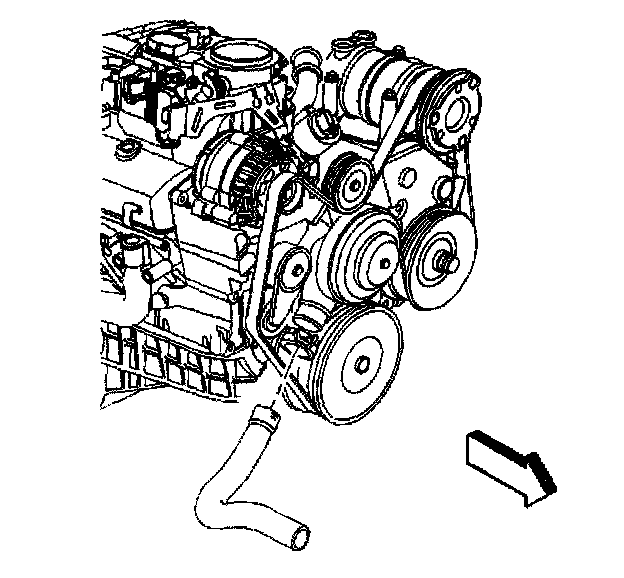

2. Using the J 38185 reposition the radiator outlet hose clamp to the water pump.





3. Using the J 38185 reposition the radiator outlet hose clamp to the radiator.
4. Fill the cooling system.
