Radiator Cooling Fan Motor Relay: Service and Repair

Cooling Fan Relay Replacement

^ Tools Required
- J 43244 Relay Puller Pliers

Removal Procedure

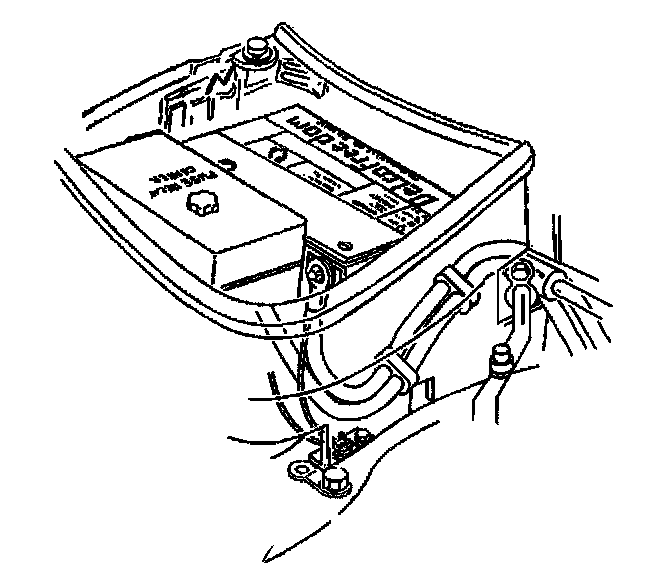

1. Remove the underhood electrical center cover.
2. Using the J 43244, remove the cooling fan relay.

Installation Procedure

Notice: Installation of the proper relay is critical. If an enhanced relay-equipped with a diode-is installed into a position requiring a standard relay- equipped without a diode-excessive current will damage any components associated with the relay or its associated circuits.





1. Install the cooling fan relay.
2. Install the underhood electrical center cover.
