Power Door Lock Switch: Service and Repair

POWER DOOR LOCK SWITCH REPLACEMENT

REMOVAL PROCEDURE

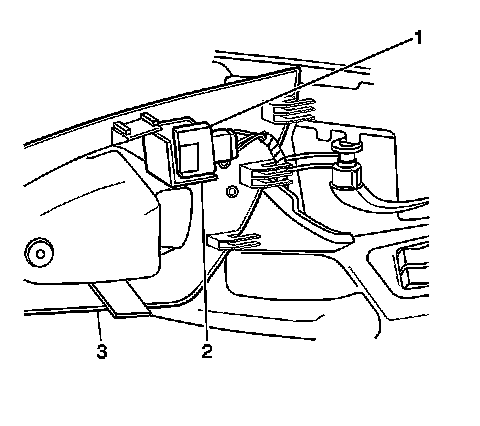

1. Remove the door handle bezel (3).
2. Release the retaining tabs for the power door lock switch (2) from the door handle bezel (3).
3. Disconnect the electrical connector (1) from the power door lock switch (2).

INSTALLATION PROCEDURE




1. Install the power door lock switch (2) to the door handle bezel (3).
2. Connect the electrical connector (1) to the power door lock switch (2).
3. Install the door handle bezel.
