Trunk / Liftgate Lock Cylinder: Service and Repair

Lock Cylinder Replacement - Rear Compartment Lid

Removal Procedure




1. Remove the rear compartment lid applique.
2. Remove the rear compartment lid lock cable from the lock cylinder with a flat bladed tool.
3. Drill out the rivets that retain the lock cylinder to the rear compartment lid.
4. Remove the lock cylinder and gasket from the rear compartment lid.

Installation Procedure

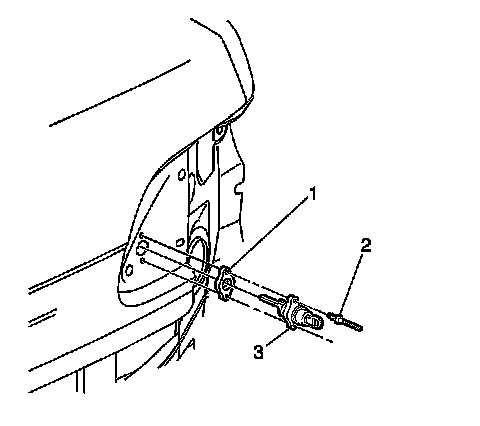

1. Install the lock cylinder and gasket to the rear compartment lid.
2. Install the rivets (2) to the lock cylinder.
3. Press the rear compartment lid lock cable onto the lock cylinder until the retainer tabs are fully seated.
4. Install the rear compartment lid applique.
