Mirror Replacement

Mirror Replacement

Removal Procedure

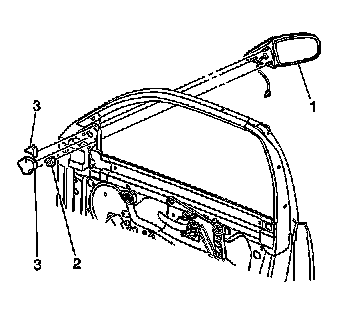

1. Remove the front door trim panel.
2. Disconnect the power mirror electrical connector.




3. Remove the front door inner panel mirror insulators (3).
4. Remove the outside rearview mirror nuts (2).
5. Remove the outside rearview mirror (1) from the front door.

Installation Procedure




1. Position the outside rearview mirror (1) to the front door.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the outside rearview mirror nuts (2).

Tighten the nuts to 10 N.m (89 lb in).

3. Install the front door inner panel mirror insulators (3).
4. Connect the power mirror electrical connector.
5. Install the front door trim panel.
