Rearview Mirror Replacement



Rearview Mirror Replacement

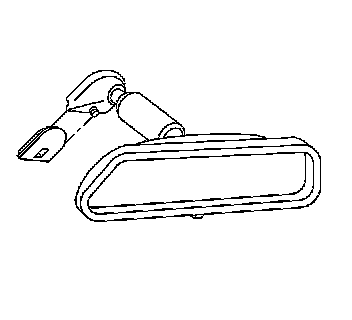

Removal Procedure

1. Loosen the screw in the center of the rearview mirror support.
2. Disconnect the electrical connector, if equipped.




3. Slide the rearview mirror from the rearview mirror support.
4. Remove the lens and reading lamp bulbs, if equipped.

Installation Procedure

1. Install the reading lamp bulb to the sockets, and lens, if equipped.




2. Install the rearview mirror to the rearview mirror support, ensuring that the mirror is fully seated.
3. Connect the electrical connector, if equipped.

Notice: Refer to Fastener Notice in Service Precautions.

4. Tighten the rearview mirror support screw.

Tighten the screw to 2 N.m (18 lb in).
