Air Outlet Replacement - Defroster

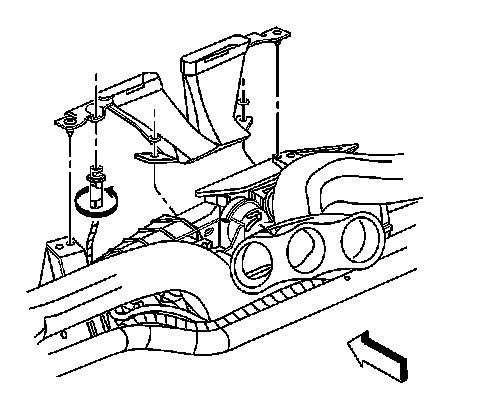

AIR OUTLET REPLACEMENT - DEFROSTER

REMOVAL PROCEDURE




1. Remove the I/P carrier.
2. Remove the daytime running lights (DRL) sensor from the defroster duct by turning 1/4 of a turn.
3. Remove the two push on retainers holding the defroster duct to the HVAC module assembly.
4. Remove the defroster air outlet duct retainers from the air distribution duct.
5. Remove the defroster air outlet duct.

INSTALLATION PROCEDURE




1. Align the defroster air outlet duct to the air distribution duct and the HVAC module.
2. Install the retainers on the defroster air outlet duct to the air distribution duct.
3. Install the two push on retainers holding the defroster duct to the HVAC module assembly.
4. Install the DRL sensor to the defroster duct.Turn 1/4 turn to lock in position.
5. Install the I/P carrier.
