Blower Motor Resistor: Service and Repair

BLOWER MOTOR RESISTOR ASSEMBLY REPLACEMENT

REMOVAL PROCEDURE




1. Remove the right side instrument panel (IP) insulator.
2. Disconnect the blower motor resistor assembly electrical connector from resistor assembly.

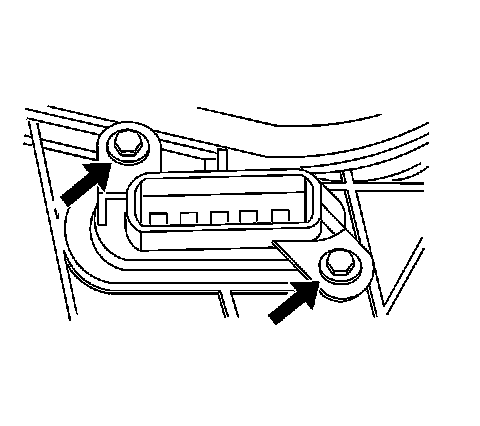

3. Remove the blower resistor assembly screws.
4. Remove the blower motor resistor assembly.

INSTALLATION PROCEDURE




1. Install the blower motor resistor assembly.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the blower motor resistor assembly screws.

Tighten the screws to 1 N.m (9 lb in).




3. Connect the blower motor resistor assembly electrical connector.
4. Install the right side instrument panel (IP) insulator.
