Torque Specifications

TORQUE SPECIFICATIONS

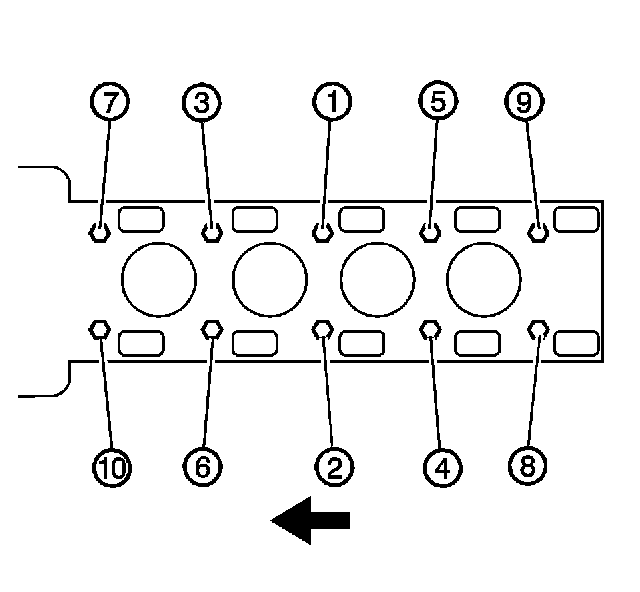

Cylinder head
First Pass 30 Nm (22 ft. lbs.)
Final Pass 155 degrees
Cylinder Head Front Chaincase Bolt 35 Nm (26 ft. lbs.)
Bolt Re-use Always New

Intake Manifold
Intake Manifold to Cylinder Head Bolt 10 Nm (89 inch lbs.)
Intake Manifold to Cylinder Head Nut 10 Nm (89 inch lbs.)
Intake Manifold to Cylinder Head Stud 6 Nm (53 inch lbs.)

Camshaft
Camshaft Sprocket Bolt
First Pass 85 Nm (63 ft. lbs.)
Final Pass 30 degrees
Camshaft Bearing Cap Bolt 10 Nm (89 inch lbs.)





Exhaust Manifold
Exhaust Manifold to Cylinder Head Nut 14 Nm (124 inch lbs.)
Exhaust Manifold to Cylinder Head Stud 10 Nm (89 inch lbs.)
Exhaust Manifold Pipe Flange Stud 16 Nm (12 ft. lbs.)
