Low/Reverse Servo Assembly Replacement

Low/Reverse Servo Assembly Replacement

Removal Procedure

1. Caution:
Refer to Vehicle Lifting Caution in Cautions and Notices.

Raise the vehicle. Support the vehicle.
2. Remove the oil pan and filter.
3. Remove the oil feed pipes.

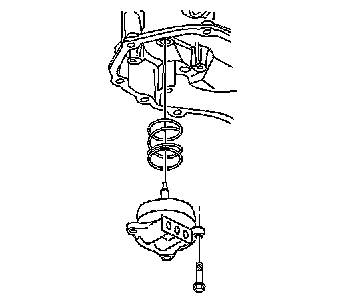

4. Remove the three low/reverse band servo cover bolts, the servo and the spring.
5. Disassemble, clean and inspect the low/reverse servo assembly. Refer to PSD SIE TITLE Error: SIE linked to invalid Cell ID 3698

Installation Procedure
1. Assemble the low/reverse servo. Refer to PSD SIE TITLE Error: SIE linked to invalid Cell ID 3699.






5. Notice:
Install the low/reverse band servo cover bolts.

^ Tighten the bolts to 12 Nm (106 inch lbs.).
3. Install the oil feed pipe.
4. Install the oil filter and pan.
5. Lower the vehicle.
6. Connect the negative battery cable.
7. Fill the transmission.
8. Inspect the transmission fluid level.
