Brake Fluid Pressure Sensor/Switch: Service and Repair

Brake Fluid Pressure Sensor Replacement

Removal Procedure
1. Turn the ignition OFF.
2. Drain the cooling system.
3. Disconnect and remove the radiator inlet hose.

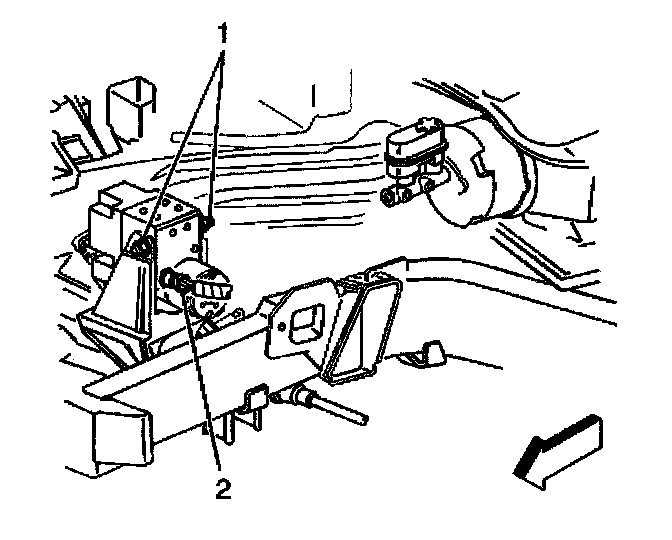

4. Loosen the two retaining nuts (1) and carefully reposition the EBCM to access the brake pressure sensor (2).
5. Disconnect the brake pressure sensor electrical connector.
6. Remove the brake pressure sensor from the vehicle.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. Install the brake fluid pressure sensor to the EBCM in the vehicle.
Tighten the switch to 22 Nm (116 ft. lbs.).
2. Connect the brake pressure sensor electrical connector.

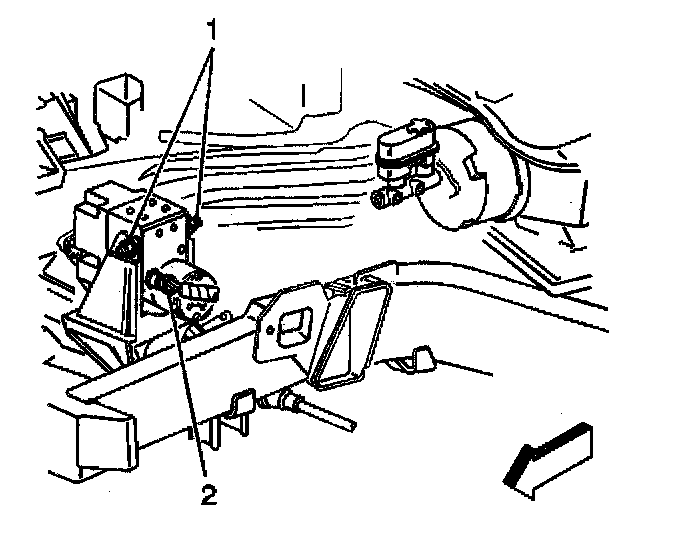

3. Reposition the EBCM to the support bracket and tighten the insulator nuts (1).
Tighten the nuts to 12 Nm (106 inch lbs.).
4. Install and connect the radiator inlet hose.
5. Fill the cooling system.
6. Perform the Diagnostic System Check - ABS.
