Intake Manifold

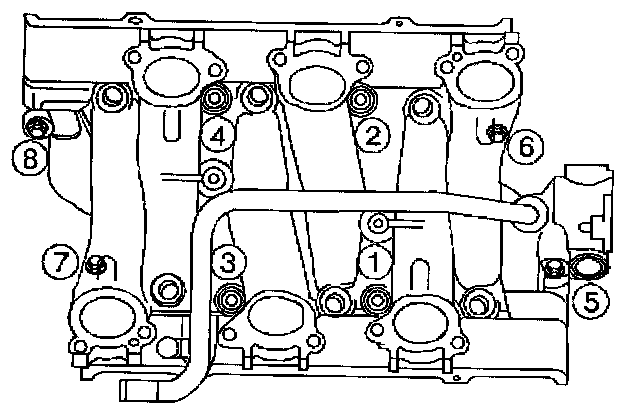

Lower Intake manifold.
Tighten in sequence to
7 Nm (62 lb in) on the first pass.
Tighten the lower intake manifold bolts (1, 2, 3, 4) in sequence to
13 Nm (115 lb in) on the final pass.
Tighten the lower intake manifold bolts (5, 6, 7, 8) in sequence to
25 Nm (18 lb ft) on the final pass.
Upper Intake Manifold
25 Nm (18 lb ft)
Throttle Body Bolt/Stud
25 Nm (18 lb ft)
