Traction Control Switch: Service and Repair

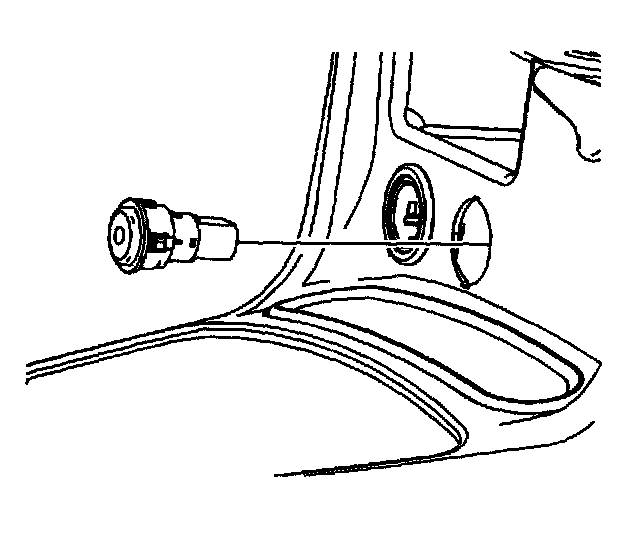

Traction Control Switch ReplacementRemoval Procedure 1.
Remove the left console trim panel.
2.
Remove the
traction control switch from behind the console.
3.
Remove the
traction control switch wire harness connector.

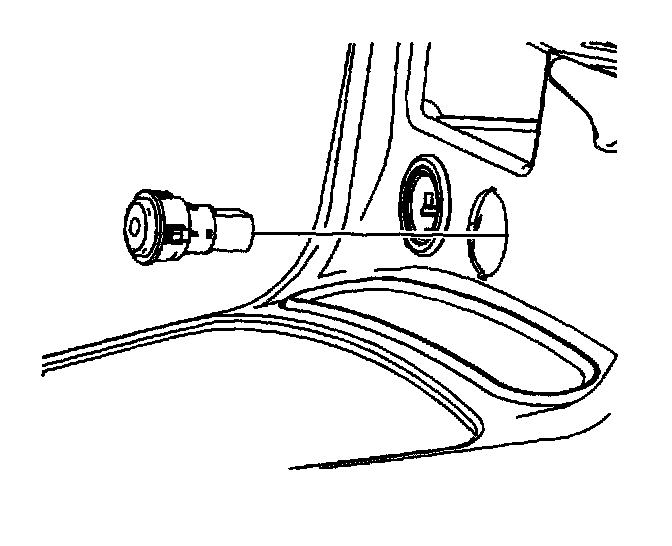

Installation Procedure 1.
Install the
traction control switch wire harness connector.
2.
Install the
traction control switch.
3.
Install the left console trim panel.
