Heater Core Replacement

HEATER CORE REPLACEMENT

REMOVAL PROCEDURE
1. Remove the HVAC module assembly. Service and Repair

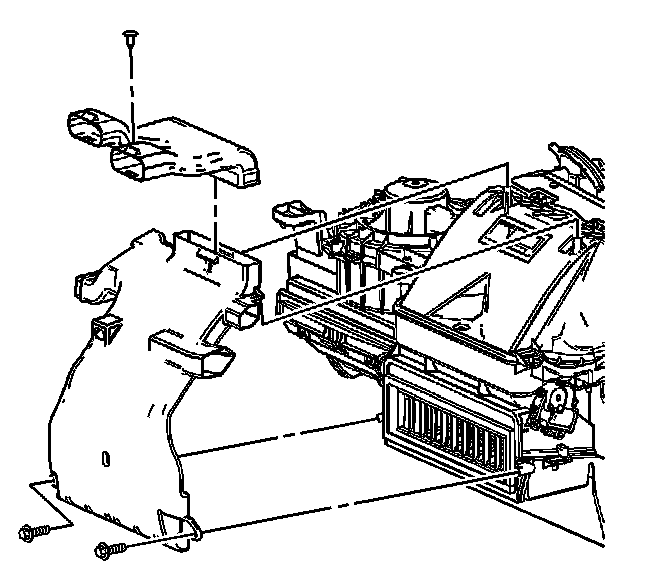

2. Remove the lower center floor air outlet duct.
3. Remove the upper center floor air outlet duct screws.
4. Remove the upper center floor air outlet duct.

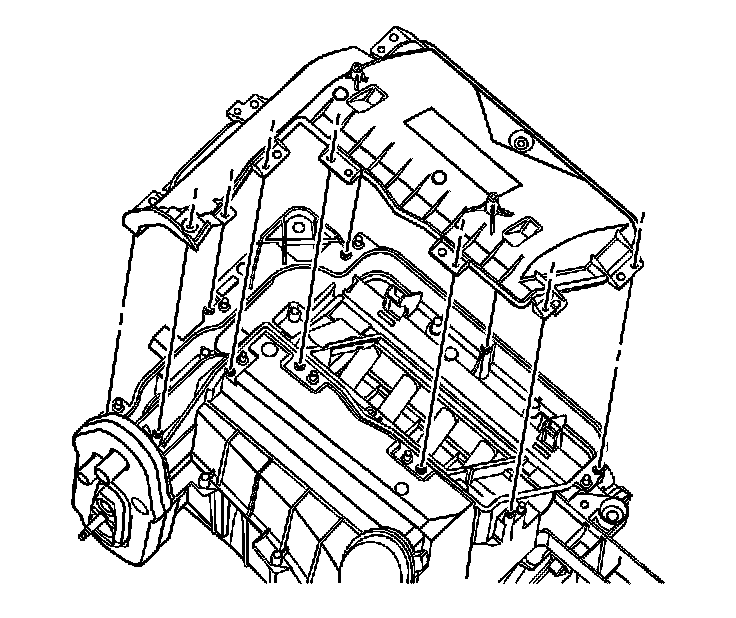

5. Drill out the heater core cover heat stakes.




6. Remove the heater core cover screws.
7. Remove the heater core cover.

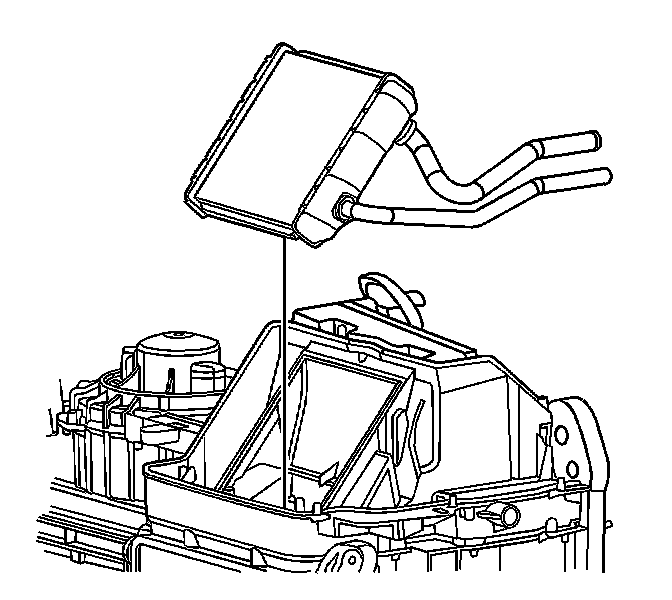

8. Remove the heater core.

INSTALLATION PROCEDURE

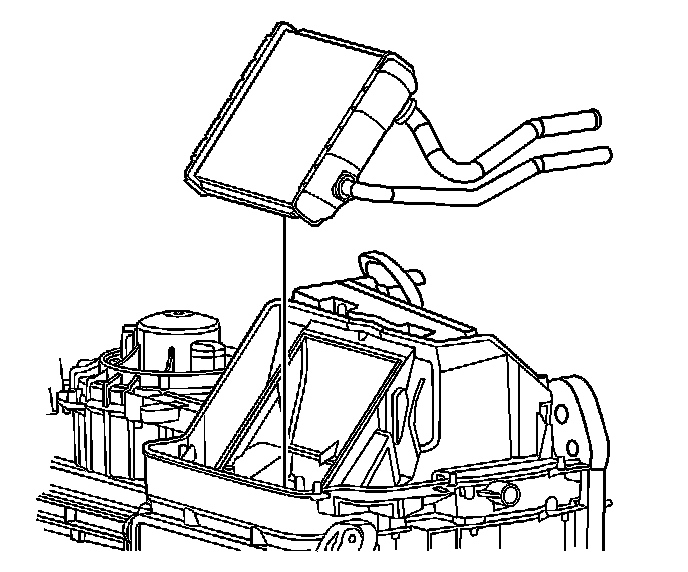

1. Install the heater core.

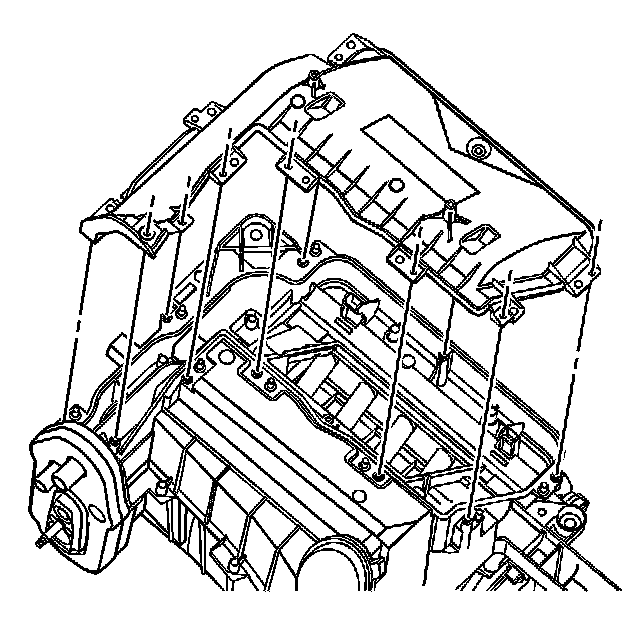

2. Install the heater core cover.

NOTE: Refer to Fastener Notice in Service Precautions.




3. Install the heater core cover screws.

Tighten
Tighten the screws to 1.5 N.m (13 lb in).

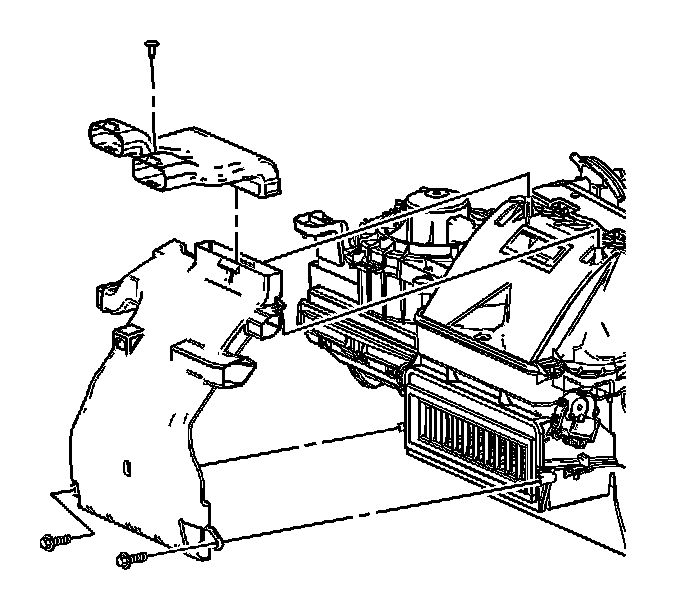

4. Install the upper center floor air outlet duct.




5. Install the upper center floor air outlet duct screws.

Tighten
Tighten the screws to 1.5 N.m (13 lb in).

6. Install the lower center floor air outlet duct.
7. Install the HVAC module assembly.
