Auxiliary Power Outlet: Service and Repair

CIGAR LIGHTER HOUSING OR 12 VOLT ACCESSORY POWER RECEPTACLE REPLACEMENT

TOOLS REQUIRED
J 42059 Cigar Lighter Socket Remover

REMOVAL PROCEDURE
1. Disconnect the 12-volt power supply fuse.

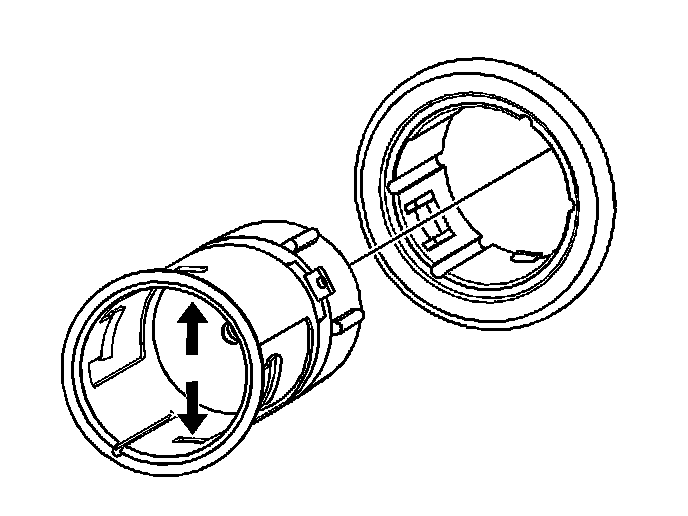

2. Remove the power supply by placing one side of the "T" portion of the tool J 42059 into the tab window and then angle the other side into the opposite tab window, then pull the lighter socket straight out.
3. Remove the power supply wire harness connector.

INSTALLATION PROCEDURE
1. Install the power supply wire harness connector.

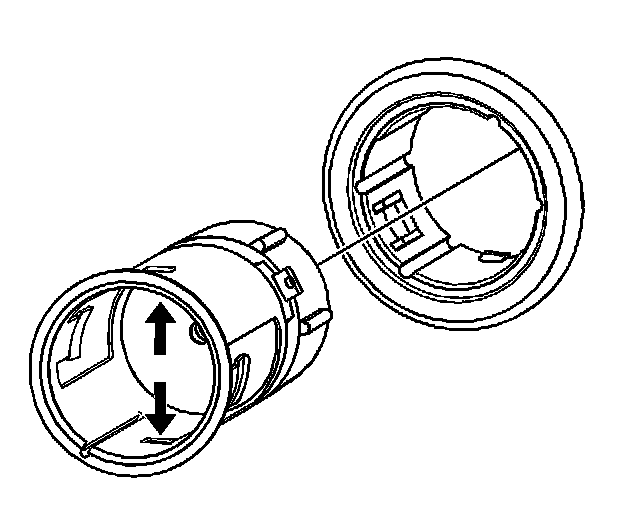

2. Align the tabs on the power supply socket with the slots on the power supply retainer.




3. Connect the power supply.
4. Connect the 12-volt power supply fuse.
