Procedures
POWER MIRROR SWITCH REPLACEMENT (MONTE CARLO)REMOVAL PROCEDURE 1.
Remove the front door trim panel.
2.
Remove the armrest pull cup.
3.

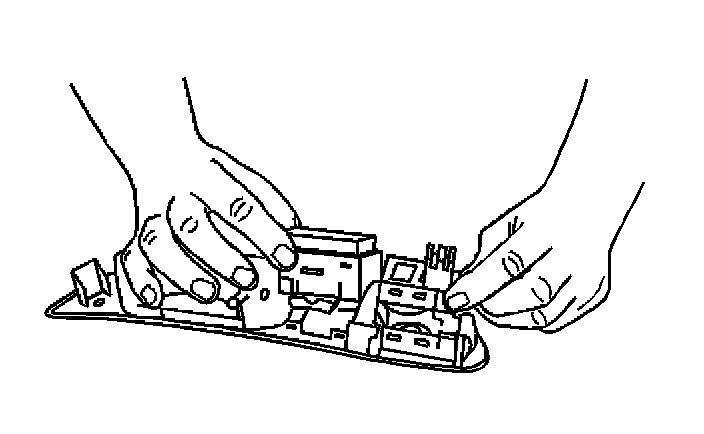

Disconnect the
power mirror switch by pressing the thumb tab retainers outward and remove the switch from the pull handle.
INSTALLATION PROCEDURE 1.
Install the power switch by pressing it into the pull handle.
2.
Install the armrest pull cup.
3.
Install the front door trim panel.
