Front

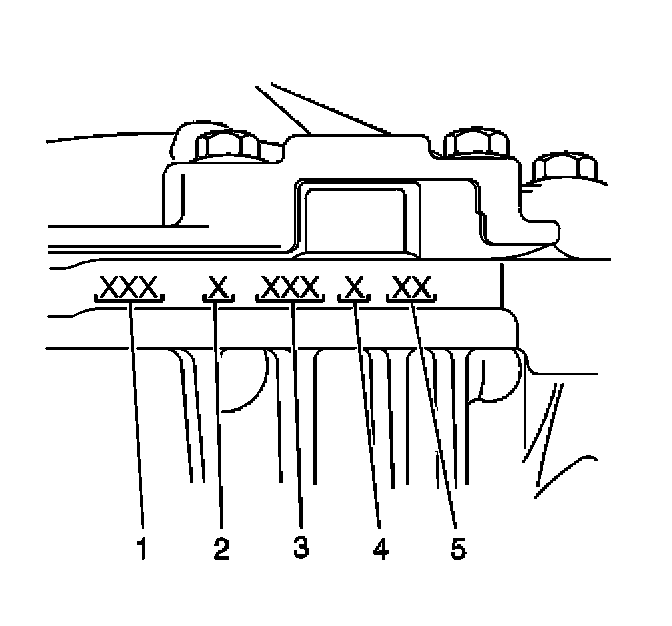

AXLE IDENTIFICATION - FRONTFront axle identification information is stamped on the top of the differential carrier assembly. The information includes the following:
-
Broadcast code (1)
-
Supplier code (2)
-
Date built (3)
-
Shift built (4) (Optional for
8.25 inch and
9.25 inch axles)
-
Hour built (5)
In order to verify reports made on the
differential case assembly, include full code letters and build date numbers.
