Instrument Panel Vent

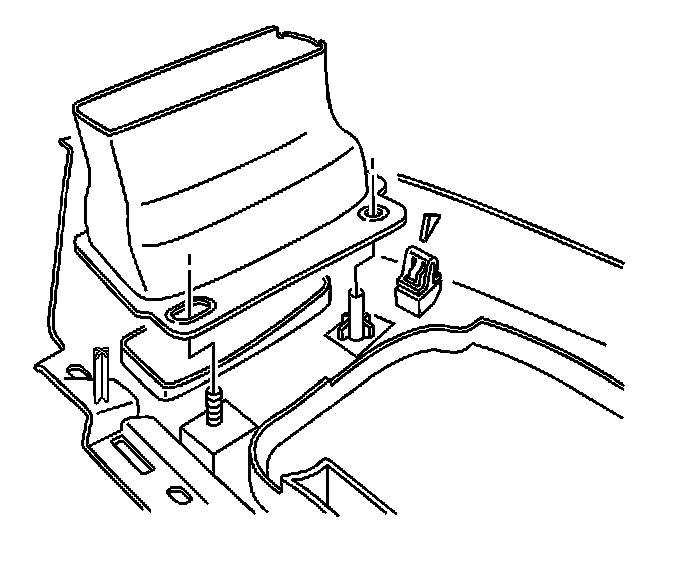

AIR OUTLET REPLACEMENT - INSTRUMENT PANEL

REMOVAL PROCEDURE
1. Remove the instrument panel center trim panel.




2. Remove the air outlet fasteners.
3. Remove the air outlet from the center trim panel.

INSTALLATION PROCEDURE




1. Place the air outlet onto the center trim panel.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the air outlet fasteners.

Tighten
Tighten the fasteners to 2.5 N.m (22 lb in).

3. Install the instrument panel center trim panel.
