Wiper Motor Module Replacement

WIPER MOTOR MODULE REPLACEMENT

REMOVAL PROCEDURE
1. Remove the wiper arms.
2. Remove the air inlet grille panel.
3. Remove the cruise control and bracket.
4. Remove the wiper motor.

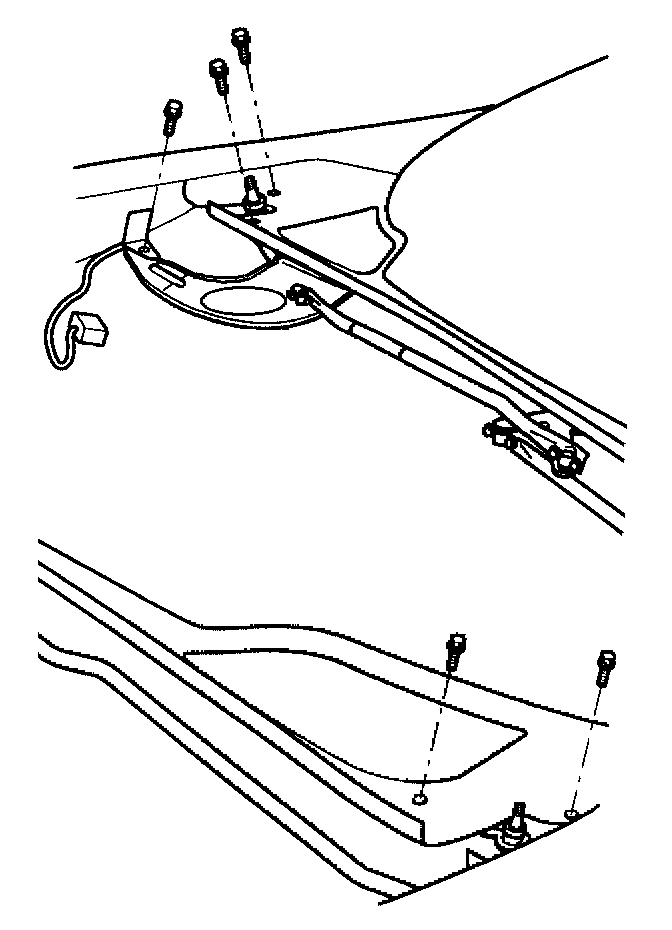

5. Remove the wiper drive system module screws.
6. Remove the wiper drive system module from the vehicle.

INSTALLATION PROCEDURE




1. Position the wiper drive system module to the air inlet panel.

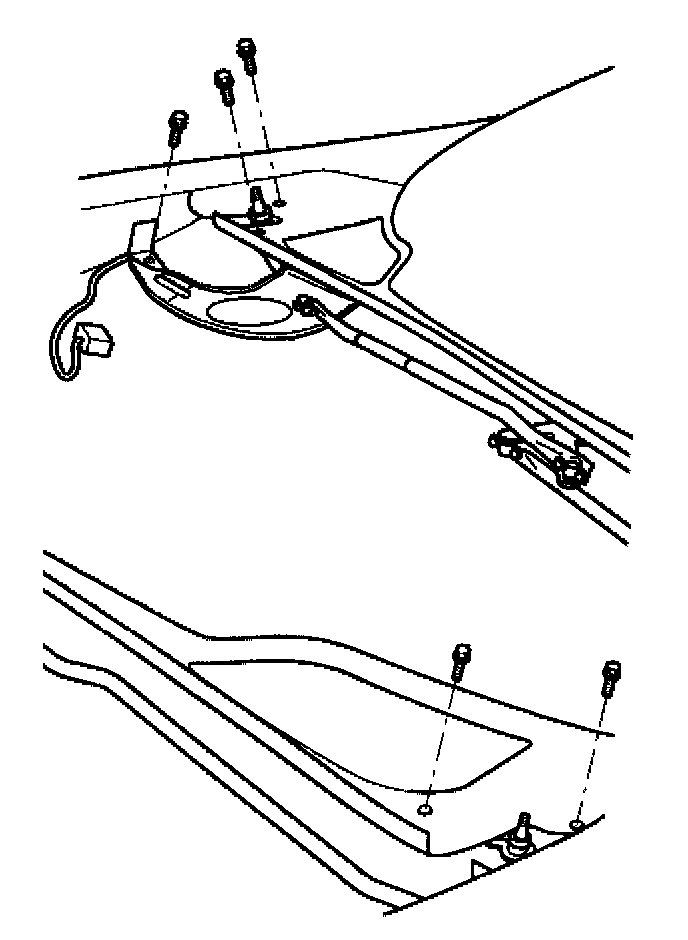

2. Install the wiper drive system module screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 10 N.m (89 lb in).

3. Install the wiper motor.
4. Install the cruise control and bracket.
5. Install the air inlet grille panel.
6. Install the wiper arms.
7. Inspect the wipers for proper operation.
