Brakes and Traction Control: Locations

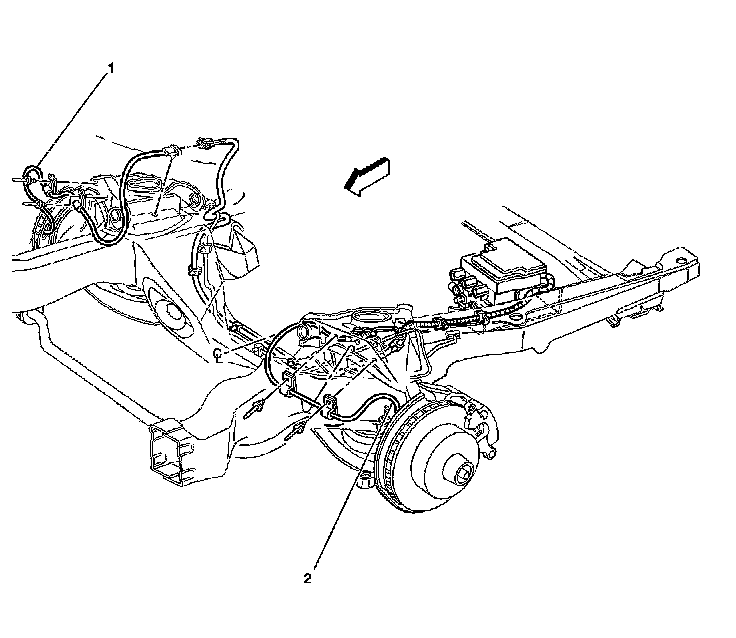

ABS Component Views Antilock Brake System Wiring 1 - Wheel Speed Sensor (WSS) - RF
2 - Wheel Speed Sensor (WSS) - LF

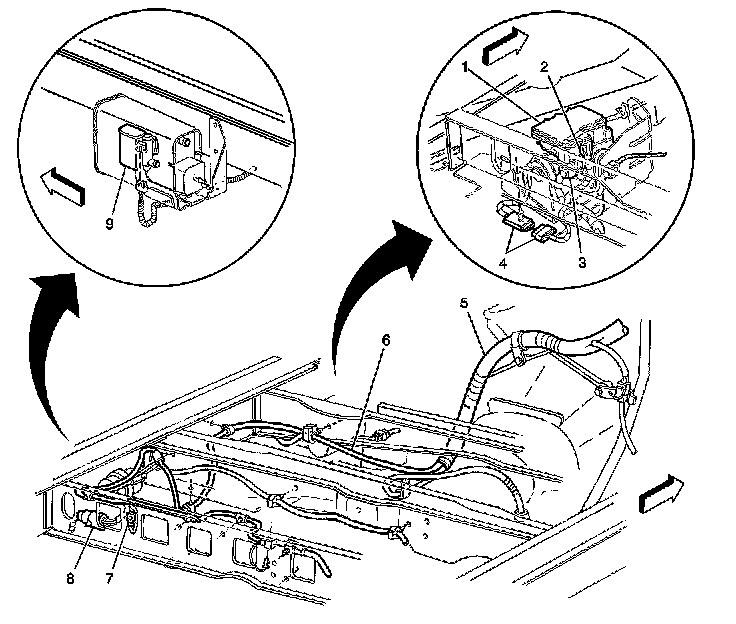

Undercarriage Wiring 1 - Electronic Brake Control Module (EBCM)
2 - Electronic Brake Control Module (EBCM) Connector C2
3 - Electronic Brake Control Module (EBCM) Connector C1
4 - C314
5 - S126
6 - S127
7 - G302
8 - C310
9 - Evaporative Emission (EVAP) Canister Vent Solenoid
