Transfer Case Speed Sensor Replacement (Left Rear)

Transfer Case Speed Sensor Replacement (Left Rear)

Removal Procedure





1. Raise the vehicle. Refer to Vehicle Lifting.

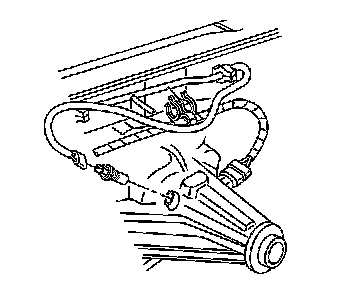

2. Remove the transfer case left rear speed sensor electrical connector.
3. Remove the transfer case left rear speed sensor.

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

1. Install the transfer case left rear speed sensor.
^ Tighten the transfer case left rear speed sensor to 15 Nm (11 ft. lbs.).
2. Install the transfer case left rear speed sensor electrical connector.
3. Lower the vehicle. Refer to Vehicle Lifting.
