Fastener Tightening Specifications

TORQUE SPECIFICATIONS





Cylinder Head

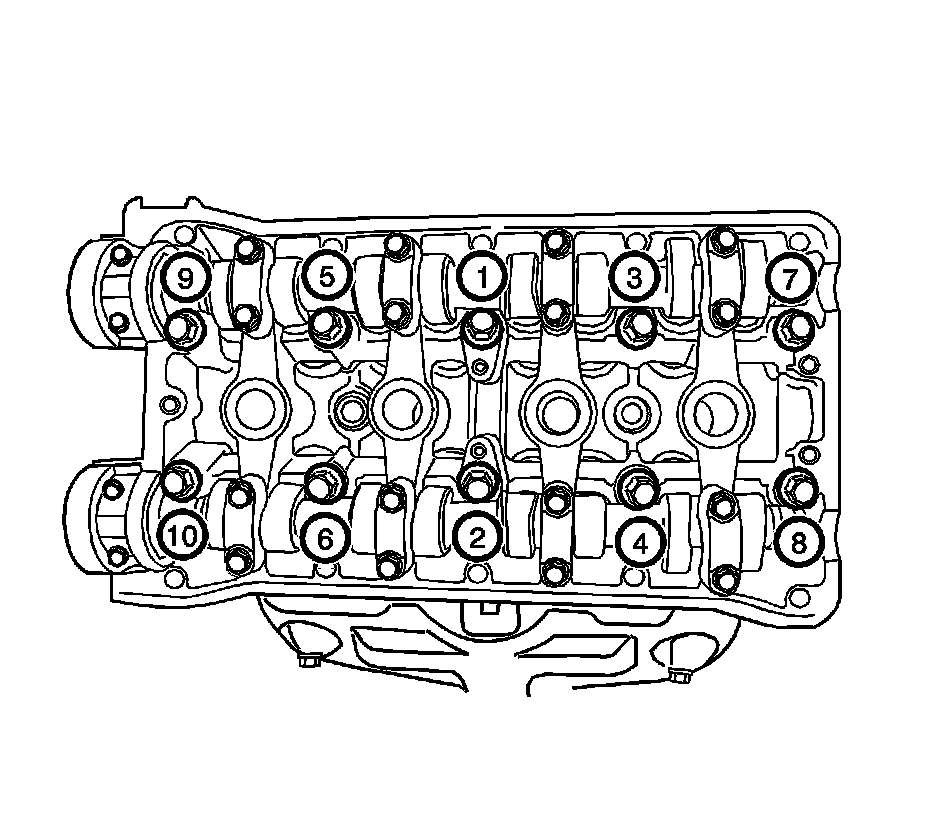

Cylinder Head Bolts - Camshaft Support Housing and Cylinder Head Mounting Bolts 25 Nm+60°+60°+60°+15° (18 ft. lbs.+60°+60°+60°+10°)




Intake manifold
Intake Manifold Retaining Nuts 25 Nm (18 ft. lbs.)
Intake Manifold Support Bracket Lower Bolt-to-Engine Block 40 Nm (30 ft. lbs.)
Intake Manifold Support Bracket Upper Bolts 25 Nm (18 ft. lbs.)

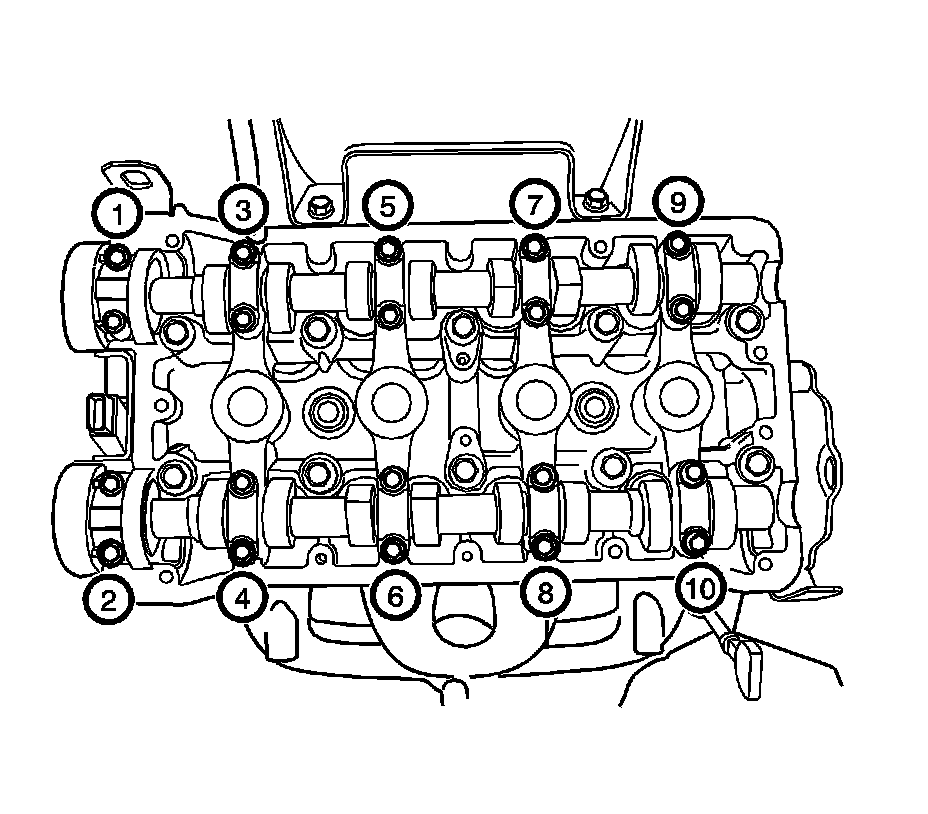

Camshaft Cap Bolts 16 Nm (12 ft. lbs.)
Camshaft Gear Bolt 67.5 Nm (49 ft. lbs.)




Exhaust manifold
Exhaust Manifold Heat Shield Bolts 15 Nm (11 ft. lbs.)

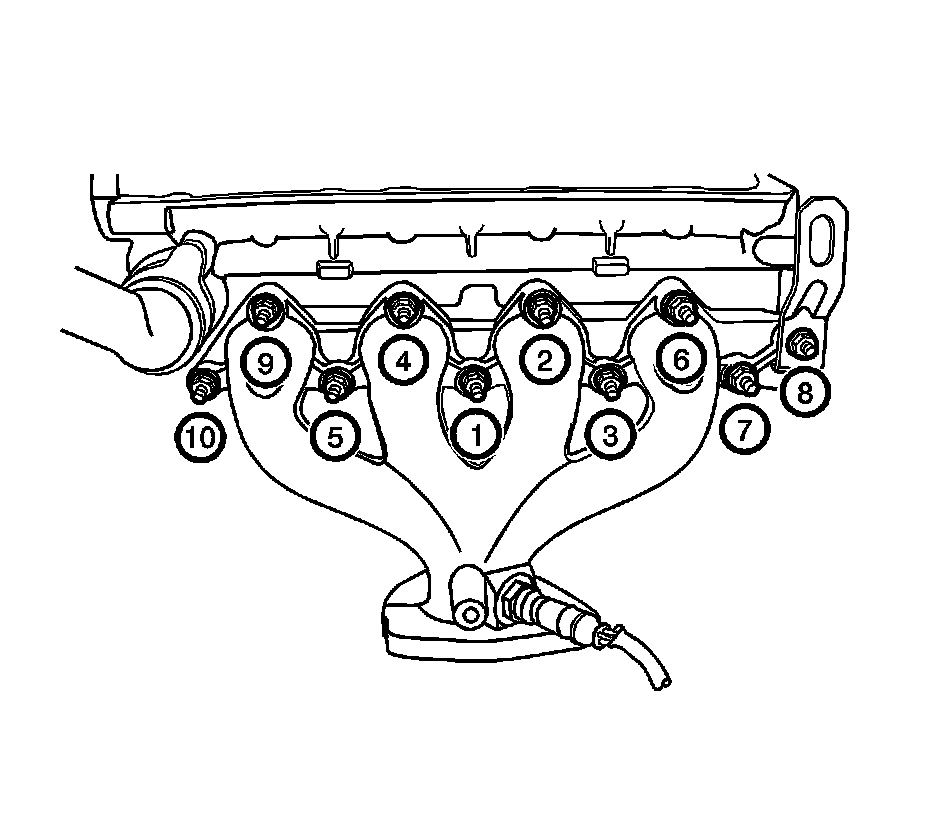

Exhaust Manifold Nuts 25 Nm (18 ft. lbs.)
