Axle Shaft Assembly

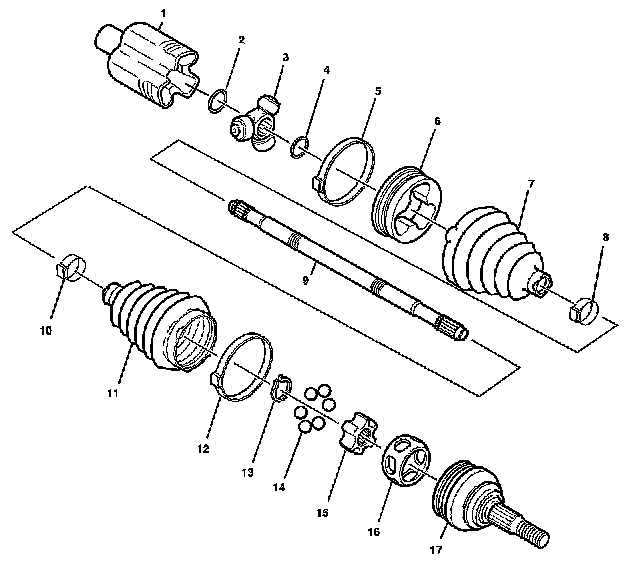

Free-Motion Design Halfshaft

Free-Motion Design Halfshaft:

1 - Retainer and Housing Assembly
2 - Halfshaft Retaining Ring
3 - Tripot Joint Spider Assembly
4 - Spacer Ring
5 - Boot Retaining Clamp
6 - Tripot Trilobal Bushing
7 - Halfshaft Inboard Boot
8 - Boot Retaining Clamp
9 - Halfshaft Bar
10 - Boot Retaining Clamp
11 - Halfshaft Outboard Boot
12 - Boot Retaining Clamp
13 - Race Retaining Ring
14 - Chrome Alloy Ball
15 - CV Joint Inner Race
16 - CV Joint Cage
17 - CV Joint Outer Race
