Air Recirculation Malfunction

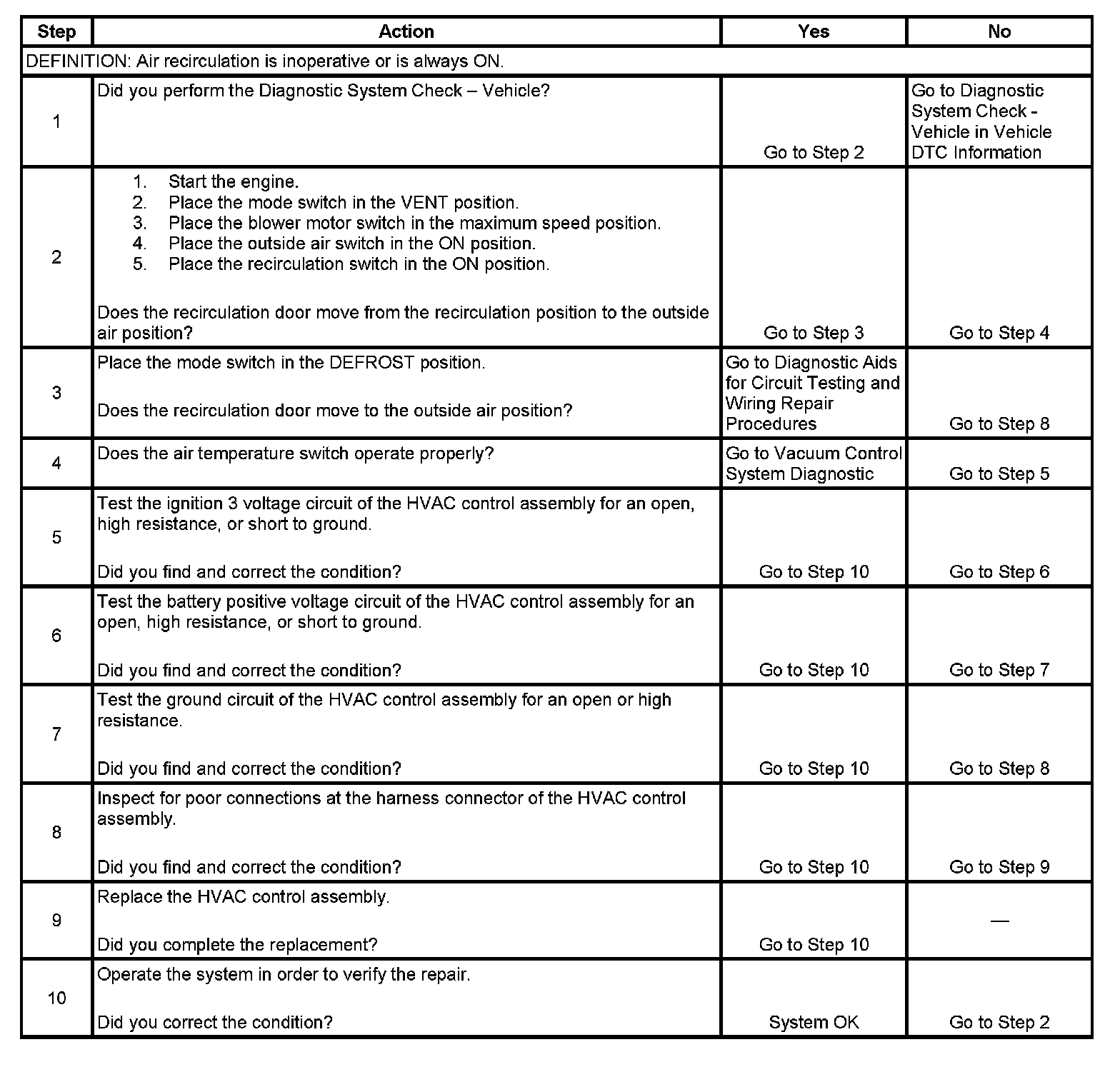

AIR RECIRCULATION MALFUNCTIONTEST DESCRIPTIONSteps 1-10:
The number below refers to the step number on the diagnostic table.
5.
There are 2 ignition 3 voltage circuits at the HVAC control module. Test the circuit that is not the supply voltage circuit for the
blower motor switch.
