Cooling System

Engine Cooling Schematics

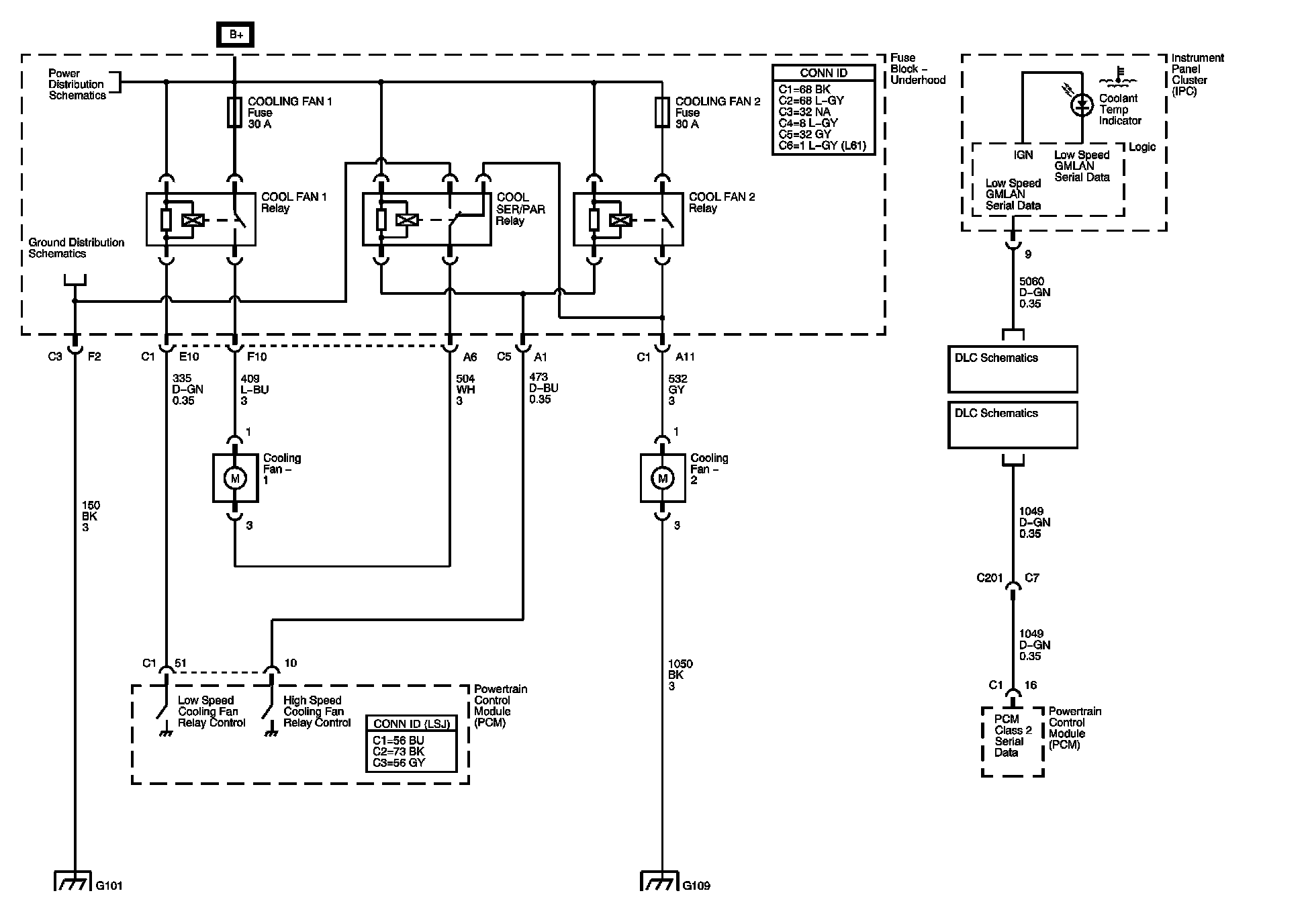

Cooling Fan and Indicator - 2.0L

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
