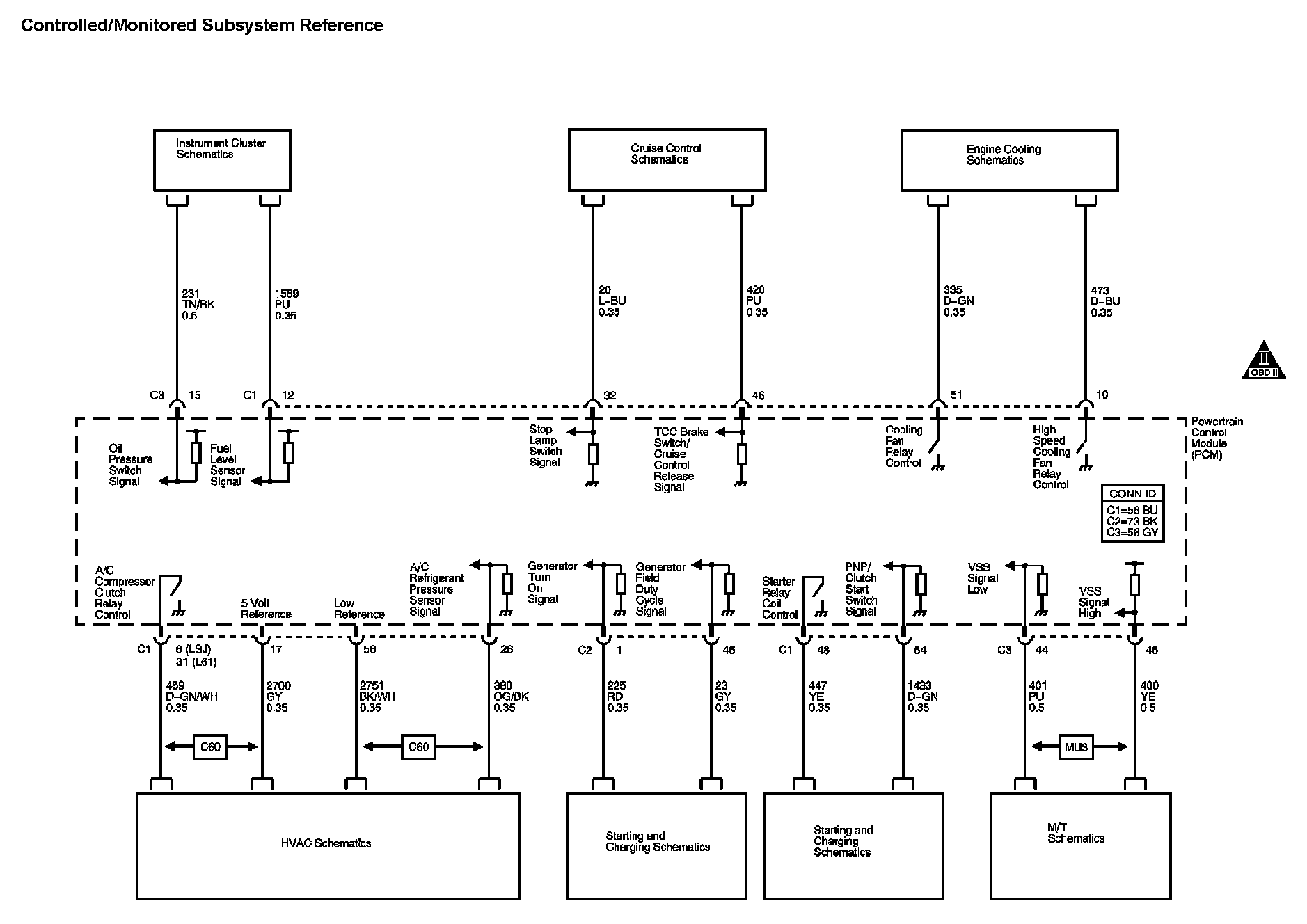

Engine Controls Diagram 10
Engine Controls Diagram 10:
Previous Diagram Engine Controls Diagram 9
Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
