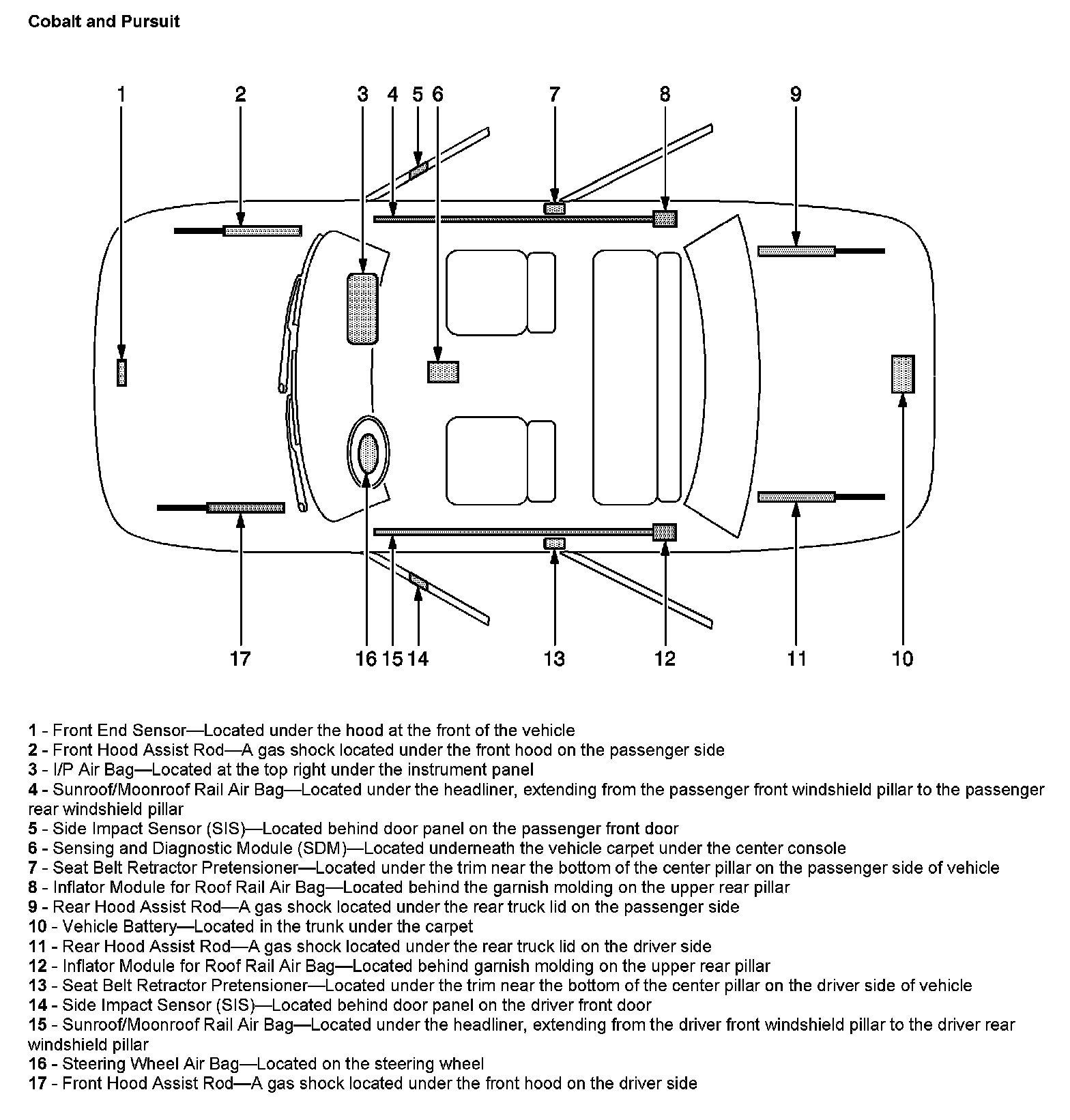

SIR Zone Identification Views

SIR ZONE IDENTIFICATION VIEWS

Cobalt And Pursuit:

The SIR Zone Identification Views, illustrate the approximate location of all SIR components available for the vehicle. This will assist in determining the appropriate SIR Disabling and Enabling Zones for a given service procedure, refer to SIR Disabling and Enabling Zones.
