Scan Tool Output Controls

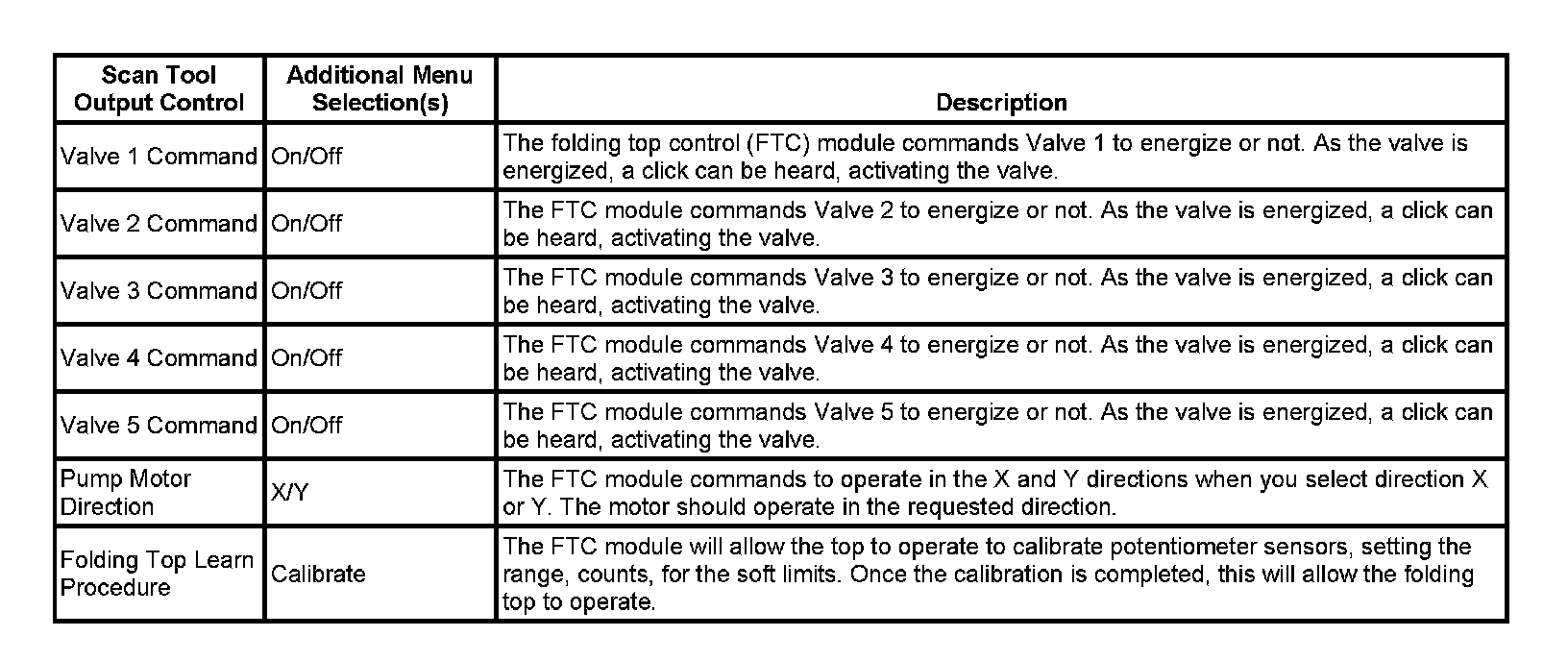

SCAN TOOL OUTPUT CONTROLS

CAUTION:
- To reduce the risk of personal injury or vehicle damage, the deck lid needs to be fully extended upward and the hydraulic system needs to be disabled. The hydraulic bypass valve needs to be turned counterclockwise to inhibit the system from moving out of sequence.
- To reduce the risk of personal injury or vehicle damage, stay clear of the folding top panels and linkage. The disconnection of a valve harness connector may cause the folding top assembly to drift to a mechanical resting position.
