Oil Pressure Sensor: Service and Repair



Engine Oil Pressure Sensor and/or Switch Replacement

Tools Required
^ J41712 Oil Pressure Sensor Socket

Removal Procedure





1. Remove the left engine sight cover.
2. Clean area around the oil sensor/switch before removing it.
3. Remove the vacuum hose for the power brake booster.

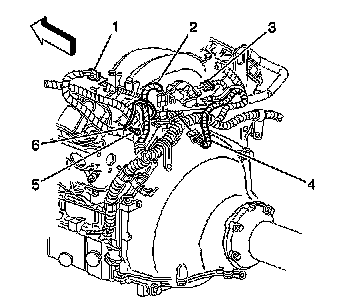

4. Disconnect the electrical connector for the oil pressure sensor/switch (5).

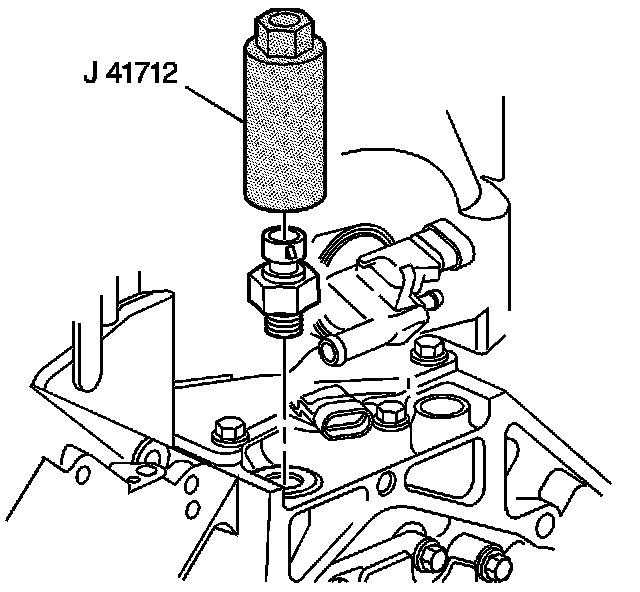

5. Using the J41712, remove the oil pressure sensor/switch.

Installation Procedure





1. If installing the old sensor, apply threadlocker sealant GM P/N 12346004 (Canadian P/N 10953480), or equivalent.

2. Notice: Refer to Fastener Notice in Service Precautions.

Using the J41712, install the oil pressure sensor/switch.
Tighten the engine oil pressure sensor to 20 Nm (15 ft. lbs.).





3. Reconnect the oil pressure sensor/switch electrical connector (5).





4. Install the vacuum hose for the power brake booster.
5. Install the left engine sight cover.
