Grille: Service and Repair
Grille ReplacementRemoval Procedure 1.
Open the
hood.
2.

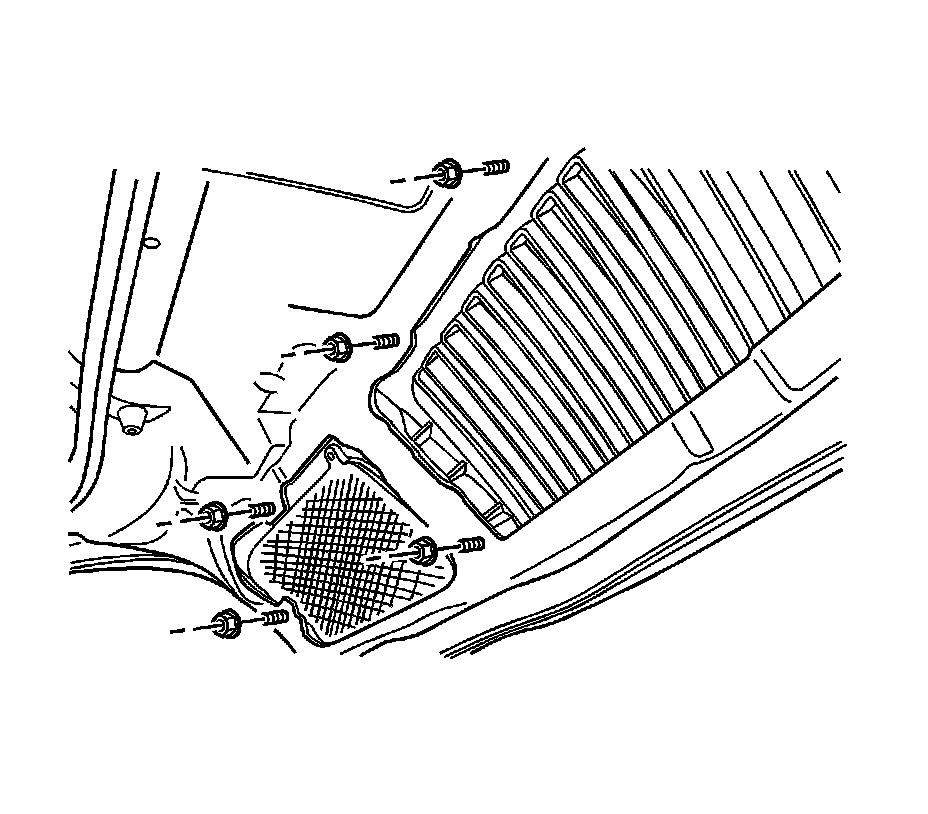

Remove the nuts and the radiator grille.
Installation Procedure Notice: Refer to Fastener Notice
Fastener Notice in Cautions and Notices.
1.
Install the radiator grille with the nuts
Tighten the radiator grille nuts to 4 Nm (35 lb in). 2.
Close the
hood.
