Keyless Entry Schematics (North America)




Keyless Entry Schematics (North America)

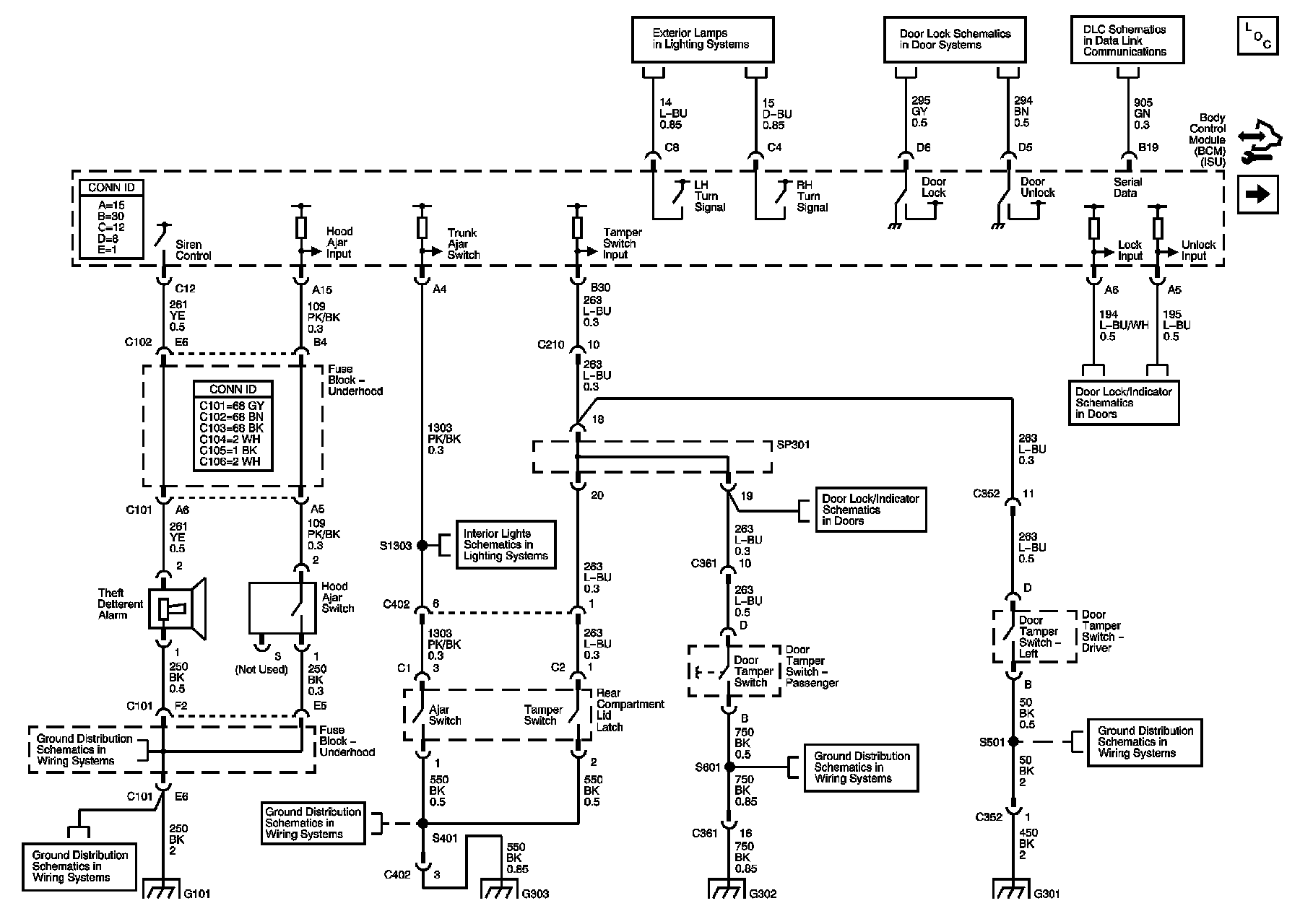

Theft Deterrent System (1 of 2)





Master Electrical Component List
Theft Deterrent Schematics (2 of 2)
Turn and Hazard Lamps - North America
Door Lock/Indicator Schematics
DLC Schematics
Rear Compartment Lamp
Door Lock/Indicator Schematics
Door Lock/Indicator Schematics
G101
G101
G101
G303
G303
G302
G302
G301
G301

Theft Deterrent System (2 of 2)





Master Electrical Component List
Theft Deterrent Schematics (1 of 2)
WPR, TCM BTSI, BCM ABS, CLSTR AUTO A/C, WSWA Fuses
WPR, TCM BTSI, BCM ABS, CLSTR AUTO A/C, WSWA Fuses
G301
