Driver Seat Adjuster Replacement




Driver Seat Adjuster Replacement

Removal Procedure





1. Remove the driver seat. Refer to Front Seat Replacement - Bucket Front Seat Replacement - Bucket.

2. Remove the front seat cushion. Refer to Front Seat Cushion Replacement Front Seat Cushion Replacement.

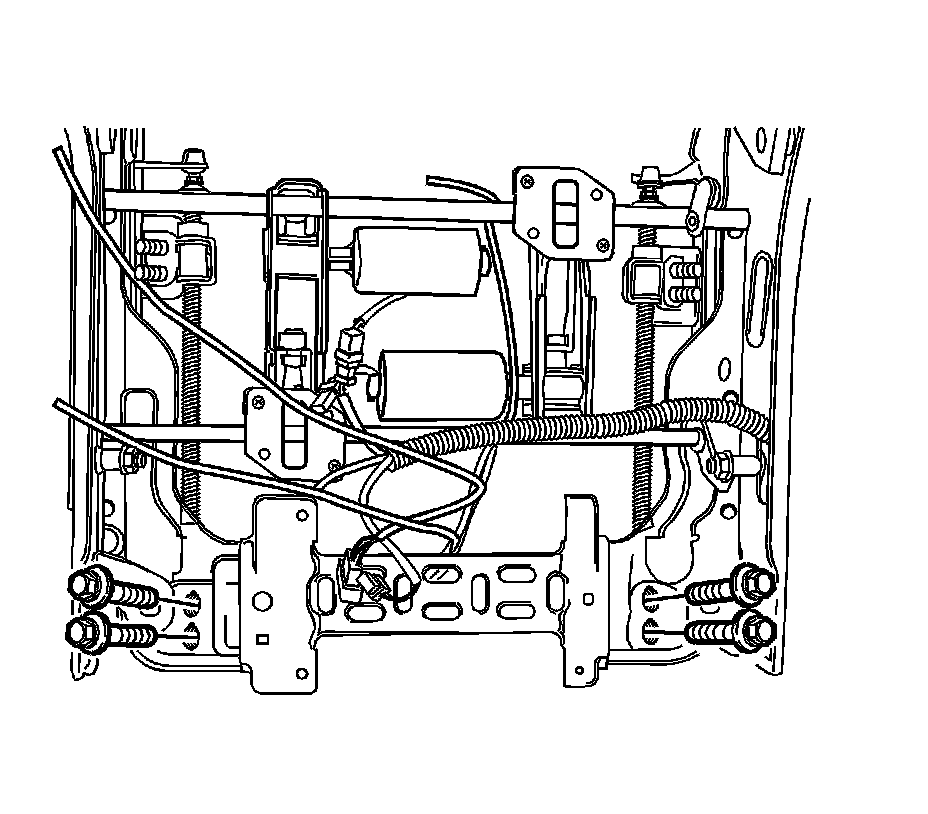

3. Disconnect the electrical connector.

4. Remove the bolts the screws, and the slide assembly.

Installation Procedure





Notice:
Refer to Fastener Notice Fastener Notice.

1. Install the slide assembly with the bolts and the screws.

Tighten

* Tighten the slide assembly bolts to 25 Nm (18 lb ft).

* Tighten the slide assembly screws to 10 Nm (89 lb in).

2. Connect the electrical connector.

3. Install the front seat cushion. Refer to Front Seat Cushion Replacement Front Seat Cushion Replacement.

4. Install the driver seat. Refer to Front Seat Replacement - Bucket Front Seat Replacement - Bucket.
