Hydraulic System: Locations
Hydraulic Brake Component Views

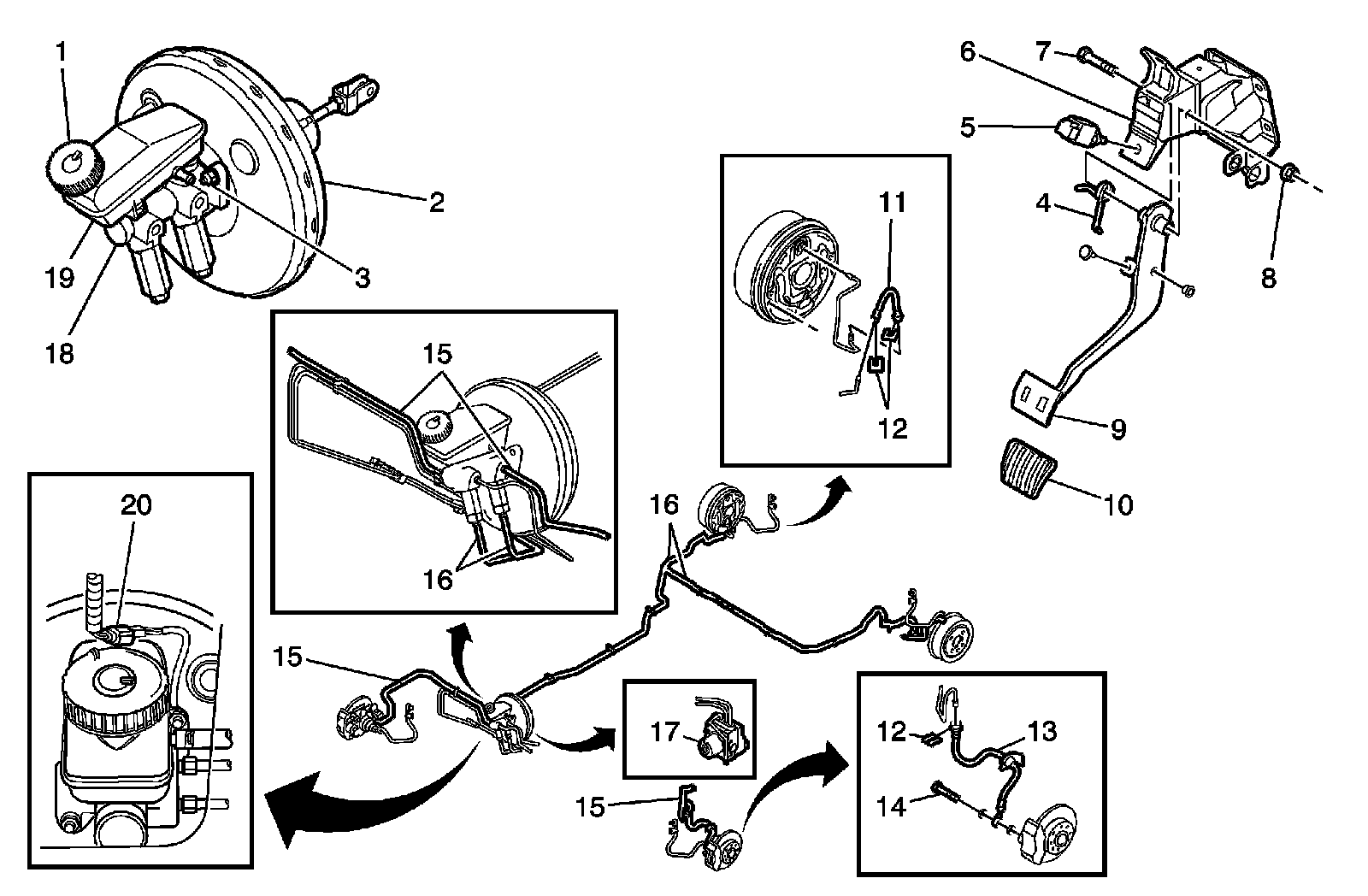

Brake Pipe Routing
1 - Brake Oil Tank Cap
2 - Brake Booster
3 - Brake Booster Nut
4 - Spring
5 - Stop Lamp Switch
6 - Pedal Bracket Assembly
7 - Pedal Bolt
8 - Pedal Nut
9 - Pedal
10 - Brake Pedal Cover
11 - Rear Brake Hose
12 - E-Ring
13 - Front Brake Hose
14 - Union Bolt
15 - Front Brake Pipe
16 - Rear Brake Pipe
17 - ABS Assembly
18 - Master Cylinder
19 - Brake Oil Tank
20 - Brake Fluid Level Switch

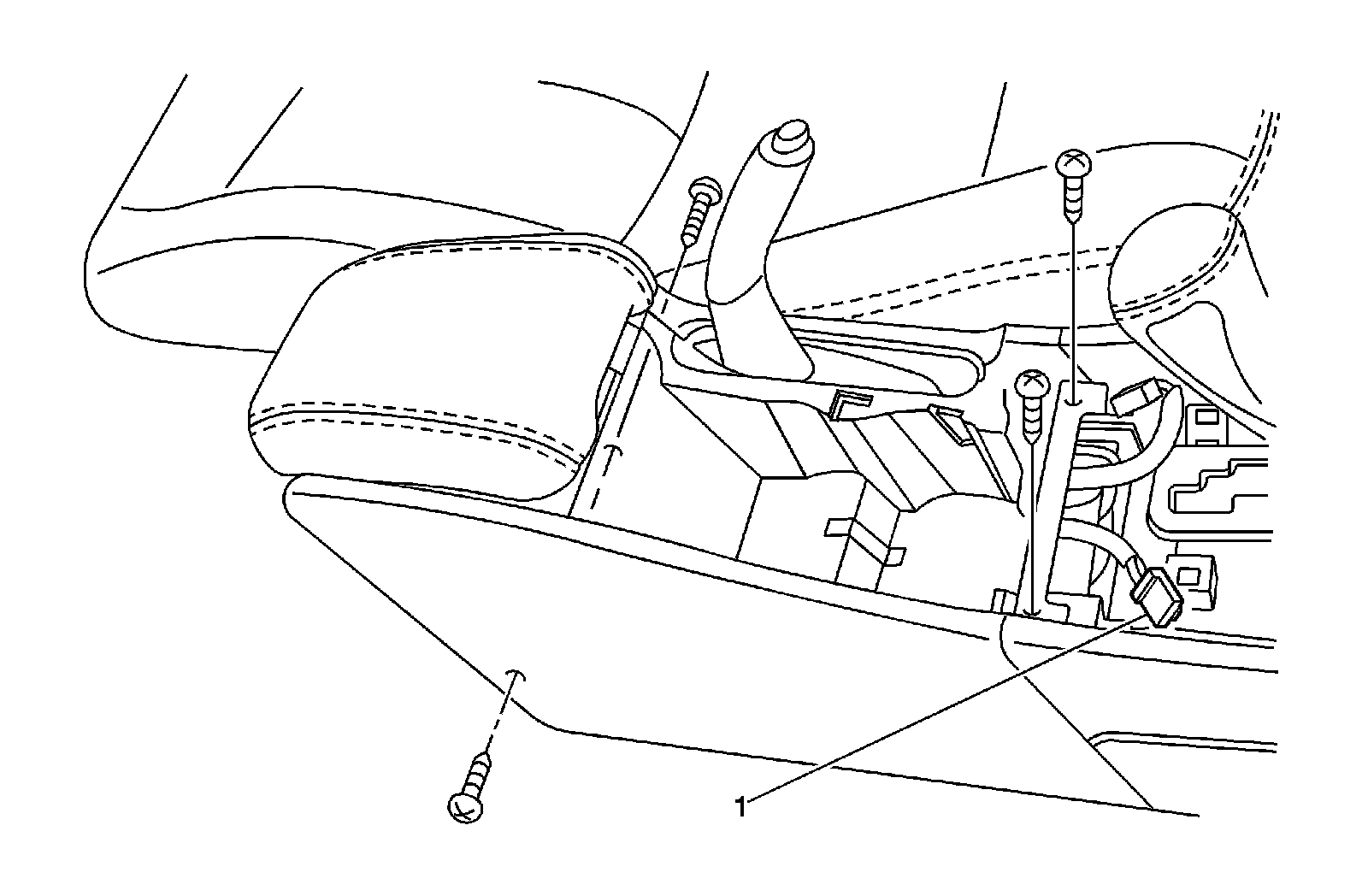

Park Brake Switch
1 - Parking Brake Switch
