Shift Interlock, A/T

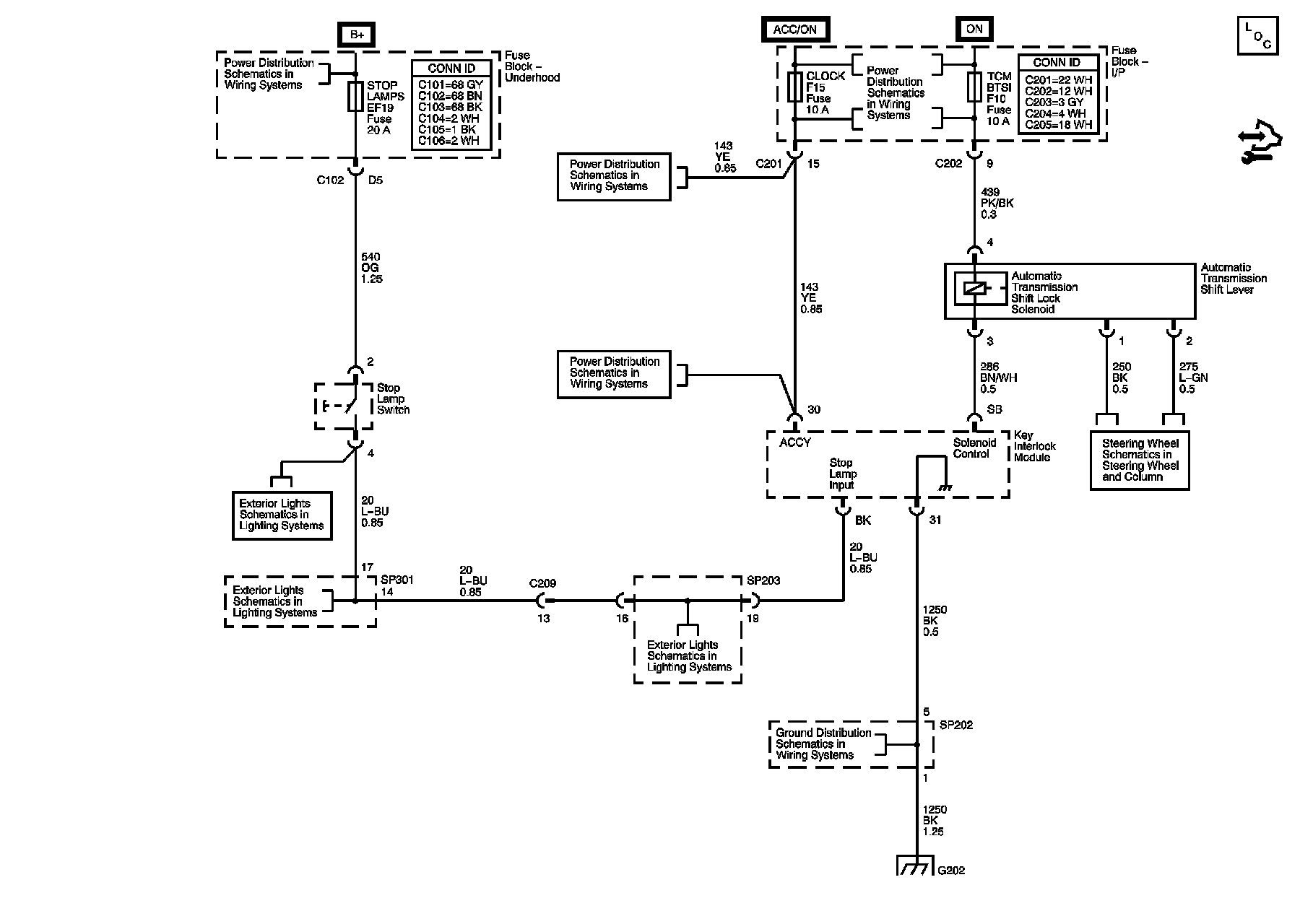

Shift Lock Control Schematics (2.5L)

Automatic Transmission Shift Lock Control- 2.5L





Master Electrical Component List
STOP LAMPS, HI BEAM PASSING, ECM Fuses
IGN 1, Fuse, Ignition Switch, I/P Fuse Block, - LTR, HTD SEAT, CLK, RADIO, AIR BAG, BCK/UP, CRUISE, ECM Fuses
IGN 1, Fuse, Ignition Switch, I/P Fuse Block, - LTR, HTD SEAT, CLK, RADIO, AIR BAG, BCK/UP, CRUISE, ECM Fuses
IGN 1, Fuse, Ignition Switch, I/P Fuse Block, - LTR, HTD SEAT, CLK, RADIO, AIR BAG, BCK/UP, CRUISE, ECM Fuses
Stop Lamps
Column/Ignition Lock Schematics
Stop Lamps
G201, G202, SP203
