Exhaust System

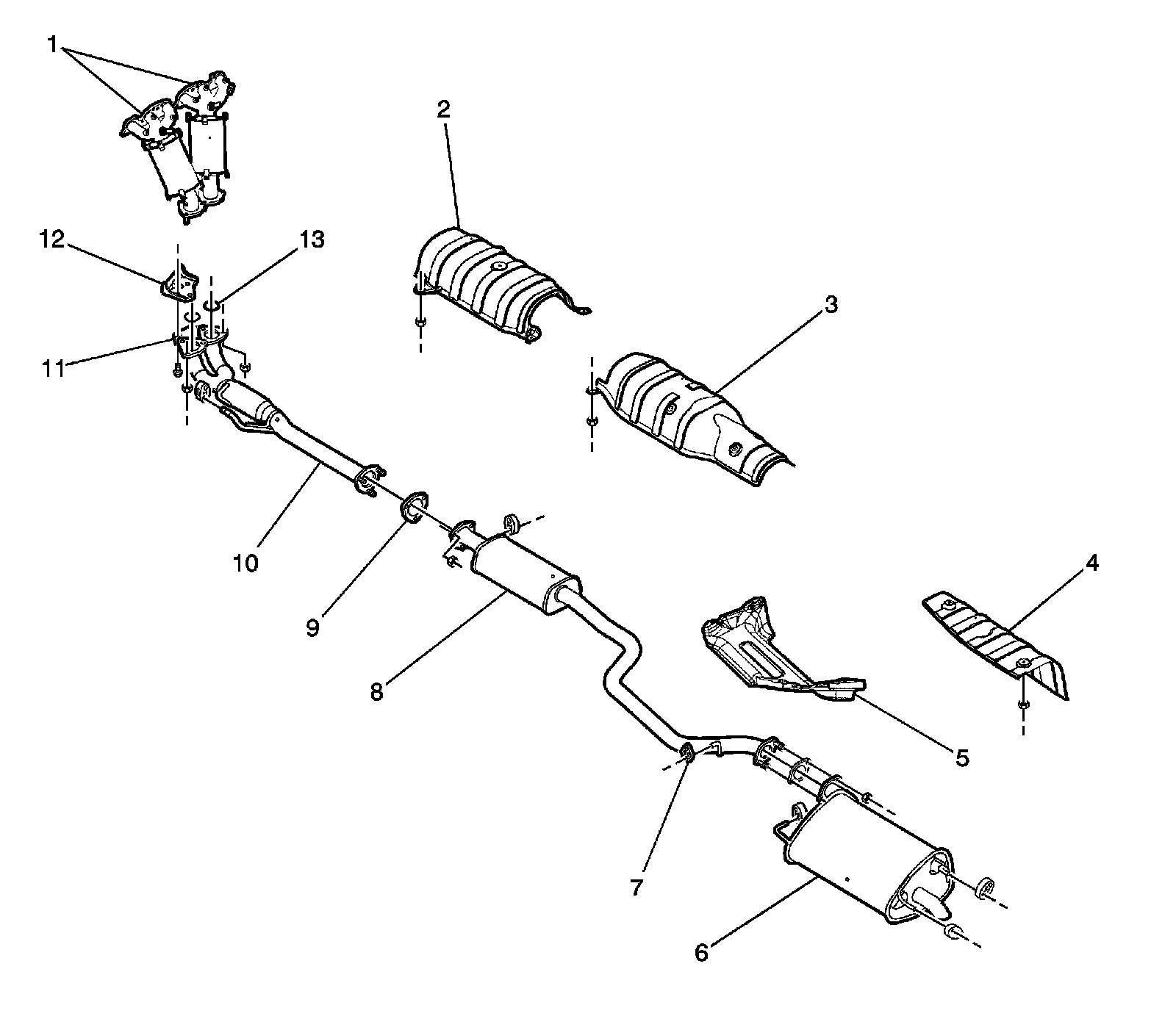

Engine Exhaust System Component Views (2.5L)

1 - Exhaust Manifold

2 - Exhaust Front Pipe Protective Shield

3 - Exhaust Front Muffler Protective Shield

4 - Exhaust Rear Muffler Protective Shield

5 - Fuel Tank Shield

6 - Exhaust Rear Muffler

7 - Rubber Hanger

8 - Exhaust Front Muffler

9 - Exhaust Front Pipe-to-Exhaust Front Muffler Gasket

10 - Exhaust Front Pipe

11 - Exhaust Lower Bracket

12 - Exhaust Upper Bracket

13 - Catalytic Converter Gasket
