Ambient Temperature Sensor / Switch HVAC: Service and Repair




Ambient Air Temperature Sensor Replacement

Removal Procedure





Caution:
Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

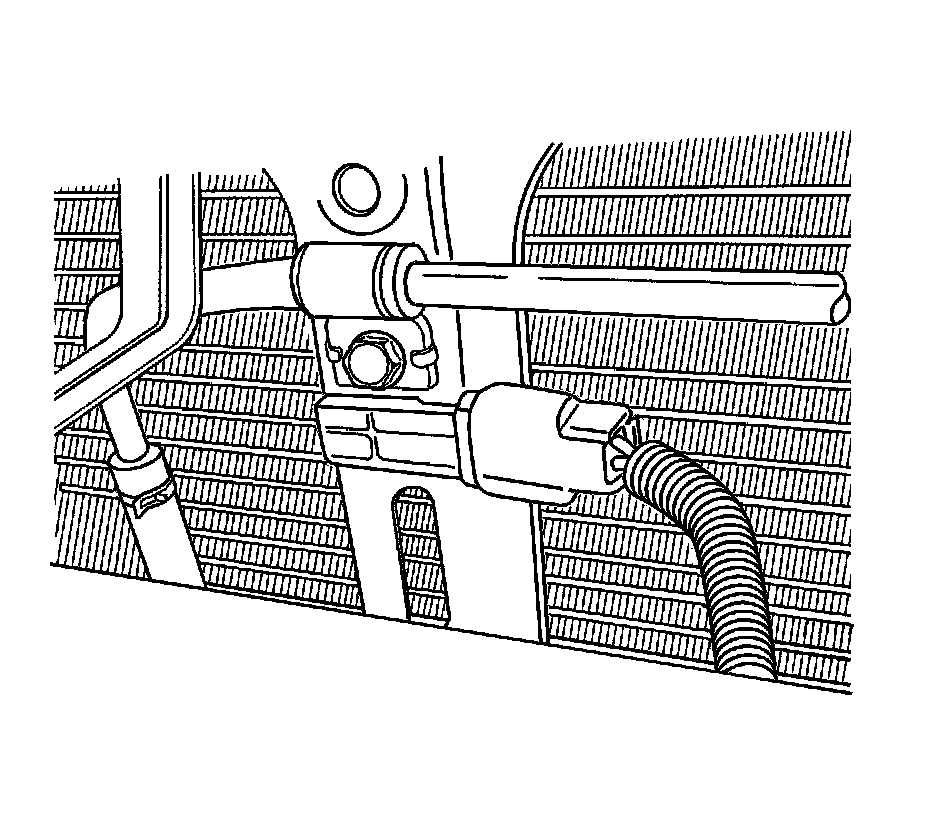

2. Disconnect the ambient air temperature sensor electrical connector.

3. Remove the retaining nut from the bracket.

4. Remove the ambient air temperature sensor.

Installation Procedure





1. Position the ambient air temperature sensor into its bracket.

Notice:
Refer to Fastener Notice Fastener Notice.

2. Install the retaining nut to the bracket.

Tighten the ambient air temperature retaining bracket nut to 6 Nm (53 lb in).

3. Connect the electrical connector.

4. Connect the negative battery cable.
