Brake Light Switch: Service and Repair
Stop Lamp Switch ReplacementRemoval Procedure 1.

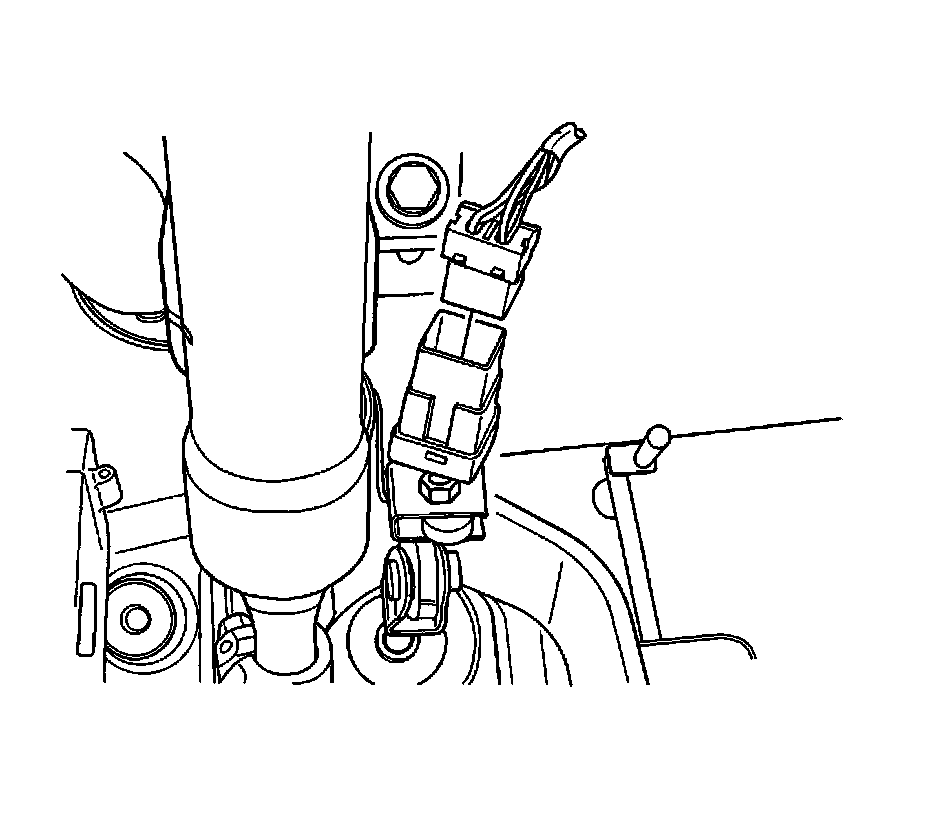

Turn the stop lamp switch connector assembly clockwise and remove it from the brake pedal bracket.
2.

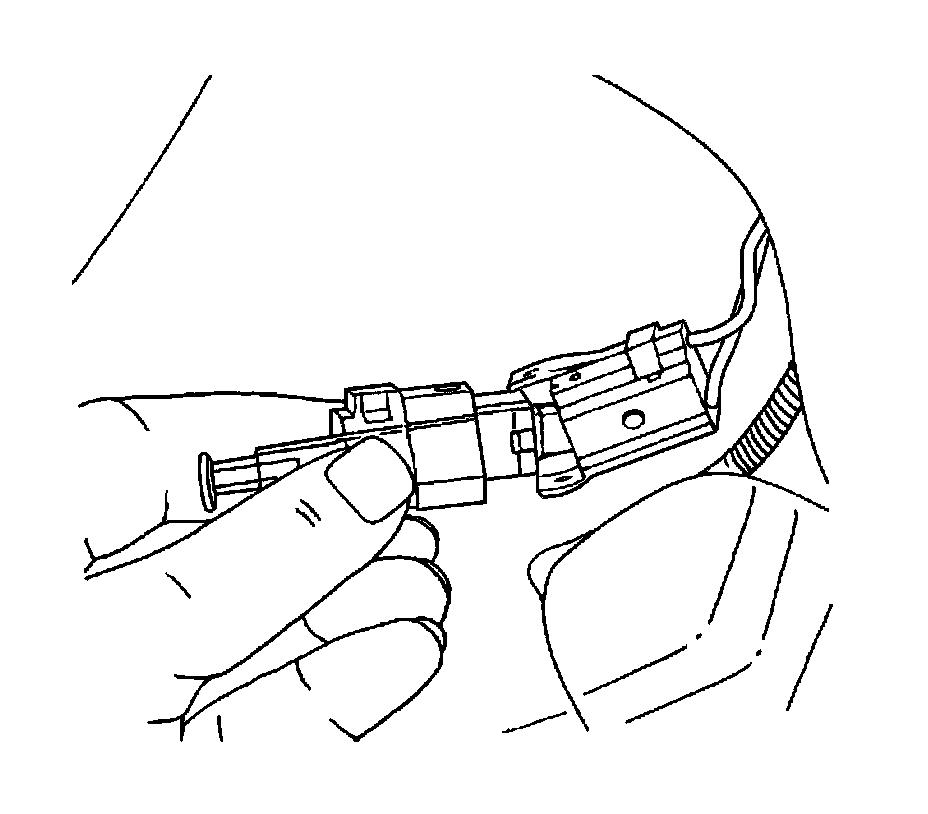

Separate the stop lamp switch from the connector.
Installation Procedure 1.
Place the stop lamp switch into the connector.
2.
Twist the stop lamp switch connector assembly into the brake pedal bracket hole.
