Manifold Pressure/Vacuum Sensor: Service and Repair




Manifold Absolute Pressure Sensor Replacement

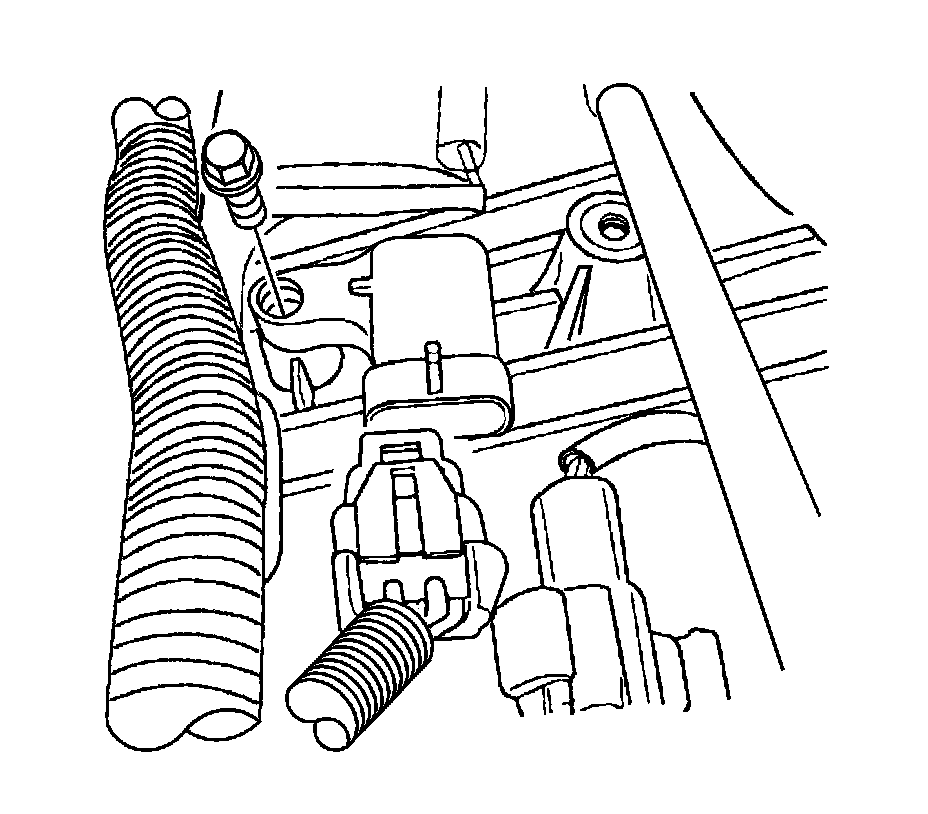

Removal Procedure





Caution:
Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

2. Disconnect the manifold absolute pressure (MAP) sensor connector.

3. Remove the MAP sensor.

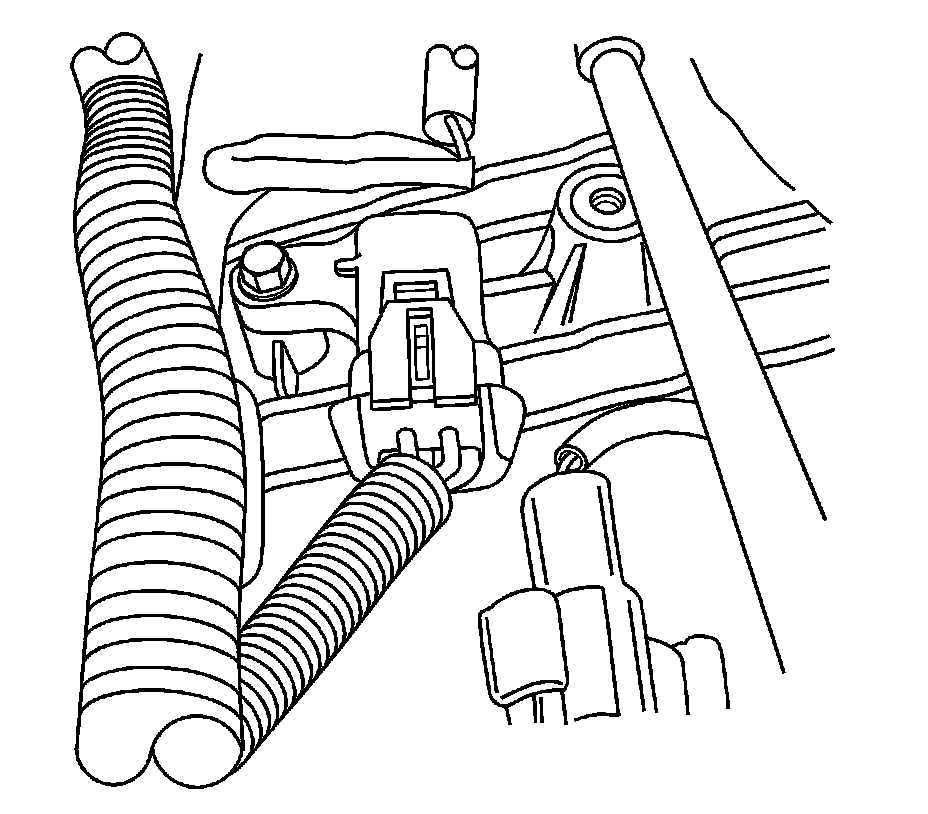

Installation Procedure





Notice:
Refer to Fastener Notice Fastener Notice.

1. Install the MAP sensor.

Tighten the MAP sensor to 8 Nm (71 lb in).

2. Connect the MAP sensor connector.

3. Connect the negative battery cable.
