Ignition Coil: Service and Repair




Ignition Coil Replacement

Removal Procedure





Caution:
Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

2. Disconnect the ignition coil wiring harness connectors.

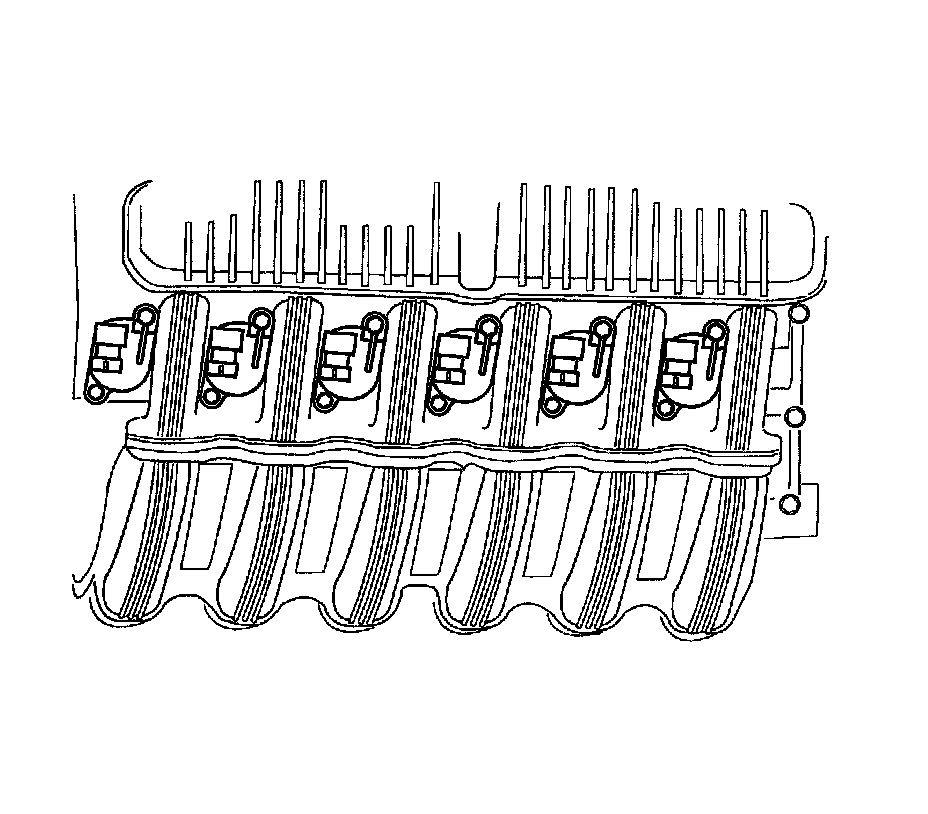

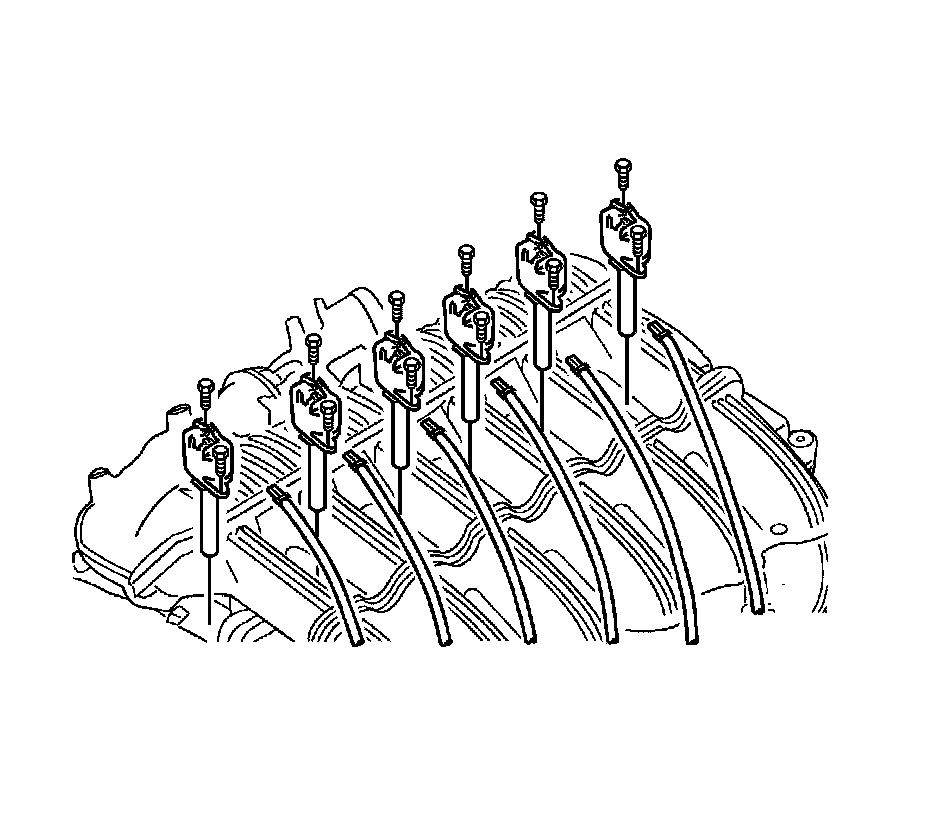

3. Remove the ignition coils.

Installation Procedure





Notice:
Refer to Fastener Notice Fastener Notice.

1. Install the ignition coils.

Tighten the ignition coil retaining bolts to 7 Nm (62 lb in).

2. Connect the ignition coil wiring harness connectors.

3. Connect the negative battery cable.
