Harness Routing Views
Harness Routing Views

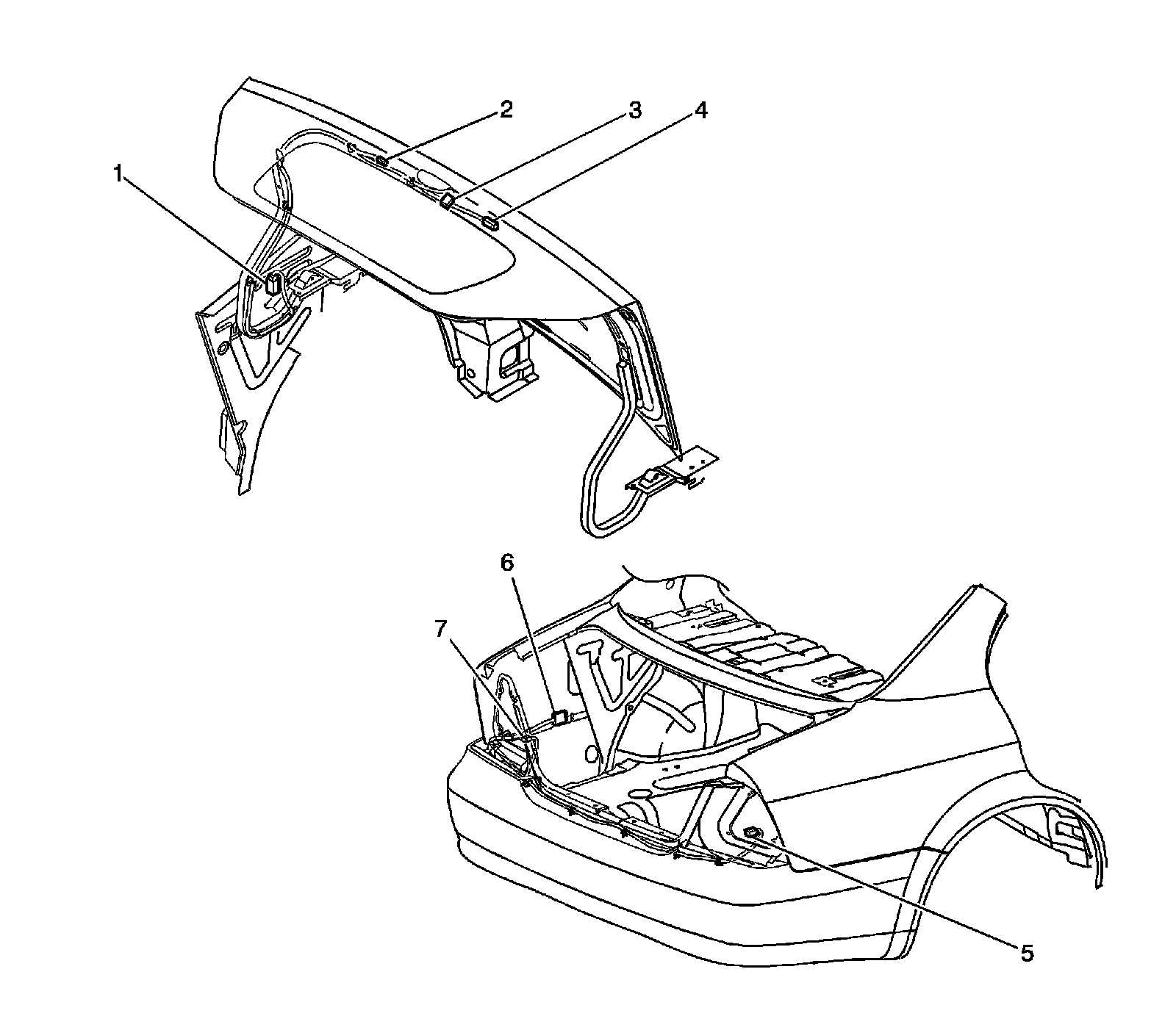

Rear Harness Routing
1 - C402
2 - License Lamp- Left Hand
3 - To Rear Compartment Lid Ajar Switch
4 - License Lamp- Right Hand
5 - Tail Lamp- Right Hand
6 - C401
7 - Tail Lamp- Left Hand

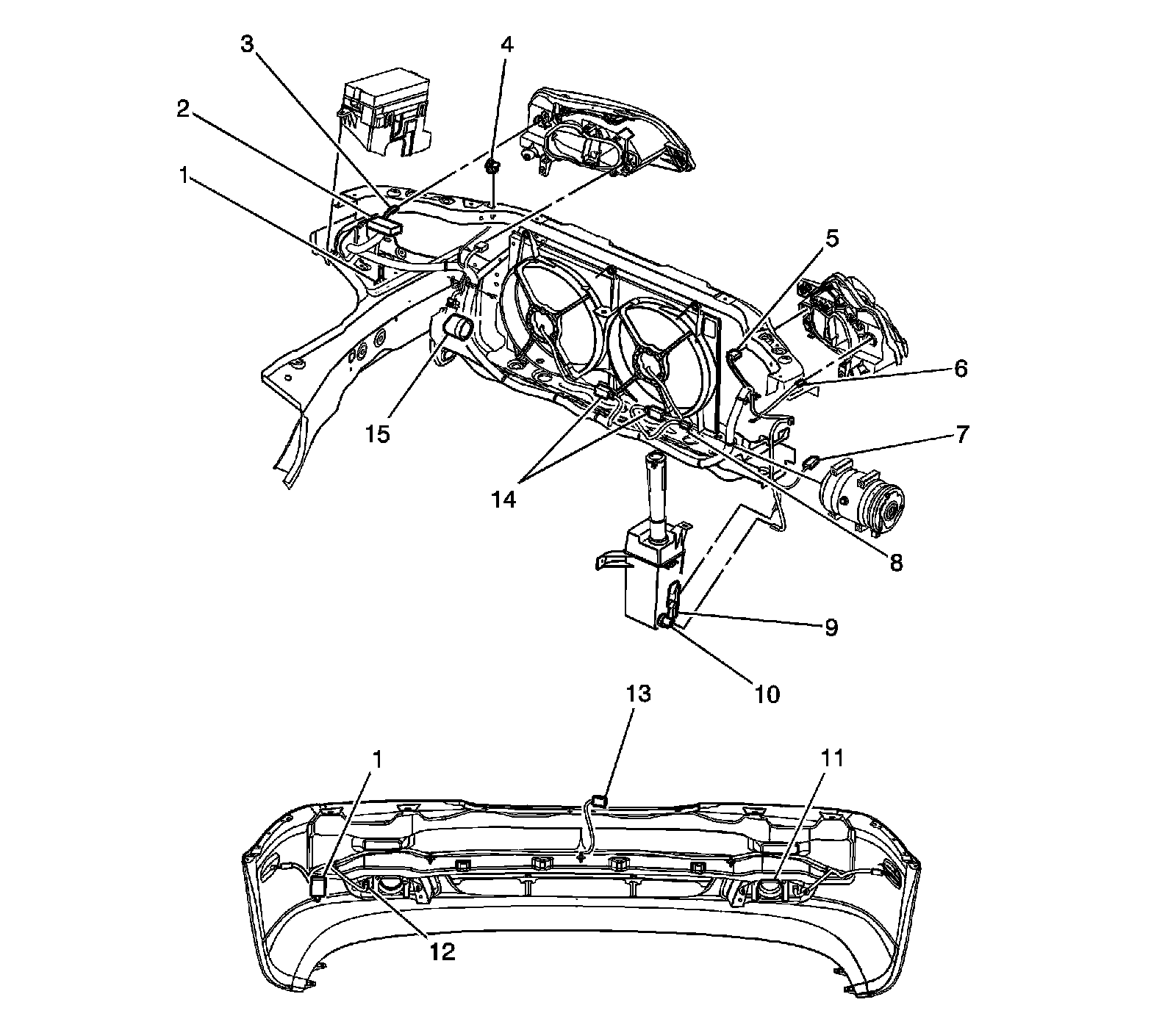

Front Harness Routing
1 - C108
2 - C101
3 - Lamp Position and Turn/Signal - Left Hand
4 - Hood Ajar Switch
5 - Headlamp - Right Hand
6 - Lamp Position and Turn/Signal - Right Hand
7 - To Horn
8 - Compressor
9 - Washer Pump Motor
10 - Washer Fluid Sensor
11 - Front Fog Lamp - Right Hand
12 - Front Fog Lamp - Left Hand
13 - Ambient Temperature Sensor
14 - Cooling Fan
15 - Theft Deterrent Alarm

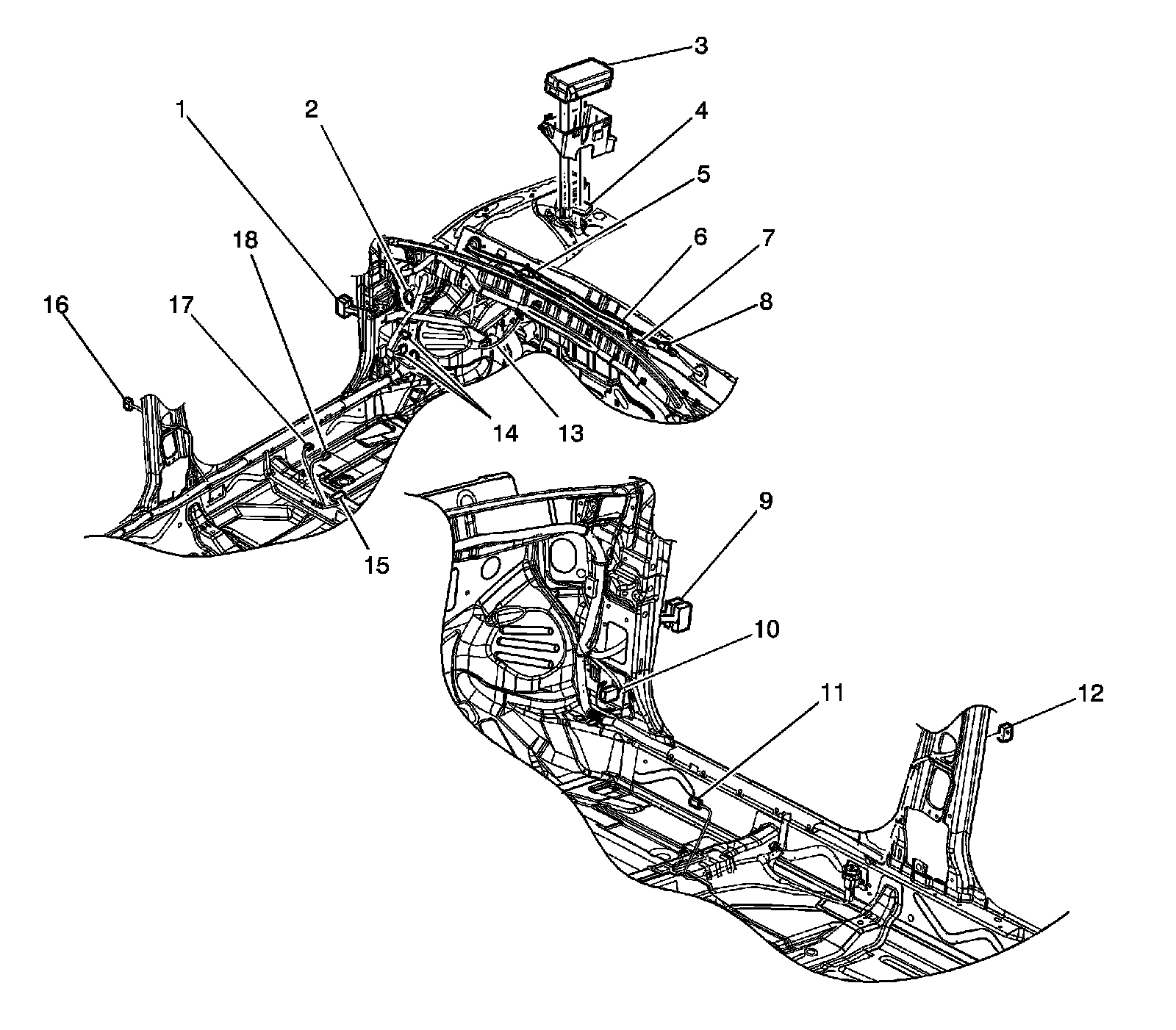

Body Harness Routing
1 - C351/C352
2 - S302
3 - Underhood Fuse Block
4 - C102
5 - Wiper Motor
6 - Body Wiring Harness
7 - C107
8 - C110
9 - C361/C362
10 - C218
11 - Heated Seat Element- Right Hand
12 - C381
13 - Brake Switch
14 - Body Control Module (BCM)
15 - G302
16 - C371
17 - Power Seat
18 - Heated Seat Element- Left Hand

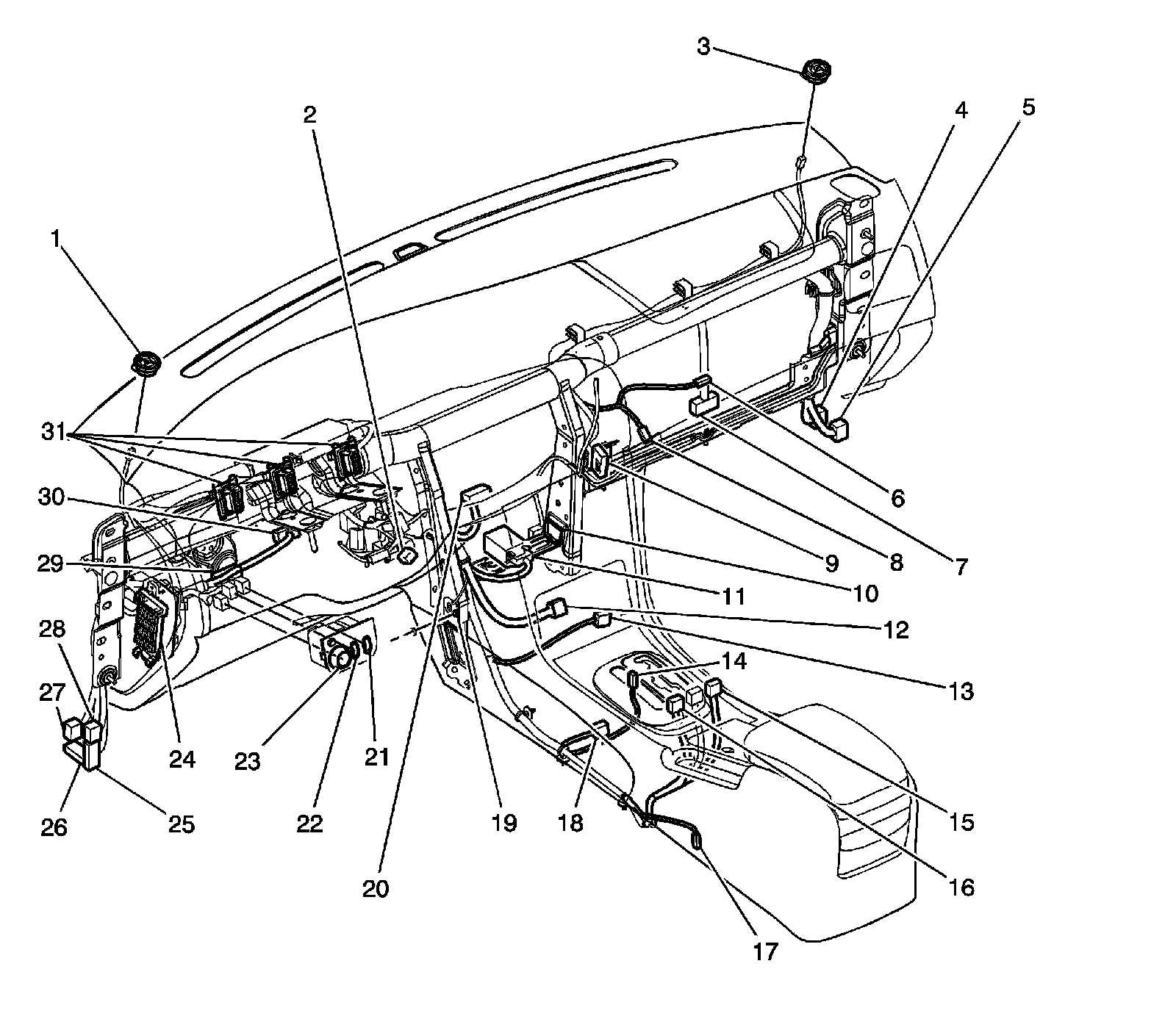

IP Harness Routing
1 - Speaker - Left Hand
2 - Data Link Connector
3 - Speaker - Right Hand
4 - C218
5 - C219
6 - IP Compartment Lamp
7 - C217
8 - IP Compartment Lamp Switch
9 - S204
10 - S203
11 - Daytime Running Lamp (DRL) Module
12 - C216
13 - Auxiliary Power Outlet
14 - Shift Indicator Lamp
15 - Hold Switch
16 - Traction Control System (TCS) Switch
17 - Park Brake Switch
18 - Automatic Transmission Switch Lock Solenoid
19 - G201
20 - Radio
21 - Headlamp Switch
22 - Dimmer Control Switch
23 - Mirror Control Switch
24 - Instrument Panel (I/P) Fuse Block
25 - C209
26 - C208
27 - C207
28 - C210
29 - Body Control Module (BCM)
30 - C211
31 - Instrument Cluster

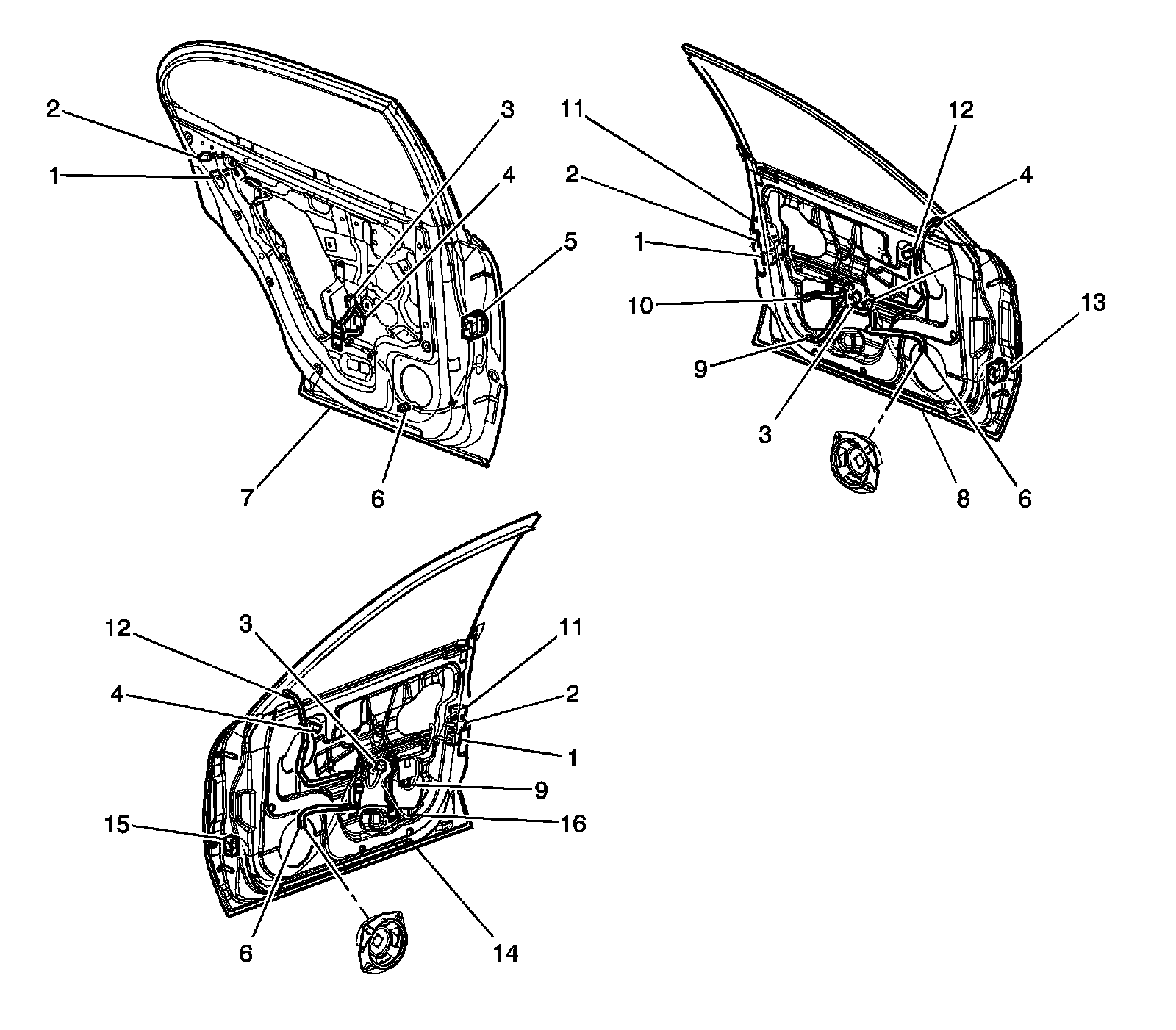

Door Harness Routing
1 - Door Lock Solenoid (Part of Door Latch)
2 - Door Contact Switch (Part of Door Latch)
3 - Power Window Switch
4 - Power Window Motor
5 - C371/C381
6 - Speaker
7 - Rear Door
8 - Front Door, Driver Side
9 - Stop Lamp
10 - Rear Compartment Lid Release Switch
11 - Door Tamper Switch (Part of Door Latch)
12 - Outside Mirror
13 - C351/C352
14 - Front Door, Passenger Side
15 - C361/C362
16 - Folding Mirror Module
