Front Side Door Window Replacement

Front Side Door Window Replacement

Removal Procedure





1. Remove the door seal trim. Refer to Door Bottom Auxiliary Sealing Strip Replacement Door Bottom Auxiliary Sealing Strip Replacement.

2. Remove the front door body side molding. Refer to Front Side Door Molding Replacement in Exterior Trim.

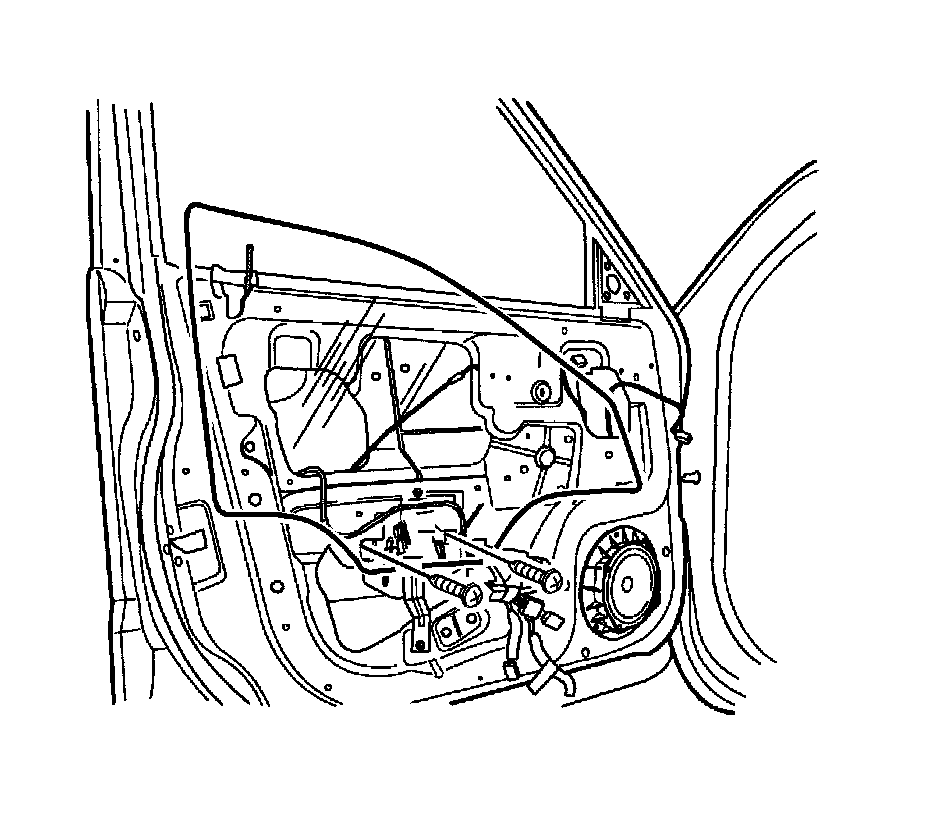

3. Remove the screws that secure the glass to the window regulator.

4. Remove the glass from the door.

Installation Procedure





1. Install the glass in the door and position the glass within the window regulator.

Notice:
Refer to Fastener Notice Fastener Notice in Cautions and Notices.

2. Install the glass to the window regulator with the screws.

Tighten the glass screws to 7 Nm (62 lb in).

3. Install the front door body side molding. Refer to Front Side Door Molding Replacement in Exterior Trim.

4. Install the door seal trim. Refer to Door Bottom Auxiliary Sealing Strip Replacement Door Bottom Auxiliary Sealing Strip Replacement.
