Wiper and Washer Systems: Locations

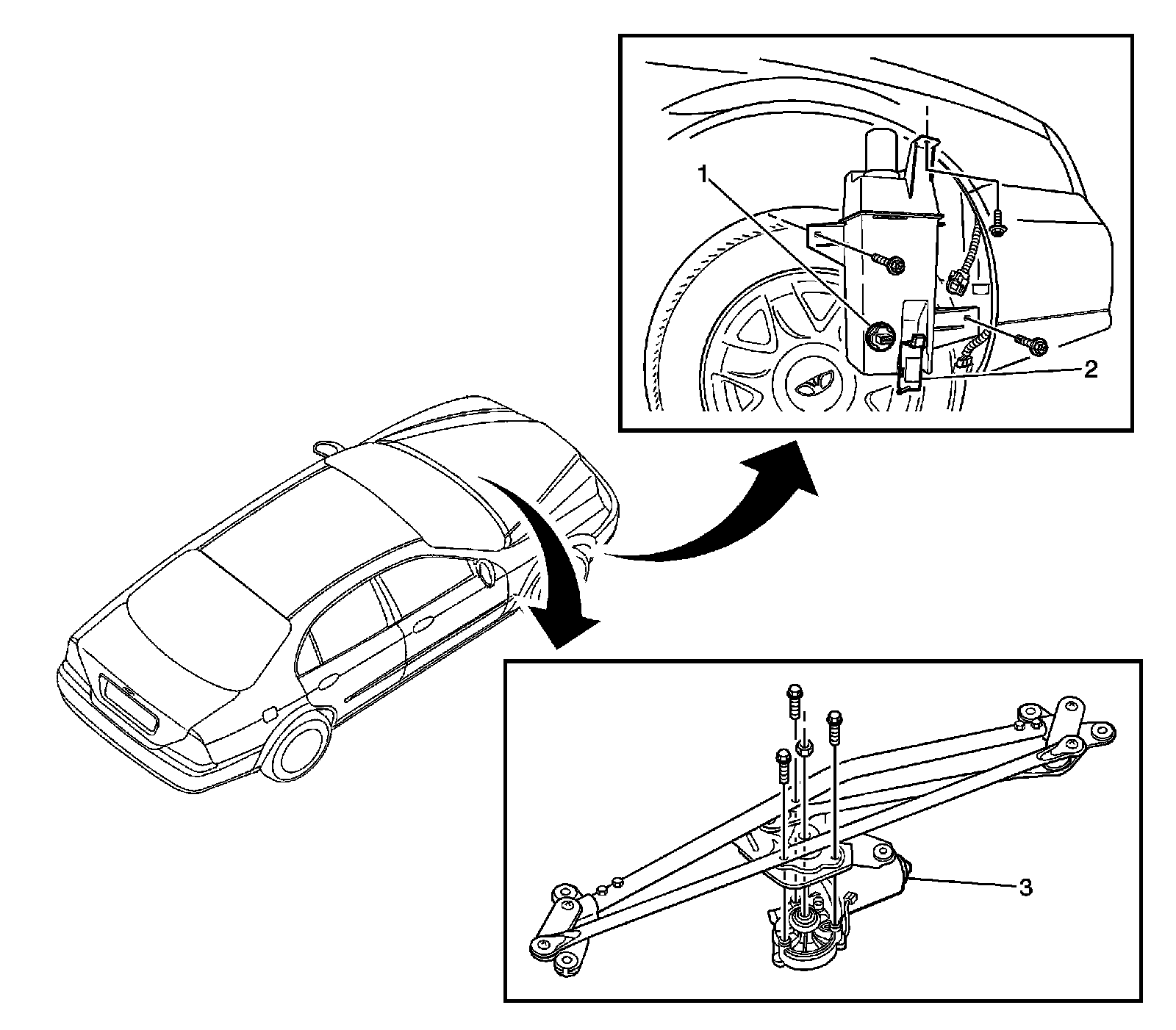

Wiper/Washer Component Views

Wiper Motor and Pump

1 - Washer Solvent Container Level Sensor

2 - Windshield Washer Fluid Pump - Front

3 - Windshield Wiper Motor

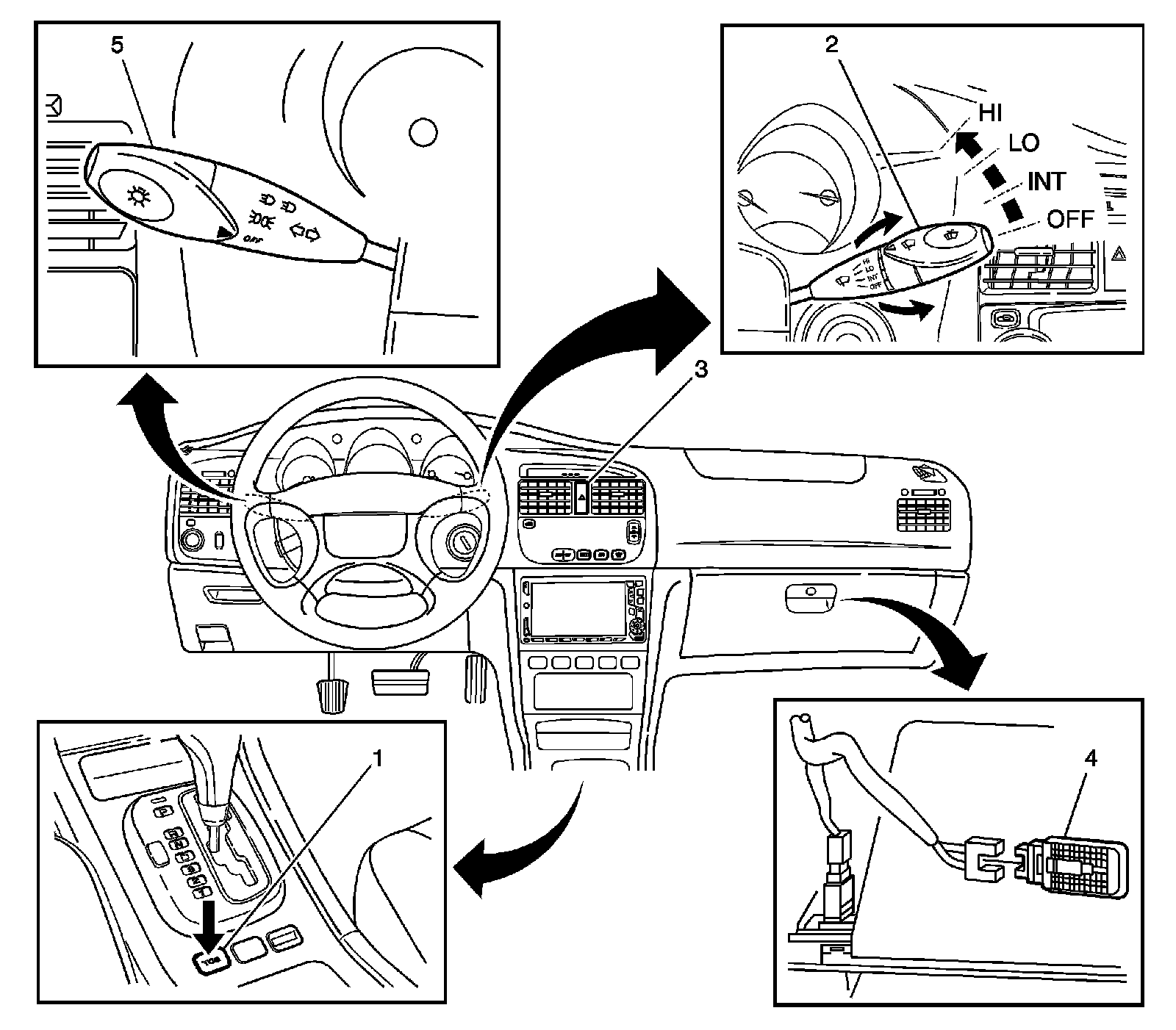

Wiper Switch

1 - Traction Control Switch

2 - Windshield Wiper/Washer Switch

3 - Hazard Switch

4 - I/P Compartment Lamp/Switch

5 - Headlamp Switch, Turn Signal/ Multifunction Switch
