Input Speed Sensor Replacement

Input Speed Sensor Replacement

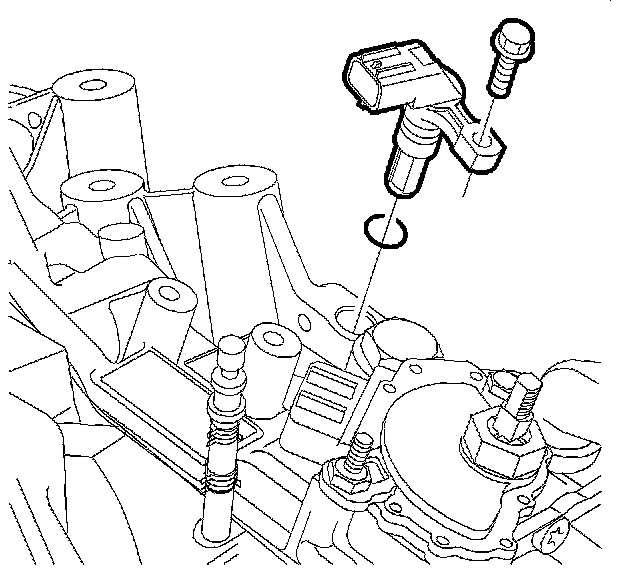

Removal Procedure
1. Remove the battery tray .





2. Disconnect the wiring harness (4) from the input speed sensor.





3. Remove the input speed sensor bolt.
4. Remove the input speed sensor.
5. Remove the input speed sensor O-ring. Discard the O-ring.

Installation Procedure





1. Apply GM T-IV automatic transaxle fluid GM P/N 88900925 to the new input speed sensor O-ring.
2. Install the new input speed sensor O-ring onto the input speed sensor.
3. Install the input speed sensor to the transaxle .

4. Notice: Refer to Fastener Notice in Service Precautions.

Install the input speed sensor bolt.
^ Tighten the bolt to 6 Nm (53 inch lbs.).





5. Connect the wiring harness (4) to the input speed sensor.
6. Install the battery tray .
