Front Seat Back Replacement




Front Seat Back Replacement

Removal Procedure





1. Remove the front bucket seat from the vehicle. Refer to Front Seat Replacement - Bucket Front Seat Replacement - Bucket.

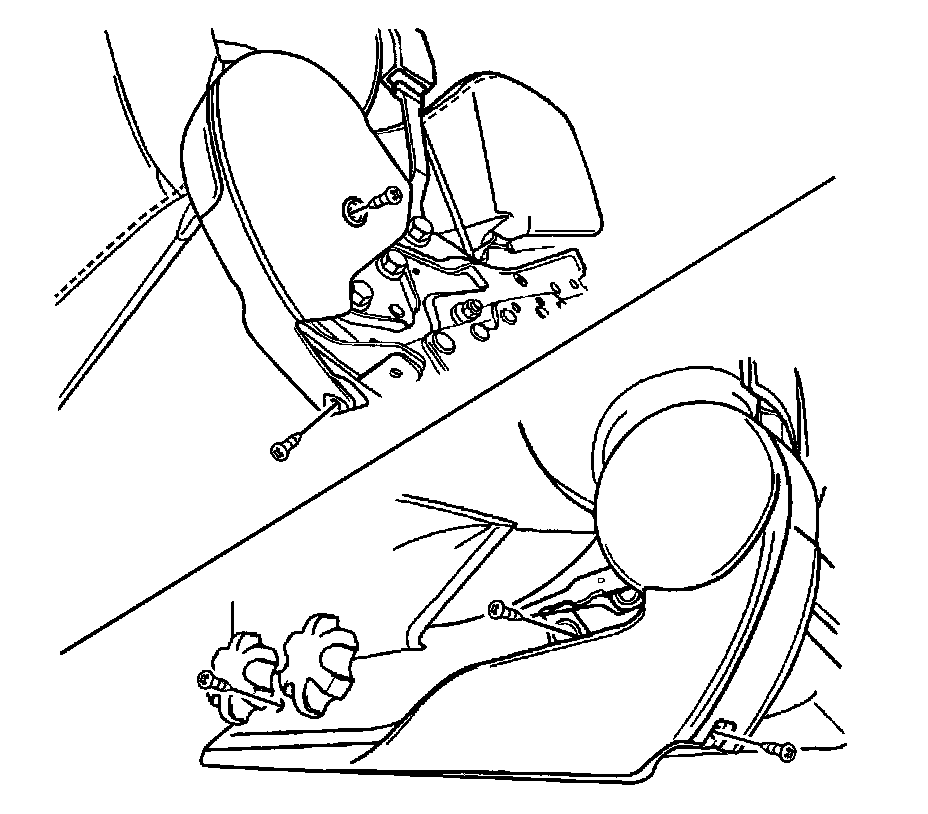

2. Remove the each seat trim.





3. Disconnect the electrical connectors.

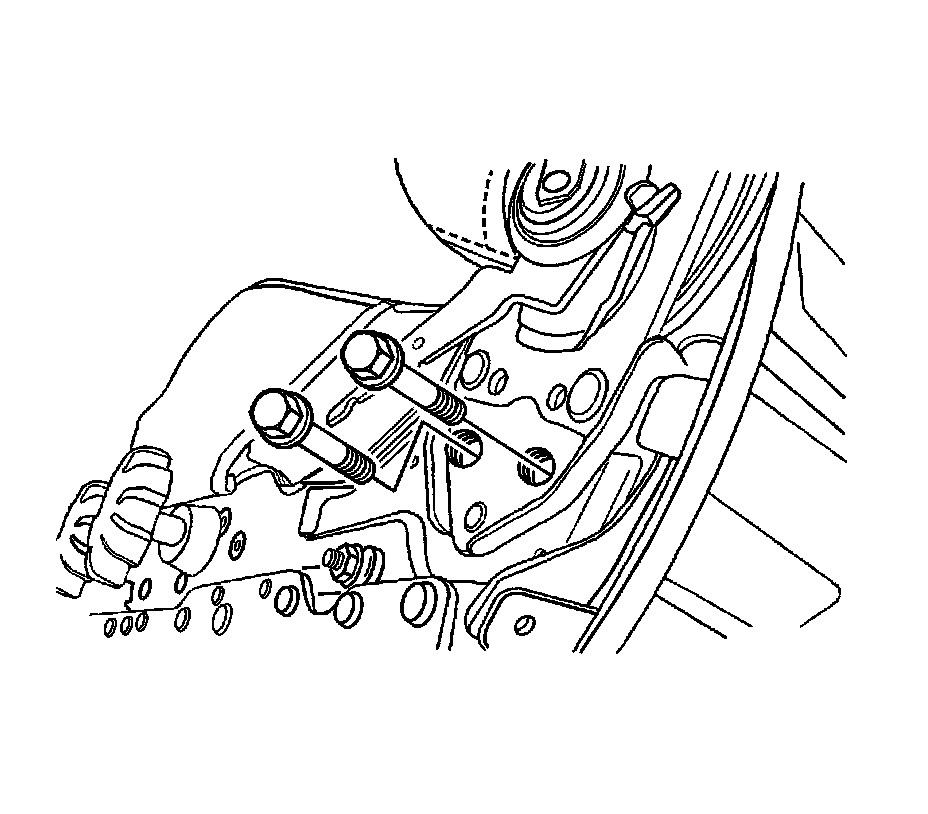

4. Remove the bolts and the seatback.

Installation Procedure





1. Install the seatback onto the seat cushion.

Notice:
Refer to Fastener Notice Fastener Notice.

2. Install the front seatback bolts.

Tighten the front seatback bolts to 45 Nm (33 lb ft).

3. Connect the electrical connectors.





4. Install the seat trims to its original position.

5. Install the front bucket seat in the vehicle. Refer to Front Seat Replacement - Bucket Front Seat Replacement - Bucket.
