Front Seat Replacement - Bucket




Front Seat Replacement - Bucket

Removal Procedure





Caution:
Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable

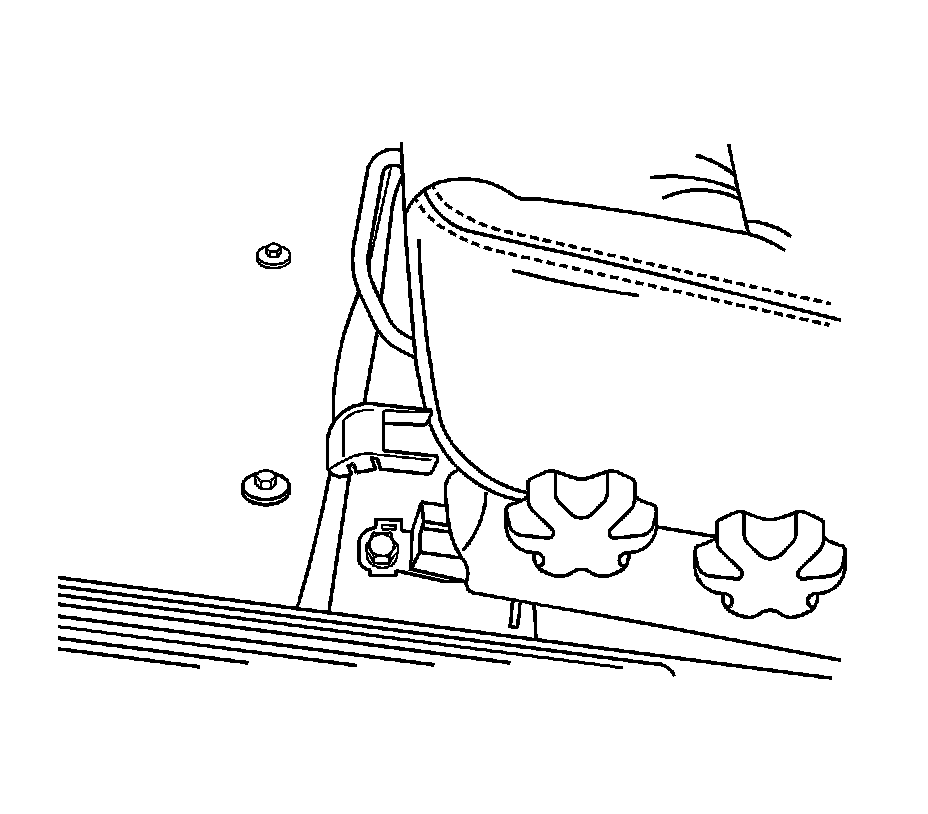

2. Remove the plastic caps and the bolts securing the rear portion of the front seat to the floor.





3. Remove the plastic caps and the bolts securing the front portion of the front seat to the floor.

4. Disconnect the electrical connectors.

5. Remove the seat.

Installation Procedure





1. Install the seat.

2. Connect the electrical connectors.

Notice:
Refer to Fastener Notice Fastener Notice.

3. Install the bolts into the front portion of the front seat.

Tighten the front seat-to-floor bolts to 25 Nm (18 lb ft).

4. Install the plastic caps.





5. Install the bolts into the rear portion of the front seat.

Tighten the front seat-to-floor bolts to 25 Nm (18 lb ft).

6. Install the plastic caps.

7. Connect the negative battery cable.
