Rear Seat Armrest Replacement
Rear Seat Armrest ReplacementRemoval Procedure 1.
Lower the rear seatbacks.
2.

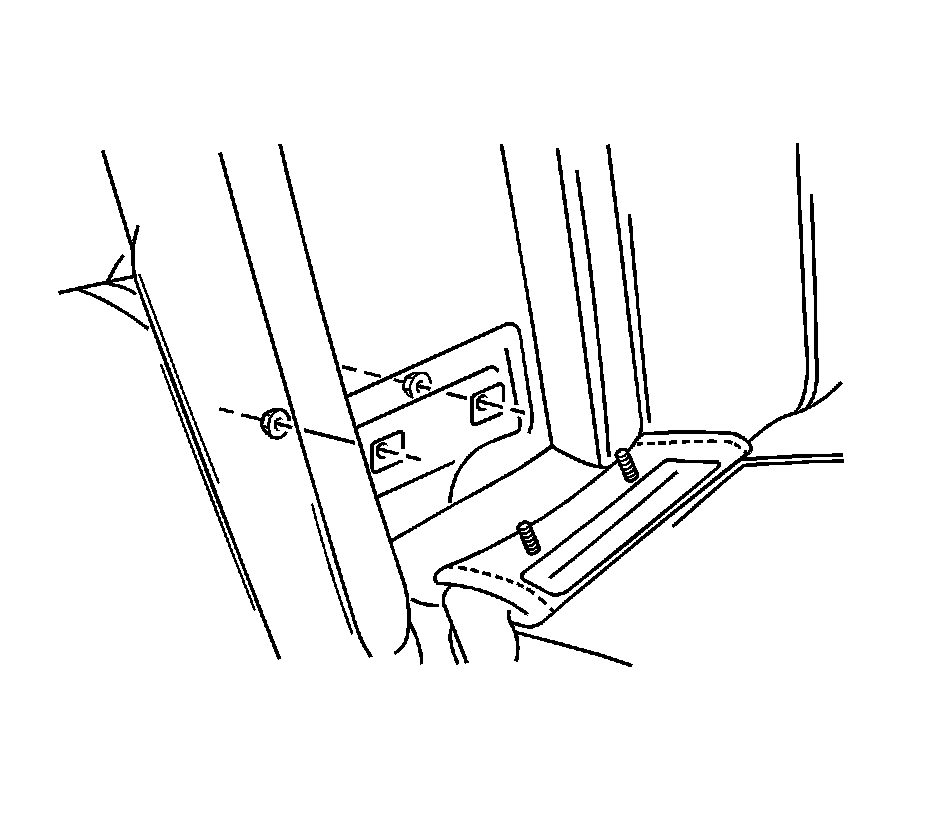

Remove the nuts and the armrest.
Installation Procedure Notice: Refer to Fastener Notice
Fastener Notice.
1.
Install the armrest with the nuts.
Tighten the armrest nuts to 24 Nm (18 lb ft). 2.
Raise and secure the rear seatbacks in the upright position.
