Door Weatherstrip Replacement

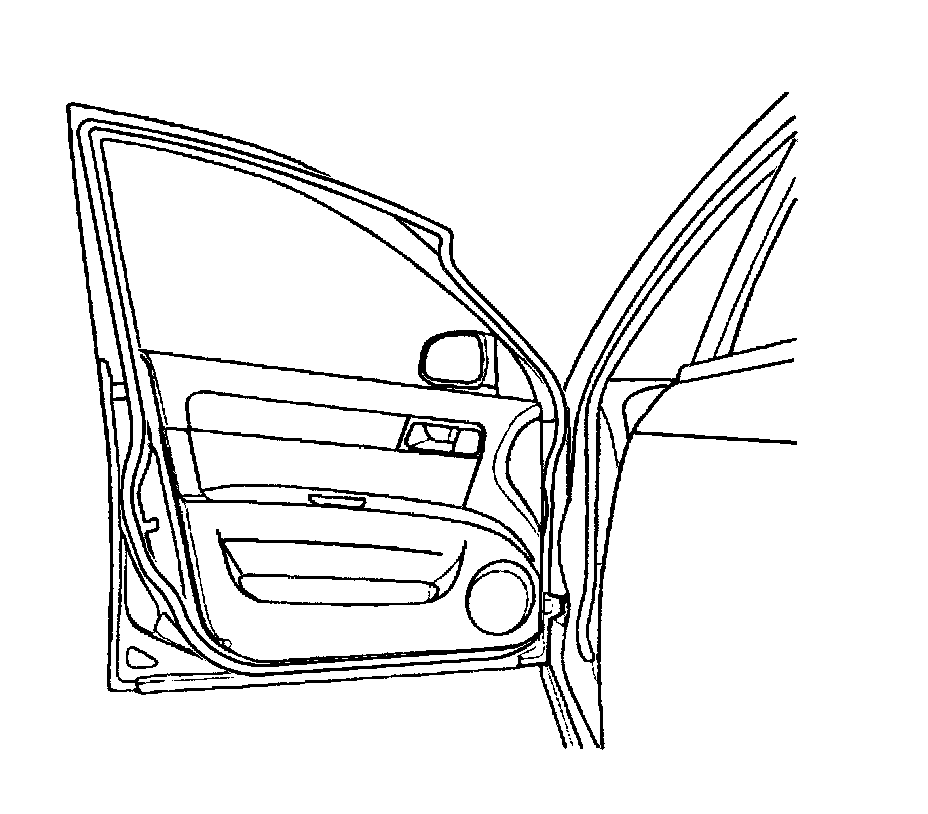

Door Weatherstrip ReplacementRemoval Procedure 1.
Remove the door hold-open link-to-body bolt and the door hold-open link.
2.
Remove the door
weatherstripInstallation Procedure 1.
Install the door
weatherstrip Notice: Refer to Fastener Notice
Fastener Notice.
2.
Install the door hold-open link to the body with the bolt.
Tighten the door hold-open link-to-body bolt to 25 Nm (18 lb ft).
